IChartSeriesPoint.Visible Property

Specifies a series point’s visibility.

Namespace: DevExpress.Blazor

Assembly: DevExpress.Blazor.v24.2.dll

NuGet Package: DevExpress.Blazor

#Declaration

C#
bool Visible { get; set; }

#Property Value

Type Description
Boolean

true if a series point is visible; otherwise, false.

#Remarks

A Chart point’s visibility is specified by the Visible. You can override this value for individual points. For this purpose, handle the CustomizeSeriesPoint event and use the PointAppearance.Visible property to set the new visibility state.

The following code snippet demonstrates how to:

Razor
<DxChart Data="@WeatherForecasts" CustomizeSeriesPoint="@PreparePoints">
    <DxChartLineSeries SummaryMethod="@(i => (int)i.Average())"
                       Color="@System.Drawing.Color.Gray"
                       ValueField="@((WeatherForecast i) => i.TemperatureF)"
                       ArgumentField="@(i => i.Date.Date)"
                       Name="Temperature, F">
        <DxChartSeriesPoint Symbol="ChartPointSymbol.Cross" Color="System.Drawing.Color.Gray" Size="15" />
    </DxChartLineSeries>
</DxChart>

@code {
    WeatherForecast[] WeatherForecasts;
    ...
    protected void PreparePoints(ChartSeriesPointCustomizationSettings pointSettings) {
        double value = (double)pointSettings.Point.Value;
        if (value < 75)
            pointSettings.PointAppearance.Visible = false;
    }
}

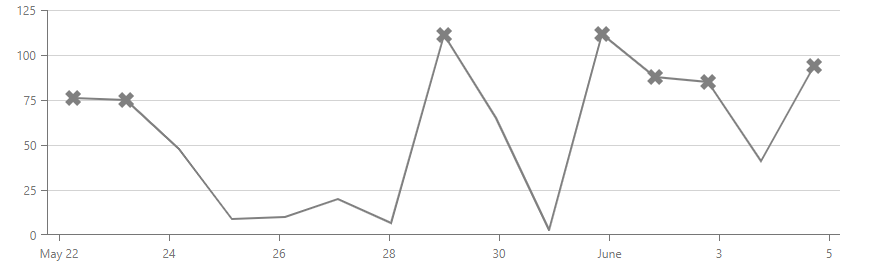

Charts - Series point visibility

Run Demo: Charts - Series Point Customization
