GridDocumentExportSummaryItemBase.FieldName Property

Returns a field name whose values are used to calculate the summary.

Namespace: DevExpress.Blazor

Assembly: DevExpress.Blazor.v25.1.dll

NuGet Package: DevExpress.Blazor

Declaration

public string FieldName { get; }

Property Value

Type	Description
String	A field name.

Remarks

When exporting Grid/TreeList data to PDF, handle the CustomizeCell event to customize table cells in the output file. Use the SummaryItems property to obtain information about summaries displayed in the processed cell.

Grid Example

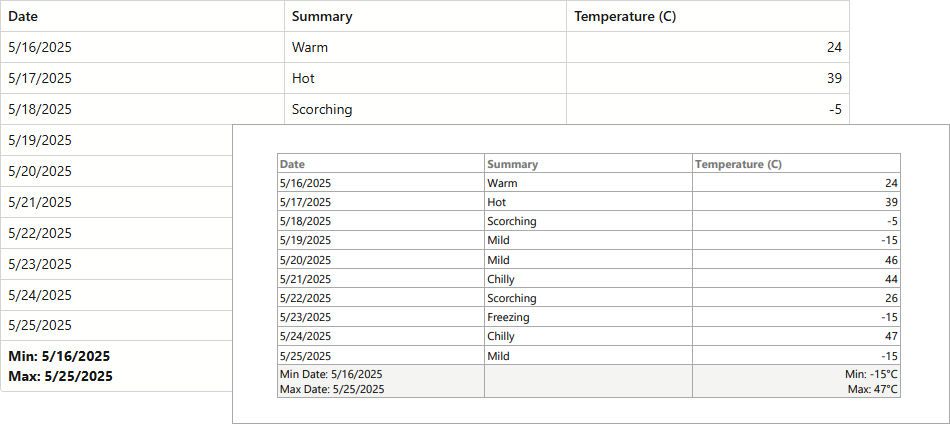

The following example customizes the text and formatting of summaries in the exported document:

Razor

@rendermode InteractiveServer
@using DevExpress.Drawing;
@inject WeatherForecastService ForecastService

<DxGrid @ref="Grid" Data="@forecasts">
    <Columns>
        <DxGridDataColumn Caption="Date" FieldName="Date" ExportWidth="500" />
        <DxGridDataColumn Caption="Temperature (C)" FieldName="TemperatureC" />
        <DxGridDataColumn Caption="Temperature (F)" FieldName="TemperatureF" />
        <DxGridDataColumn Caption="Summary" FieldName="Summary" />
    </Columns>
    <TotalSummary>
        <DxGridSummaryItem SummaryType="GridSummaryItemType.Min" FieldName="Date" />
        <DxGridSummaryItem SummaryType="GridSummaryItemType.Max" FieldName="Date" />
        <DxGridSummaryItem SummaryType="GridSummaryItemType.Min" FieldName="TemperatureC" />
        <DxGridSummaryItem SummaryType="GridSummaryItemType.Max" FieldName="TemperatureC" />
    </TotalSummary>
    <ToolbarTemplate>
        <DxToolbar>
            <DxToolbarItem Text="Export to PDF" Click="ExportPdf_Click" BeginGroup="true" />
        </DxToolbar>
    </ToolbarTemplate>
</DxGrid>

@code {
    IGrid Grid;
    private WeatherForecast[]? forecasts;

    protected override async Task OnInitializedAsync() {
        forecasts = await ForecastService.GetForecastAsync(DateOnly.FromDateTime(DateTime.Now));
    }
    async Task ExportPdf_Click() {
        await Grid.ExportToPdfAsync("ExportResult", new GridPdfExportOptions() {
            CustomizeCell = OnCustomizeCell,
        });
    }
    void OnCustomizeCell(GridDocumentExportCustomizeCellEventArgs args) {
        if (args.AreaType == DocumentExportAreaType.TotalFooter ) {
            if (args.ColumnFieldName == "Date") {
                var sum1 = args.SummaryItems[0];
                var sum2 = args.SummaryItems[1];
                args.Text = sum1.SummaryType + " " + sum1.FieldName + ": " + sum1.Value;
                args.Text += "\n" + sum2.SummaryType + " " + sum2.FieldName + ": " + sum2.Value;
            }
            if (args.ColumnFieldName == "TemperatureC") {
                args.Text = args.SummaryItems[0].Text + "°C\n" + args.SummaryItems[1].Text + "°C";
                args.ElementStyle.TextAlignment = DevExpress.XtraPrinting.TextAlignment.MiddleRight;
            }
        }
        args.Handled = true;
    }
}

WeatherForecast.cs

using System;

public class WeatherForecast {
    public DateTime Date { get; set; }
    public int TemperatureC { get; set; }
    public string Forecast { get; set; }
    public string CloudCover { get; set; }
}

WeatherForecastService.cs

using System;
using System.Collections.Generic;
using System.Linq;
using System.Threading;
using System.Threading.Tasks;

public class WeatherForecastService {
    private List<WeatherForecast> Forecast { get; set; }

    private static string[] CloudCover = new[] {
        "Sunny", "Partly cloudy", "Cloudy", "Storm"
    };

    Tuple<int, string>[] ConditionsForForecast = new Tuple<int, string>[] {
        Tuple.Create( 22 , "Hot"),
        Tuple.Create( 13 , "Warm"),
        Tuple.Create( 0 , "Cold"),
        Tuple.Create( -10 , "Freezing")
    };

    public WeatherForecastService() {
        Forecast = CreateForecast();
    }

    private List<WeatherForecast> CreateForecast() {
        var rng = new Random();
        DateTime startDate = DateTime.Now;
        return Enumerable.Range(1, 30).Select(index => {
            var temperatureC = rng.Next(-10, 30);
            return new WeatherForecast {
                Date = startDate.AddDays(index),
                TemperatureC = temperatureC,
                CloudCover = CloudCover[rng.Next(0, 4)],
                Forecast = ConditionsForForecast.First(c => c.Item1 <= temperatureC).Item2
            };
        }).ToList();
    }

    public List<WeatherForecast> GetForecast() {
        return Forecast;
    }

    public Task<WeatherForecast[]> GetForecastAsync(CancellationToken ct = default) {
        return Task.FromResult(Forecast.ToArray());
    }
}

Program.cs

// ...
builder.Services.AddSingleton<WeatherForecastService>();

TreeList Example

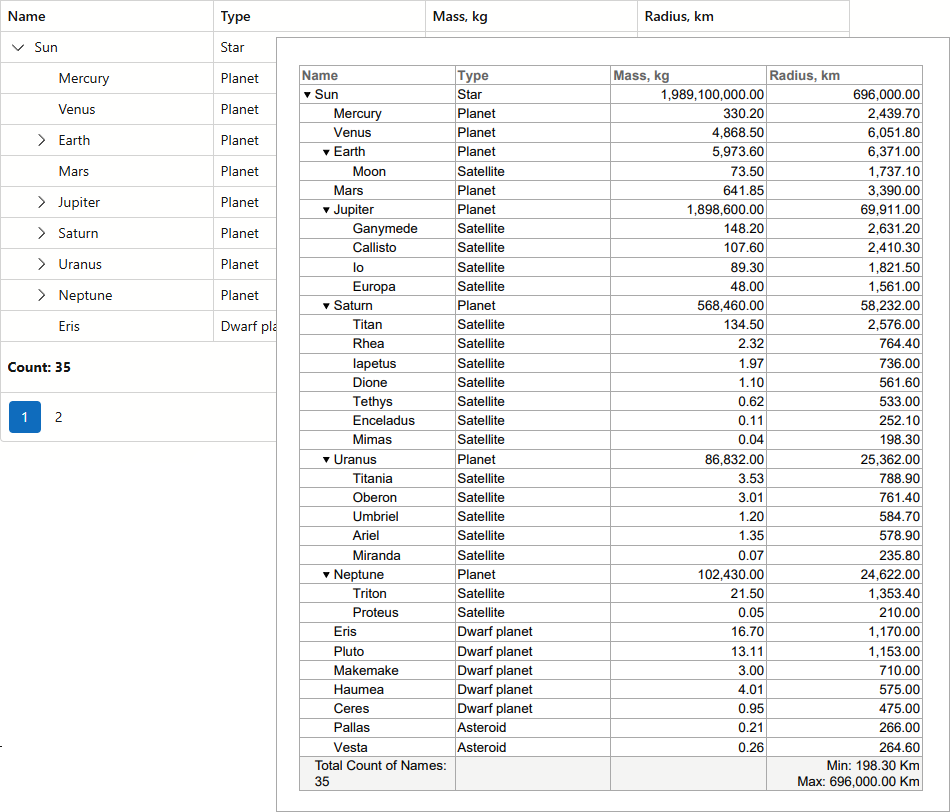

The following example customizes the text and formatting of summaries in the exported document:

Razor

@rendermode InteractiveServer
@using DevExpress.Drawing
@inject SpaceObjectDataProvider SpaceObjectDataProvider

<DxTreeList @ref="TreeList" Data="TreeListData" ChildrenFieldName="Satellites">
    <Columns>
        <DxTreeListDataColumn FieldName="Name" />
        <DxTreeListDataColumn FieldName="TypeOfObject" Caption="Type" />
        <DxTreeListDataColumn FieldName="Mass10pow21kg" Caption="Mass, kg" DisplayFormat="N2" />
        <DxTreeListDataColumn FieldName="MeanRadiusInKM" Caption="Radius, km" DisplayFormat="N2" />
    </Columns>
    <TotalSummary>
        <DxTreeListSummaryItem SummaryType="TreeListSummaryItemType.Count" FieldName="Name" />
        <DxTreeListSummaryItem SummaryType="TreeListSummaryItemType.Min" FieldName="MeanRadiusInKM" />
        <DxTreeListSummaryItem SummaryType="TreeListSummaryItemType.Max" FieldName="MeanRadiusInKM" />
    </TotalSummary>
    <ToolbarTemplate>
        <DxToolbar>
            <DxToolbarItem Text="Export to PDF" Click="ExportPdf_Click" BeginGroup="true" />
        </DxToolbar>
    </ToolbarTemplate>
</DxTreeList>

@code {
    ITreeList TreeList { get; set; }
    object TreeListData { get; set; }
    protected override async Task OnInitializedAsync() {
        TreeListData = SpaceObjectDataProvider.GenerateData();
    }
    async Task ExportPdf_Click() {
        await TreeList.ExportToPdfAsync("ExportResult", new TreeListPdfExportOptions() {
            CustomizeCell = OnCustomizeCell,
        });
    }
    void OnCustomizeCell(TreeListDocumentExportCustomizeCellEventArgs args) {
        if (args.AreaType == DocumentExportAreaType.TotalFooter) {
            if (args.ColumnFieldName == "Name") {
                var sum = args.SummaryItems[0];
                args.Text = "Total " + sum.SummaryType + " of " + sum.FieldName + "s: " + sum.Value;
            }
            if (args.ColumnFieldName == "MeanRadiusInKM") {
                args.Text = args.SummaryItems[0].Text + " Km\n" + args.SummaryItems[1].Text + " Km";
                args.ElementStyle.TextAlignment = DevExpress.XtraPrinting.TextAlignment.MiddleRight;
            }
        }
        args.Handled = true;
    }
}

SpaceObject

using System.Collections.Generic;

public class SpaceObject {
    public string Name { get; set; }
    public double MeanRadiusInKM { get; set; }
    public double Volume10pow9KM3 { get; set; }
    public double Mass10pow21kg { get; set; }
    public double Density { get; set; }
    public double SurfaceGravity { get; set; }
    public string TypeOfObject { get; set; }
    public List<SpaceObject> Satellites { get; set; }
    public SpaceObject(
        string name,
        double meanRadiusInKM,
        double volume10pow9KM3,
        double mass10pow21kg,
        double density,
        double surfaceGravity,
        string typeOfObject,
        List<SpaceObject> satellites = null
    ) {
        Name = name;
        MeanRadiusInKM = meanRadiusInKM;
        Volume10pow9KM3 = volume10pow9KM3;
        Mass10pow21kg = mass10pow21kg;
        Density = density;
        SurfaceGravity = surfaceGravity;
        TypeOfObject = typeOfObject;
        Satellites = satellites ?? new List<SpaceObject>();
    }
}

SpaceObjectDataProvider

public class SpaceObjectDataProvider {
    public List<SpaceObject> GenerateData() {
        return new List<SpaceObject>() {
            new SpaceObject("Sun", 696000, 1412000000, 1989100000, 1.409, 274.0, "Star", new List<SpaceObject>() {
                new SpaceObject("Mercury", 2439.7, 60.83, 330.2, 5.43, 3.7, "Planet"),
                new SpaceObject("Venus", 6051.8, 928.43, 4868.5, 5.24, 8.872, "Planet"),
                new SpaceObject("Earth", 6371.0, 1083.21, 5973.6, 5.515, 9.78033, "Planet", new List<SpaceObject> () {
                    new SpaceObject("Moon", 1737.1, 21.958, 73.5, 3.3464, 1.625, "Satellite")
                }),
                new SpaceObject("Mars", 3390.0, 163.18, 641.85, 3.94, 3.7, "Planet"),
                new SpaceObject("Jupiter", 69911, 1431280, 1898600, 1.33, 24.79, "Planet", new List<SpaceObject>() {
                    new SpaceObject("Ganymede", 2631.2, 76.30, 148.2, 1.936, 1.428, "Satellite"),
                    new SpaceObject("Callisto", 2410.3, 58.65, 107.6, 1.83, 1.23603, "Satellite"),
                    new SpaceObject("Io", 1821.5, 25.32, 89.3, 3.528, 1.797, "Satellite"),
                    new SpaceObject("Europa", 1561, 15.93, 48, 3.01, 1.316, "Satellite"),
                }),
                new SpaceObject("Saturn", 58232, 827130, 568460, 0.70, 10.445, "Planet", new List<SpaceObject>() {
                    new SpaceObject("Titan", 2576, 71.52, 134.5, 1.88, 1.354, "Satellite"),
                    new SpaceObject("Rhea", 764.4, 1.87, 2.3166, 1.23, 0.26, "Satellite"),
                    new SpaceObject("Iapetus", 736, 1.55, 1.9739, 1.08, 0.223, "Satellite"),
                    new SpaceObject("Dione", 561.6, 0.73, 1.096, 1.48, 0.232, "Satellite"),
                    new SpaceObject("Tethys", 533, 0.624, 0.6173, 1.15, 0.145, "Satellite"),
                    new SpaceObject("Enceladus", 252.1, 0.067, 0.108, 1.61, 0.111, "Satellite"),
                    new SpaceObject("Mimas", 198.3, 0.033, 0.03749, 1.15, 0.06363, "Satellite")
                }),
                new SpaceObject("Uranus", 25362, 68340, 86832, 1.30, 8.87, "Planet", new List<SpaceObject>() {
                    new SpaceObject("Titania", 788.9, 2.06, 3.526, 1.72, 0.378, "Satellite"),
                    new SpaceObject("Oberon", 761.4, 1.85, 3.014, 1.63, 0.347, "Satellite"),
                    new SpaceObject("Umbriel", 584.7, 0.84, 1.2, 1.4, 0.234, "Satellite"),
                    new SpaceObject("Ariel", 578.9, 0.81, 1.35, 1.67, 0.269, "Satellite"),
                    new SpaceObject("Miranda", 235.8, 0.055, 0.0659, 1.20, 0.07910375, "Satellite"),
                }),
                new SpaceObject("Neptune", 24622, 62540, 102430, 1.76, 11.15, "Planet", new List<SpaceObject>() {
                    new SpaceObject("Triton", 1353.4, 10.38, 21.5, 2.061, 0.782, "Satellite"),
                    new SpaceObject("Proteus", 210, 0.038, 0.050, 1.3, 0.0666, "Satellite"),
                }),
                new SpaceObject("Eris", 1170, 7, 16.7, 2.25, 0.662, "Dwarf planet"),
                new SpaceObject("Pluto", 1153, 7.15, 13.105, 2.0, 0.61, "Dwarf planet"),
                new SpaceObject("Makemake", 710, 1.8, 3, 2.0, 0.4,  "Dwarf planet"),
                new SpaceObject("Haumea", 575, 1.3, 4.006, 3, 0.44, "Dwarf planet"),
                new SpaceObject("Ceres", 475, 0.437, 0.95, 2.08, 0.27, "Dwarf planet"),
                new SpaceObject("Pallas", 266, 0.078, 0.211, 2.8, 0.2, "Asteroid"),
                new SpaceObject("Vesta", 264.6, 0.078, 0.262, 3.42, 0.251, "Asteroid")
            })
        };
    }
}

Program.cs

// ...
builder.Services.AddSingleton<SpaceObjectDataProvider>();
