DxTreeListDataColumn.SortIndex Property

Specifies the column’s index among sorted columns. If the property is set to -1, TreeList data is not sorted by this column.

Namespace: DevExpress.Blazor

Assembly: DevExpress.Blazor.v24.2.dll

NuGet Package: DevExpress.Blazor

Declaration

[DefaultValue(-1)]
[Parameter]
public int SortIndex { get; set; }

Property Value

Type	Default	Description
Int32	-1	The column’s (zero-based) index among sorted columns. -1 if the TreeList does not sort data by this column.

Remarks

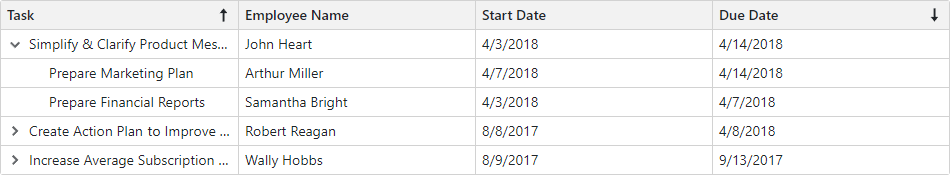

The SortIndex property allows you to sort TreeList data by an individual column in code. In this case, sorting is applied regardless of the DxTreeList.AllowSort or DxTreeListDataColumn.AllowSort property value.

If you sort data by multiple columns, this property specifies the sort level. For instance, the TreeList first sorts data by a column with SortIndex = 0 and then by a column with SortIndex = 1. If you set this property to -1, data is not sorted by the corresponding column.

Razor

@inject EmployeeTaskService EmployeeTaskService

<DxTreeList Data="TreeListData" KeyFieldName="Id" ParentKeyFieldName="ParentId">
    <Columns>
        <DxTreeListDataColumn FieldName="Name" Caption="Task" SortIndex="1" />
        <DxTreeListDataColumn FieldName="EmployeeName" />
        <DxTreeListDataColumn FieldName="StartDate" />
        <DxTreeListDataColumn FieldName="DueDate"
                              SortIndex="0"
                              SortOrder="TreeListColumnSortOrder.Descending" />
    </Columns>
</DxTreeList>

@code {
    List<EmployeeTask> TreeListData { get; set; }

    protected override void OnInitialized() {
        TreeListData = EmployeeTaskService.GenerateData();
    }
}

EmployeeTask.cs

public class EmployeeTask{
    public int Id { get; set; }
    public int ParentId { get; set; }
    public string Name { get; set; }
    public string EmployeeName { get; set; }
    public DateTime StartDate { get; set; }
    public DateTime DueDate { get; set; }

    public EmployeeTask(
        int id,
        int parentId,
        string name,
        string employeeName,
        DateTime startDate,
        DateTime dueDate
    )
    {
        Id = id;
        ParentId = parentId;
        Name = name;
        EmployeeName = employeeName;
        StartDate = startDate;
        DueDate = dueDate;
    }
}

EmployeeTaskService.cs

public class EmployeeTaskService {
    public List<EmployeeTask> GenerateData() {
        return new List<EmployeeTask>() {
            new EmployeeTask(1, 0, "Simplify & Clarify Product Messaging", "John Heart", new DateTime(2018, 4, 3), new DateTime(2018, 4, 14)),
            new EmployeeTask(2, 1, "Prepare Financial Reports", "Samantha Bright", new DateTime(2018, 4, 3), new DateTime(2018, 4, 7)),
            new EmployeeTask(3, 1, "Prepare Marketing Plan", "Arthur Miller", new DateTime(2018, 4, 7), new DateTime(2018, 4, 14)),
            new EmployeeTask(4, 0, "Create Action Plan To Improve Customer Engagement", "Robert Reagan", new DateTime(2017, 8, 8), new DateTime(2018, 4, 8)),
            new EmployeeTask(5, 4, "Update Personnel Files", "Greta Sims", new DateTime(2017, 8, 8), new DateTime(2017, 10, 18)),
            new EmployeeTask(6, 4, "Review Health Insurance Options ", "Brett Wade", new DateTime(2017, 9, 27), new DateTime(2017, 11, 10)),
            new EmployeeTask(7, 4, "Choose Between PPO And HMO Health Plan", "Sandra Johnson", new DateTime(2017, 12, 13), new DateTime(2018, 3, 23)),
            new EmployeeTask(8, 4, "Update Google Adwords Strategy", "Ed Holmes", new DateTime(2017, 8, 23), new DateTime(2017, 12, 23)),
            new EmployeeTask(9, 4, "Create New Brochure Design", "Barb Banks", new DateTime(2018, 1, 3), new DateTime(2018, 3, 14)),
            new EmployeeTask(10, 4, "Obtain Price Quote For New Brochure", "Kevin Carter", new DateTime(2018, 2, 1), new DateTime(2018, 3, 15)),
            new EmployeeTask(11, 4, "Brochure Design Review", "Cindy Stanwick", new DateTime(2017, 8, 22), new DateTime(2017, 10, 28)),
            new EmployeeTask(12, 4, "Review Website Re-Design Strategy", "Sammy Hill", new DateTime(2017, 9, 16), new DateTime(2018, 3, 6)),
            new EmployeeTask(13, 4, "Rollout New Website", "Davey Jones", new DateTime(2017, 11, 7), new DateTime(2018, 2, 6)),
            new EmployeeTask(14, 4, "Update Sales/Marketing Strategy", "Victor Norris", new DateTime(2017, 12, 13), new DateTime(2018, 4, 2)),
            new EmployeeTask(15, 4, "Update Sales/Revenue Report", "Mary Stern", new DateTime(2017, 12, 25), new DateTime(2018, 4, 2)),
            new EmployeeTask(16, 4, "Direct Vs Online Sales Comparison Report", "Robin Cosworth", new DateTime(2018, 1, 2), new DateTime(2018, 3, 20)),
            new EmployeeTask(17, 4, "Review Sales Report and Approve Modifications", "Kelly Rodriguez", new DateTime(2017, 9, 4), new DateTime(2017, 10, 30)),
            new EmployeeTask(18, 4, "Update R&D Strategy", "James Anderson", new DateTime(2017, 11, 13), new DateTime(2017, 12, 4)),
            new EmployeeTask(19, 4, "Discuss Updated R&D Strategy", "Antony Remmen", new DateTime(2017, 10, 29), new DateTime(2017, 12, 31)),
            new EmployeeTask(20, 4, "Update QA Strategy", "Olivia Peyton", new DateTime(2017, 10, 31), new DateTime(2017, 11, 2)),
            new EmployeeTask(21, 4, "Schedule Training Events", "Taylor Riley", new DateTime(2017, 11, 19), new DateTime(2018, 4, 7)),
            new EmployeeTask(22, 4, "Approve The Hiring Of John Jeffers", "Amelia Harper", new DateTime(2018, 1, 7), new DateTime(2018, 4, 8)),
            new EmployeeTask(23, 0, "Increase Average Subscription Price ", "Wally Hobbs", new DateTime(2017, 8, 9), new DateTime(2017, 9, 13)),
            new EmployeeTask(24, 23, "Update Non-Compete Agreements", "Brad Jameson", new DateTime(2017, 8, 9), new DateTime(2017, 9, 3)),
            new EmployeeTask(25, 23, "Update Employee Records With New NDA", "Karen Goodson", new DateTime(2017, 8, 23), new DateTime(2018, 9, 10))
        };
    }
}

Program.cs

// ...
builder.Services.AddSingleton<EmployeeTaskService>();

Run Demo: TreeList - Sort Data

For more information about data sorting in the TreeList component, refer to the following topic: Sort Data in Blazor TreeList.
