    DxPieChart<T>.SegmentDirection Property

    Specifies the direction in which the chart arranges series slices.

    Namespace: DevExpress.Blazor

    Assembly: DevExpress.Blazor.v25.1.dll

    NuGet Package: DevExpress.Blazor

    #Declaration

    C#
    [DefaultValue(PieChartSegmentDirection.Clockwise)]
    [Parameter]
    public PieChartSegmentDirection SegmentDirection { get; set; }

    #Property Value

    Type Default Description
    PieChartSegmentDirection Clockwise

    An enumeration value.

    Available values:

    Name Description
    Clockwise

    Arranges series slices clockwise.

    CounterClockwise

    Arranges series slices counterclockwise.

    #Remarks

    Use the SegmentDirection property to arrange series slices clockwise or counterclockwise.

    The following code snippet changes the slice direction from Clockwise to CounterClockwise:

    Razor
    <DxPieChart Data="@SalesData"
                SegmentDirection="PieChartSegmentDirection.CounterClockwise"
                T="SaleInfo">
        <DxPieChartSeries T="SaleInfo"
                          TArgument="string"
                          TValue="double"
                          ValueField="si => si.Amount"
                          ArgumentField="si => si.Region"
                          SummaryMethod="Enumerable.Sum">
            <DxChartSeriesLabel Visible="showLabels"
                                Position="labelPosition"
                                ValueFormat="ChartElementFormat.Thousands(1)">
                <DxChartSeriesLabelConnector Visible="true" />
            </DxChartSeriesLabel>
        </DxPieChartSeries>
        @* ... *@
    </DxPieChart>

    @code {
        IEnumerable<SaleInfo> SalesData;
        bool showLabels = true;
        RelativePosition labelPosition = RelativePosition.Outside;

        protected override async Task OnInitializedAsync() {
            SalesData = await Sales.GetSalesAsync();
        }
    }

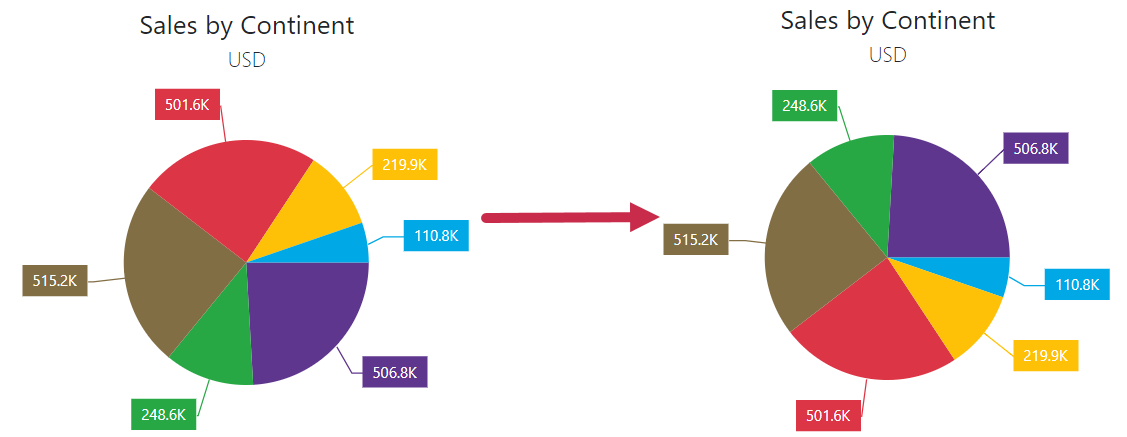

    Pie Chart - Segment direction

    For more information on how to arrange series slices, refer to the following topic: DxPieChart - Slice Layout.
