  • DxChartBase.Rendered Event

    Fires after the chart is rendered.

    Namespace: DevExpress.Blazor

    Assembly: DevExpress.Blazor.v25.1.dll

    NuGet Package: DevExpress.Blazor

    Declaration

    [Parameter]
    public EventCallback Rendered { get; set; }

    Remarks

    Handle the Rendered event to track the moment when chart rendering is finished and the component is completely loaded.

    The following example refreshes chart data on a custom button click and imitates a time-consuming operation to show the loading panel on chart rendering. After the chart is completely loaded, the loading panel is hidden.

    @inject WeatherForecastService ForecastService

    <DxButton Text="Refresh Chart Data" Enabled="!PanelVisible" Click="@RefreshButton_Click" />

    <DxLoadingPanel @bind-Visible="PanelVisible"
                    IsContentBlocked="true"
                    ApplyBackgroundShading="true"
                    IndicatorAreaVisible="false"
                    Text="Fetching Data...">
        <DxChart Data="@ChartData" Rendered="@ChartRendered" Width="100%">
            <DxChartSplineSeries Name="Temperature C"
                                 T="WeatherForecast"
                                 TArgument="DateTime"
                                 TValue="double"
                                 ArgumentField="tm => tm.Date"
                                 ValueField="tm => tm.TemperatureC">
            </DxChartSplineSeries>
        </DxChart>
    </DxLoadingPanel>

    @code {
        bool PanelVisible { get; set; }
        IEnumerable<WeatherForecast> ChartData { get; set; }
        protected override async Task OnInitializedAsync() {
            ChartData = await ForecastService.GetForecastAsync(DateTime.Now);
        }
        private async Task RefreshButton_Click() => await RefreshChartData();
        async Task RefreshChartData() {
            PanelVisible = true;
            await Task.Delay(3000);
            ChartData = await ForecastService.GetForecastAsync(DateTime.Now);
        }
        void ChartRendered() {
            PanelVisible = false;
        }
    }

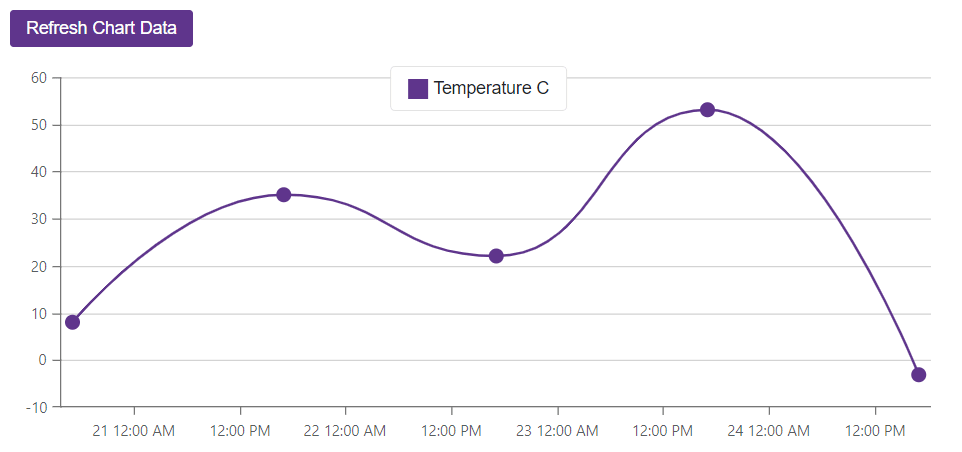

    DxChart - Display the loading panel on chart rendering
