GridDocumentExportCustomizeCellEventArgsBase.ColumnFieldName Property

Returns the column field name of the processed cell.

Namespace: DevExpress.Blazor

Assembly: DevExpress.Blazor.v25.1.dll

NuGet Package: DevExpress.Blazor

Declaration

public string ColumnFieldName { get; }

Property Value

Type	Description
String	A column field name.

Remarks

When exporting Grid/TreeList data to PDF, handle the CustomizeCell event to customize table cells in the output file. Use the ColumnFieldName event argument to determine the column containing the processed cell.

Grid Example

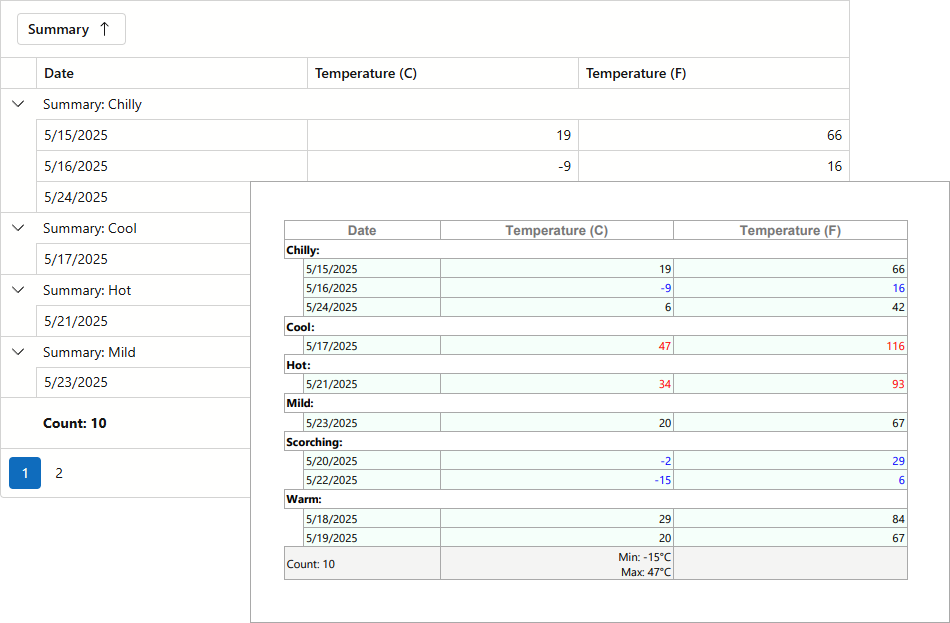

The following example exports Grid data to PDF and customizes the output table appearance:

Razor

@rendermode InteractiveServer
@using DevExpress.Drawing;
@inject WeatherForecastService ForecastService

<DxGrid @ref="Grid" Data="@forecasts" ShowGroupPanel="true">
    <Columns>
        <DxGridDataColumn Caption="Date" FieldName="Date" />
        <DxGridDataColumn Caption="Temperature (C)" FieldName="TemperatureC" ExportWidth="300"/>
        <DxGridDataColumn Caption="Temperature (F)" FieldName="TemperatureF" ExportWidth="300" />
        <DxGridDataColumn Caption="Summary" FieldName="Summary" GroupIndex="0" />
    </Columns>
    <TotalSummary>
        <DxGridSummaryItem SummaryType="GridSummaryItemType.Count" FieldName="Date" />
        <DxGridSummaryItem SummaryType="GridSummaryItemType.Min" FieldName="TemperatureC" />
        <DxGridSummaryItem SummaryType="GridSummaryItemType.Max" FieldName="TemperatureC" />
    </TotalSummary>
    <ToolbarTemplate>
        <DxToolbar>
            <DxToolbarItem Text="Export to PDF" Click="ExportPdf_Click" BeginGroup="true" />
        </DxToolbar>
    </ToolbarTemplate>
</DxGrid>

@code {
    IGrid Grid;
    private WeatherForecast[]? forecasts;
    protected override async Task OnInitializedAsync() {
        forecasts = await ForecastService.GetForecastAsync(DateOnly.FromDateTime(DateTime.Now));
    }
    async Task ExportPdf_Click() {
        await Grid.ExportToPdfAsync("ExportResult", new GridPdfExportOptions() {
            CustomizeCell = OnCustomizeCell,
        });
    }
    void OnCustomizeCell(GridDocumentExportCustomizeCellEventArgs args) {
        if (args.AreaType == DocumentExportAreaType.Header){
            args.ElementStyle.TextAlignment = DevExpress.XtraPrinting.TextAlignment.MiddleCenter;
            args.ElementStyle.Font = new DXFont("Arial", 10, DXFontStyle.Bold);
        }
        if (args.AreaType == DocumentExportAreaType.GroupHeader && args.GroupFieldName == "Summary")
            args.Text = args.Value + ":";
        if (args.AreaType == DocumentExportAreaType.DataArea) {
            args.ElementStyle.BackColor = System.Drawing.Color.MintCream;
            if (args.ColumnFieldName.Contains("Temperature")) {
                var forecast = (WeatherForecast)args.DataItem;
                if (forecast.TemperatureC < 0)
                    args.ElementStyle.ForeColor = System.Drawing.Color.Blue;
                if (forecast.TemperatureC > 30)
                    args.ElementStyle.ForeColor = System.Drawing.Color.Red;
            }
        }
        if (args.AreaType == DocumentExportAreaType.TotalFooter && args.ColumnFieldName == "TemperatureC") {
            args.Text = args.SummaryItems[0].Text + "°C\n" + args.SummaryItems[1].Text + "°C";
            args.ElementStyle.TextAlignment = DevExpress.XtraPrinting.TextAlignment.MiddleRight;
        }
        args.Handled = true;
    }
}

WeatherForecast.cs

using System;

public class WeatherForecast {
    public DateTime Date { get; set; }
    public int TemperatureC { get; set; }
    public string Forecast { get; set; }
    public string CloudCover { get; set; }
}

WeatherForecastService.cs

using System;
using System.Collections.Generic;
using System.Linq;
using System.Threading;
using System.Threading.Tasks;

public class WeatherForecastService {
    private List<WeatherForecast> Forecast { get; set; }

    private static string[] CloudCover = new[] {
        "Sunny", "Partly cloudy", "Cloudy", "Storm"
    };

    Tuple<int, string>[] ConditionsForForecast = new Tuple<int, string>[] {
        Tuple.Create( 22 , "Hot"),
        Tuple.Create( 13 , "Warm"),
        Tuple.Create( 0 , "Cold"),
        Tuple.Create( -10 , "Freezing")
    };

    public WeatherForecastService() {
        Forecast = CreateForecast();
    }

    private List<WeatherForecast> CreateForecast() {
        var rng = new Random();
        DateTime startDate = DateTime.Now;
        return Enumerable.Range(1, 30).Select(index => {
            var temperatureC = rng.Next(-10, 30);
            return new WeatherForecast {
                Date = startDate.AddDays(index),
                TemperatureC = temperatureC,
                CloudCover = CloudCover[rng.Next(0, 4)],
                Forecast = ConditionsForForecast.First(c => c.Item1 <= temperatureC).Item2
            };
        }).ToList();
    }

    public List<WeatherForecast> GetForecast() {
        return Forecast;
    }

    public Task<WeatherForecast[]> GetForecastAsync(CancellationToken ct = default) {
        return Task.FromResult(Forecast.ToArray());
    }
}

Program.cs

// ...
builder.Services.AddSingleton<WeatherForecastService>();

TreeList Example

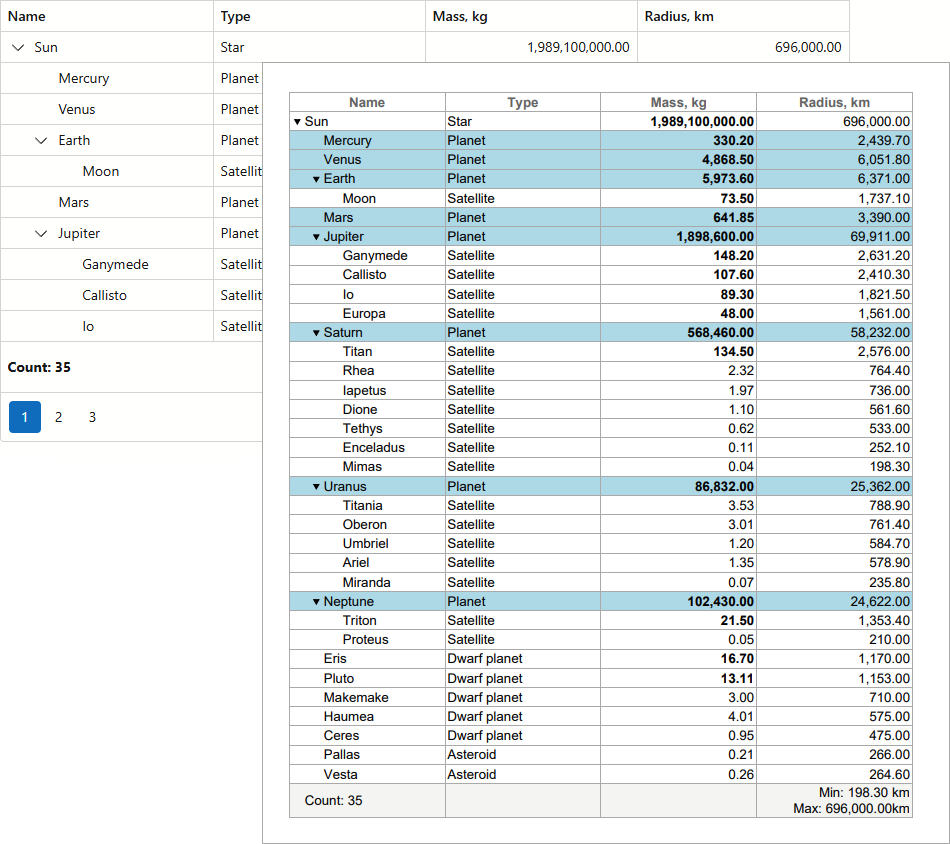

The following example exports TreeList data to PDF and customizes the output table appearance:

Razor

@rendermode InteractiveServer
@using DevExpress.Drawing
@inject SpaceObjectDataProvider SpaceObjectDataProvider

<DxTreeList @ref="TreeList" Data="TreeListData" ChildrenFieldName="Satellites">
    <Columns>
        <DxTreeListDataColumn FieldName="Name" />
        <DxTreeListDataColumn FieldName="TypeOfObject" Caption="Type" />
        <DxTreeListDataColumn FieldName="Mass10pow21kg" Caption="Mass, kg" DisplayFormat="N2" />
        <DxTreeListDataColumn FieldName="MeanRadiusInKM" Caption="Radius, km" DisplayFormat="N2" />
    </Columns>
    <TotalSummary>
        <DxTreeListSummaryItem SummaryType="TreeListSummaryItemType.Count" FieldName="Name" />
        <DxTreeListSummaryItem SummaryType="TreeListSummaryItemType.Min" FieldName="MeanRadiusInKM" />
        <DxTreeListSummaryItem SummaryType="TreeListSummaryItemType.Max" FieldName="MeanRadiusInKM" />
    </TotalSummary>
    <ToolbarTemplate>
        <DxToolbar>
            <DxToolbarItem Text="Export to PDF" Click="ExportPdf_Click" BeginGroup="true" />
        </DxToolbar>
    </ToolbarTemplate>
</DxTreeList>

@code {
    ITreeList TreeList { get; set; }
    object TreeListData { get; set; }
    protected override async Task OnInitializedAsync() {
        TreeListData = SpaceObjectDataProvider.GenerateData();
    }
    async Task ExportPdf_Click() {
        await TreeList.ExportToPdfAsync("ExportResult", new TreeListPdfExportOptions() {
            CustomizeCell = OnCustomizeCell,
        });
    }
    void OnCustomizeCell(TreeListDocumentExportCustomizeCellEventArgs args) {
        if (args.AreaType == DocumentExportAreaType.Header) {
            args.ElementStyle.TextAlignment = DevExpress.XtraPrinting.TextAlignment.MiddleCenter;
            args.ElementStyle.Font = new DXFont("Arial", 10, DXFontStyle.Bold);
        }
        if (args.AreaType == DocumentExportAreaType.DataArea) {
            var spaceObject = (SpaceObject)args.DataItem;
            if (spaceObject.TypeOfObject == "Planet")
            args.ElementStyle.BackColor = System.Drawing.Color.LightBlue;
            if (args.ColumnFieldName == "Mass10pow21kg" && (double)args.Value > 10)
                args.ElementStyle.Font = new DXFont(args.ElementStyle.Font, DXFontStyle.Bold);
        }
        if (args.AreaType == DocumentExportAreaType.TotalFooter && args.ColumnFieldName == "MeanRadiusInKM") {
            args.Text = args.SummaryItems[0].Text + " km\n" + args.SummaryItems[1].Text + "km";
            args.ElementStyle.TextAlignment = DevExpress.XtraPrinting.TextAlignment.MiddleRight;
        }
        args.Handled = true;
    }
}

SpaceObject

using System.Collections.Generic;

public class SpaceObject {
    public string Name { get; set; }
    public double MeanRadiusInKM { get; set; }
    public double Volume10pow9KM3 { get; set; }
    public double Mass10pow21kg { get; set; }
    public double Density { get; set; }
    public double SurfaceGravity { get; set; }
    public string TypeOfObject { get; set; }
    public List<SpaceObject> Satellites { get; set; }
    public SpaceObject(
        string name,
        double meanRadiusInKM,
        double volume10pow9KM3,
        double mass10pow21kg,
        double density,
        double surfaceGravity,
        string typeOfObject,
        List<SpaceObject> satellites = null
    ) {
        Name = name;
        MeanRadiusInKM = meanRadiusInKM;
        Volume10pow9KM3 = volume10pow9KM3;
        Mass10pow21kg = mass10pow21kg;
        Density = density;
        SurfaceGravity = surfaceGravity;
        TypeOfObject = typeOfObject;
        Satellites = satellites ?? new List<SpaceObject>();
    }
}

SpaceObjectDataProvider

public class SpaceObjectDataProvider {
    public List<SpaceObject> GenerateData() {
        return new List<SpaceObject>() {
            new SpaceObject("Sun", 696000, 1412000000, 1989100000, 1.409, 274.0, "Star", new List<SpaceObject>() {
                new SpaceObject("Mercury", 2439.7, 60.83, 330.2, 5.43, 3.7, "Planet"),
                new SpaceObject("Venus", 6051.8, 928.43, 4868.5, 5.24, 8.872, "Planet"),
                new SpaceObject("Earth", 6371.0, 1083.21, 5973.6, 5.515, 9.78033, "Planet", new List<SpaceObject> () {
                    new SpaceObject("Moon", 1737.1, 21.958, 73.5, 3.3464, 1.625, "Satellite")
                }),
                new SpaceObject("Mars", 3390.0, 163.18, 641.85, 3.94, 3.7, "Planet"),
                new SpaceObject("Jupiter", 69911, 1431280, 1898600, 1.33, 24.79, "Planet", new List<SpaceObject>() {
                    new SpaceObject("Ganymede", 2631.2, 76.30, 148.2, 1.936, 1.428, "Satellite"),
                    new SpaceObject("Callisto", 2410.3, 58.65, 107.6, 1.83, 1.23603, "Satellite"),
                    new SpaceObject("Io", 1821.5, 25.32, 89.3, 3.528, 1.797, "Satellite"),
                    new SpaceObject("Europa", 1561, 15.93, 48, 3.01, 1.316, "Satellite"),
                }),
                new SpaceObject("Saturn", 58232, 827130, 568460, 0.70, 10.445, "Planet", new List<SpaceObject>() {
                    new SpaceObject("Titan", 2576, 71.52, 134.5, 1.88, 1.354, "Satellite"),
                    new SpaceObject("Rhea", 764.4, 1.87, 2.3166, 1.23, 0.26, "Satellite"),
                    new SpaceObject("Iapetus", 736, 1.55, 1.9739, 1.08, 0.223, "Satellite"),
                    new SpaceObject("Dione", 561.6, 0.73, 1.096, 1.48, 0.232, "Satellite"),
                    new SpaceObject("Tethys", 533, 0.624, 0.6173, 1.15, 0.145, "Satellite"),
                    new SpaceObject("Enceladus", 252.1, 0.067, 0.108, 1.61, 0.111, "Satellite"),
                    new SpaceObject("Mimas", 198.3, 0.033, 0.03749, 1.15, 0.06363, "Satellite")
                }),
                new SpaceObject("Uranus", 25362, 68340, 86832, 1.30, 8.87, "Planet", new List<SpaceObject>() {
                    new SpaceObject("Titania", 788.9, 2.06, 3.526, 1.72, 0.378, "Satellite"),
                    new SpaceObject("Oberon", 761.4, 1.85, 3.014, 1.63, 0.347, "Satellite"),
                    new SpaceObject("Umbriel", 584.7, 0.84, 1.2, 1.4, 0.234, "Satellite"),
                    new SpaceObject("Ariel", 578.9, 0.81, 1.35, 1.67, 0.269, "Satellite"),
                    new SpaceObject("Miranda", 235.8, 0.055, 0.0659, 1.20, 0.07910375, "Satellite"),
                }),
                new SpaceObject("Neptune", 24622, 62540, 102430, 1.76, 11.15, "Planet", new List<SpaceObject>() {
                    new SpaceObject("Triton", 1353.4, 10.38, 21.5, 2.061, 0.782, "Satellite"),
                    new SpaceObject("Proteus", 210, 0.038, 0.050, 1.3, 0.0666, "Satellite"),
                }),
                new SpaceObject("Eris", 1170, 7, 16.7, 2.25, 0.662, "Dwarf planet"),
                new SpaceObject("Pluto", 1153, 7.15, 13.105, 2.0, 0.61, "Dwarf planet"),
                new SpaceObject("Makemake", 710, 1.8, 3, 2.0, 0.4,  "Dwarf planet"),
                new SpaceObject("Haumea", 575, 1.3, 4.006, 3, 0.44, "Dwarf planet"),
                new SpaceObject("Ceres", 475, 0.437, 0.95, 2.08, 0.27, "Dwarf planet"),
                new SpaceObject("Pallas", 266, 0.078, 0.211, 2.8, 0.2, "Asteroid"),
                new SpaceObject("Vesta", 264.6, 0.078, 0.262, 3.42, 0.251, "Asteroid")
            })
        };
    }
}

Program.cs

// ...
builder.Services.AddSingleton<SpaceObjectDataProvider>();
