DxChartAxisBase<T>.Inverted Property

Specifies whether an axis is inverted.

Namespace: DevExpress.Blazor

Assembly: DevExpress.Blazor.v24.2.dll

NuGet Package: DevExpress.Blazor

#Declaration

C#
[Parameter]
public bool Inverted { get; set; }

#Property Value

Type Description
Boolean

true to invert an axis; otherwise, false.

#Remarks

Set the Inverted property to true to swap the minimum and maximum values of an axis. As a result, its values ascend in the opposite direction. The Chart also inverts series.

The following example creates two charts bound to one data source and invert the value axis in one of them:

Razor
<DxChart Data="@forecasts" Width="460px;">
    <DxChartLineSeries ArgumentField="@((WeatherForecast i) => i.Date)"
                       ValueField="@((WeatherForecast i) => i.Precipitation)"
                       Name="Precipitation">
    </DxChartLineSeries>
    <DxChartLegend VerticalAlignment="VerticalEdge.Top" />
</DxChart>
<DxChart Data="@forecasts" Width="460px;">
    <DxChartLineSeries ArgumentField="@((WeatherForecast i) => i.Date)"
                       ValueField="@((WeatherForecast i) => i.Precipitation)"
                       Name="Precipitation">
    </DxChartLineSeries>
    <DxChartLegend VerticalAlignment="VerticalEdge.Bottom" />
    <DxChartValueAxis Inverted="true" />
</DxChart>

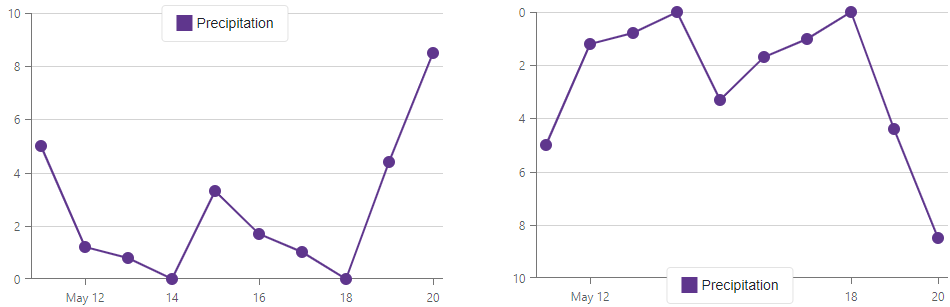

Chart Inversion Comparison
