DxChartScrollBarSettings.ArgumentAxisScrollBarPosition Property

Specifies the scrollbar’s position.

Namespace: DevExpress.Blazor

Assembly: DevExpress.Blazor.v24.2.dll

NuGet Package: DevExpress.Blazor

Declaration

[Parameter]
public ChartScrollBarPosition ArgumentAxisScrollBarPosition { get; set; }

Property Value

Type	Description
ChartScrollBarPosition	A ChartScrollBarPosition enumeration value.

Available values:

Name	Description
Bottom	Places the scrollbar below the chart.
Left	Places the scrollbar to the left of the chart.
Right	Places the scrollbar to the right of the chart.
Top	Places the scrollbar above the chart.

Remarks

When the chart displays the argument axis horizontally, use the Top and Bottom values to specify the scrollbar position.

If you set the DxChart.Rotated property to true, the chart displays the argument axis vertically. In this case, use the Right and Left values to specify the scrollbar position.

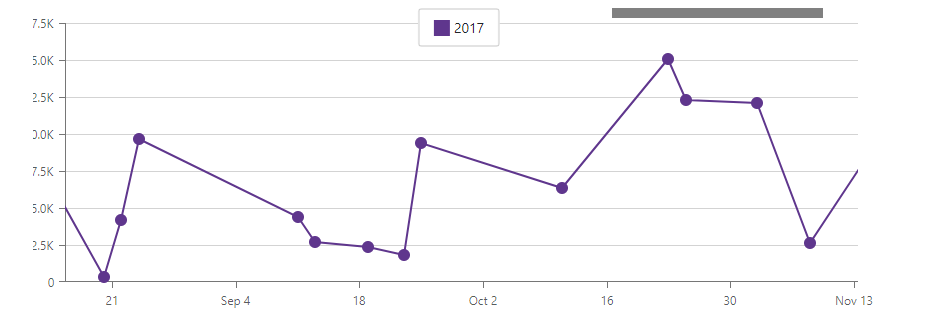

The following code snippet does the following:

• Enables zoom and pan.
• Adds a scrollbar to the chart’s argument axis.
• Sets the scrollbar’s position to Top.

Razor

@using Chart.Data

<DxChart Data="@SalesData">
    <DxChartLineSeries Name="2017"
                        Filter="@((SaleInfo s) => s.Date.Year == 2017)"
                        ArgumentField="@(s => s.Date)"
                        ValueField="@(s => s.Amount)">
        <DxChartAggregationSettings Enabled="true" Method="ChartAggregationMethod.Sum" />
    </DxChartLineSeries>
    <DxChartZoomAndPanSettings ArgumentAxisZoomAndPanMode="ChartAxisZoomAndPanMode.Both"
                               ValueAxisZoomAndPanMode="ChartAxisZoomAndPanMode.Pan" />
    <DxChartScrollBarSettings ArgumentAxisScrollBarVisible="true"
                              ArgumentAxisScrollBarPosition="ChartScrollBarPosition.Top" />
</DxChart>

@code {
    IEnumerable<SaleInfo> SalesData;

    protected override async Task OnInitializedAsync() {
        SalesData = await Sales.GetSalesAsync();
    }
}

SaleInfo

using System;

public class SaleInfo {
    public int OrderId { get; set; }
    public string Region { get; set; }
    public string Country { get; set; }
    public string City { get; set; }
    public int Amount { get; set; }
    public DateTime Date { get; set; }
}

Sales

using System;
using System.Collections.Generic;
using System.Linq;
using System.Threading.Tasks;

public class Sales {
    static IList<SaleInfo> dataSource;
    static Sales() {
        CreateDataSource();
    }

    public static Task<IQueryable<SaleInfo>> GetSalesAsync() {
        return Task.FromResult(dataSource.AsQueryable());
    }

    static void CreateDataSource() {
        dataSource = new List<SaleInfo> {
        new SaleInfo {
                OrderId = 10248,
                Region = "North America",
                Country = "United States",
                City = "New York",
                Amount = 1740,
                Date = DateTime.Parse("2017/01/06")
            },
            new SaleInfo {
                OrderId = 10249,
                Region = "North America",
                Country = "United States",
                City = "Los Angeles",
                Amount = 850,
                Date = DateTime.Parse("2017/01/13")
            },
            new SaleInfo {
                OrderId = 10250,
                Region = "North America",
                Country = "United States",
                City = "Denver",
                Amount = 2235,
                Date = DateTime.Parse("2017/01/07")
            },
            new SaleInfo {
                OrderId = 10251,
                Region = "North America",
                Country = "Canada",
                City = "Vancouver",
                Amount = 1965,
                Date = DateTime.Parse("2017/01/03")
            },
            new SaleInfo {
                OrderId = 10252,
                Region = "North America",
                Country = "Canada",
                City = "Edmonton",
                Amount = 880,
                Date = DateTime.Parse("2017/01/10")
            },
            new SaleInfo {
                OrderId = 10253,
                Region = "South America",
                Country = "Brazil",
                City = "Rio de Janeiro",
                Amount = 5260,
                Date = DateTime.Parse("2017/01/17")
            },
            new SaleInfo {
                OrderId = 10254,
                Region = "South America",
                Country = "Argentina",
                City = "Buenos Aires",
                Amount = 2790,
                Date = DateTime.Parse("2017/01/21")
            },
            new SaleInfo {
                OrderId = 10255,
                Region = "South America",
                Country = "Paraguay",
                City = "Asuncion",
                Amount = 3140,
                Date = DateTime.Parse("2017/01/01")
            },
            new SaleInfo {
                OrderId = 10256,
                Region = "Europe",
                Country = "United Kingdom",
                City = "London",
                Amount = 6175,
                Date = DateTime.Parse("2017/01/24")
            },
            new SaleInfo {
                OrderId = 10257,
                Region = "Europe",
                Country = "Germany",
                City = "Berlin",
                Amount = 4575,
                Date = DateTime.Parse("2017/01/11")
            },
            // ...
    };
    }
}

Run Demo: Charts - Zoom and Pan
