DxChartConstantLine.DisplayBehindSeries Property

Specifies whether to display the constant line behind series.

Namespace: DevExpress.Blazor

Assembly: DevExpress.Blazor.v24.2.dll

NuGet Package: DevExpress.Blazor

#Declaration

C#
[DefaultValue(false)]
[Parameter]
public bool DisplayBehindSeries { get; set; }

#Property Value

Type Default Description
Boolean false

true to display the constant line behind series; otherwise, false.

#Remarks

The chart initially displays constant lines in front of series.

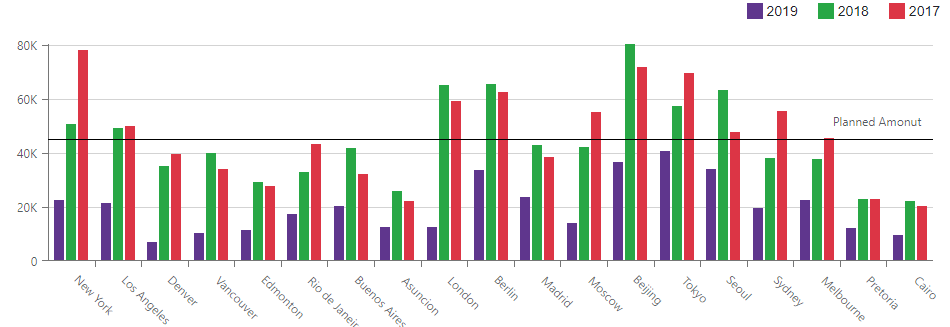

Horizontal constant line

Set a constant line’s DisplayBehindSeries property to true to move the line backwards.

The following example applies the DisplayBehindSeries property:

Razor
<DxChart Data="@SalesData">
    <DxChartValueAxis>
        <DxChartConstantLine Value="40000"
                             DisplayBehindSeries="true">
            <DxChartConstantLineLabel HorizontalAlignment="HorizontalAlignment.Right" Text="Planned Amonut" />
        </DxChartConstantLine>
    </DxChartValueAxis>
    @* ... *@
</DxChart>

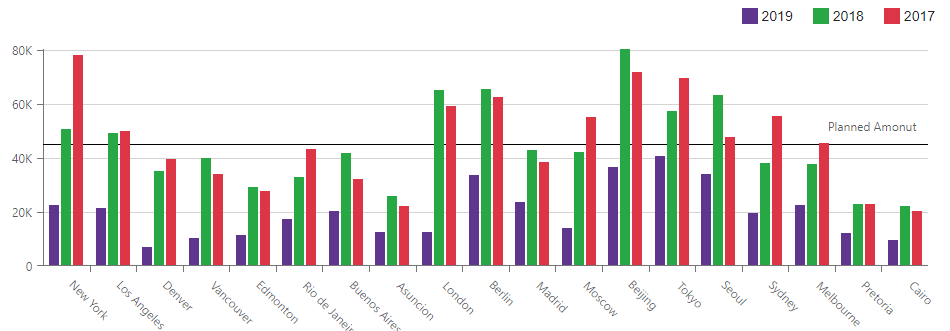

Constant Line Moved Backwards
