DxChartConstantLine.DashStyle Property

Specifies the dash style of the constant line.

Namespace: DevExpress.Blazor

Assembly: DevExpress.Blazor.v24.2.dll

NuGet Package: DevExpress.Blazor

#Declaration

C#
[Parameter]
public ChartDashStyle DashStyle { get; set; }

#Property Value

Type Description
ChartDashStyle

A ChartDashStyle enumeration value.

Available values:

Name Description
Solid

A continuous solid line.

Dash

A dashed line.

Dot

A dotted line.

LongDash

A line that displays long dashes.

DashDot

A line that repeats the dash-dot pattern.

DashDotDot

A line that repeats the dash-dot-dot pattern.

#Remarks

Use the DashStyle property to specify the dash style of the constant line.

The following example applies the dash-dot-dot pattern:

Razor
<DxChart Data="@SalesData">
    <DxChartLineSeries Name="Total Sales"
                       ArgumentField="@((SaleInfo s) => s.City)"
                       ValueField="@((SaleInfo s) => s.Amount)"
                       SummaryMethod="Enumerable.Sum">
    </DxChartLineSeries>
    <DxChartValueAxis>
        <DxChartConstantLine Value="120000"
                             DashStyle="ChartDashStyle.DashDotDot">
            <DxChartConstantLineLabel Text="Planned Amount"
                                      HorizontalAlignment="HorizontalAlignment.Right" />
        </DxChartConstantLine>
    </DxChartValueAxis>
</DxChart>

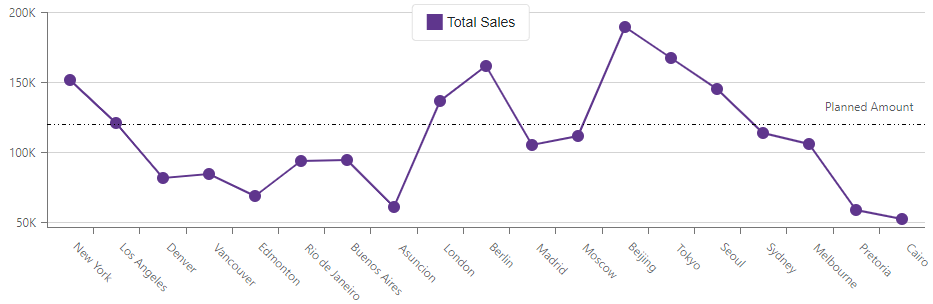

Constant Line Dash Style
