TreeListSelectionColumnCellDisplayTemplateContext.VisibleIndex Property

Returns the visible index of the current row.

Namespace: DevExpress.Blazor

Assembly: DevExpress.Blazor.v24.1.dll

NuGet Package: DevExpress.Blazor

Declaration

public int VisibleIndex { get; }

Property Value

Type	Description
Int32	The row’s visible index.

Remarks

Row Visible Indexes

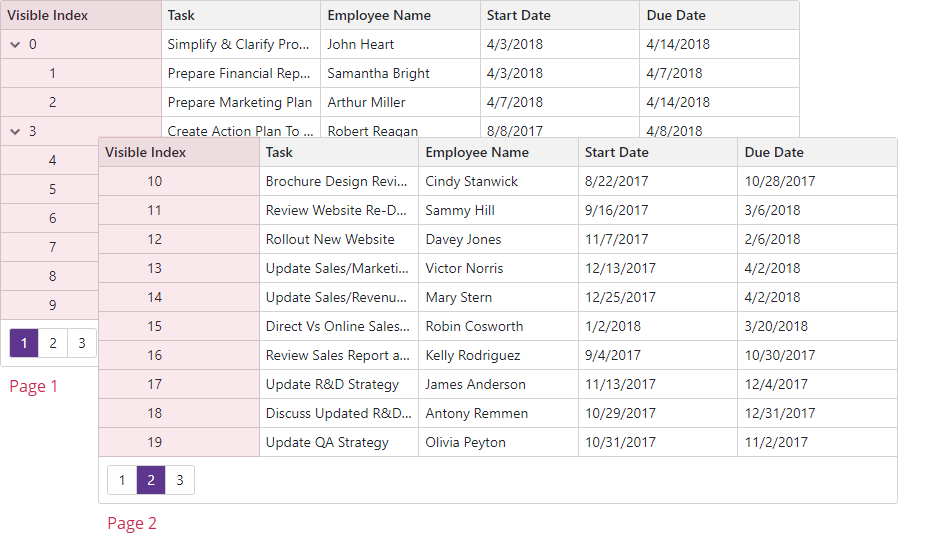

Visible indexes indicate the order of visible data rows. Indexes are zero-based and sequential for rows on all TreeList pages.

The TreeList reassigns row indexes each time a user sorts or filters data and expands/collapses rows.

The following rows do not have visible indexes:

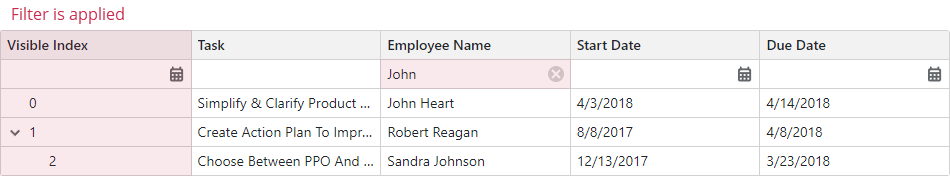

• Rows that are filtered out.

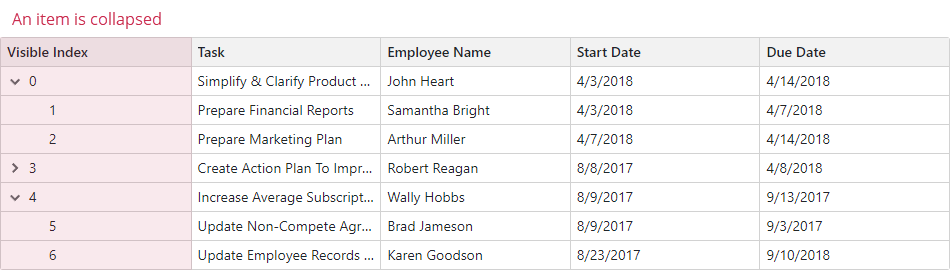

• Child rows of collapsed items

The following code snippet creates a TreeList column that displays visible indexes for rows:

Razor

@inject EmployeeTaskService EmployeeTaskService

<DxTreeList Data="TreeListData" KeyFieldName="Id" ParentKeyFieldName="ParentId">
    <Columns>
        <DxTreeListDataColumn Caption="Visible Index">
            <CellDisplayTemplate>@context.VisibleIndex</CellDisplayTemplate>
        </DxTreeListDataColumn>
        <DxTreeListDataColumn FieldName="Name" Caption="Task" />
        <DxTreeListDataColumn FieldName="EmployeeName" />
        <DxTreeListDataColumn FieldName="StartDate" />
        <DxTreeListDataColumn FieldName="DueDate" />
    </Columns>
</DxTreeList>

@code {
    List<EmployeeTask> TreeListData { get; set; }

    protected override void OnInitialized() {
        TreeListData = EmployeeTaskService.GenerateData();
    }
}

EmployeeTask.cs

public class EmployeeTask{
    public int Id { get; set; }
    public int ParentId { get; set; }
    public string Name { get; set; }
    public string EmployeeName { get; set; }
    public DateTime StartDate { get; set; }
    public DateTime DueDate { get; set; }

    public EmployeeTask(
        int id,
        int parentId,
        string name,
        string employeeName,
        DateTime startDate,
        DateTime dueDate
    )
    {
        Id = id;
        ParentId = parentId;
        Name = name;
        EmployeeName = employeeName;
        StartDate = startDate;
        DueDate = dueDate;
    }
}

EmployeeTaskService.cs

public class EmployeeTaskService {
    public List<EmployeeTask> GenerateData() {
        return new List<EmployeeTask>() {
            new EmployeeTask(1, 0, "Simplify & Clarify Product Messaging", "John Heart", new DateTime(2018, 4, 3), new DateTime(2018, 4, 14)),
            new EmployeeTask(2, 1, "Prepare Financial Reports", "Samantha Bright", new DateTime(2018, 4, 3), new DateTime(2018, 4, 7)),
            new EmployeeTask(3, 1, "Prepare Marketing Plan", "Arthur Miller", new DateTime(2018, 4, 7), new DateTime(2018, 4, 14)),
            new EmployeeTask(4, 0, "Create Action Plan To Improve Customer Engagement", "Robert Reagan", new DateTime(2017, 8, 8), new DateTime(2018, 4, 8)),
            new EmployeeTask(5, 4, "Update Personnel Files", "Greta Sims", new DateTime(2017, 8, 8), new DateTime(2017, 10, 18)),
            new EmployeeTask(6, 4, "Review Health Insurance Options ", "Brett Wade", new DateTime(2017, 9, 27), new DateTime(2017, 11, 10)),
            new EmployeeTask(7, 4, "Choose Between PPO And HMO Health Plan", "Sandra Johnson", new DateTime(2017, 12, 13), new DateTime(2018, 3, 23)),
            new EmployeeTask(8, 4, "Update Google Adwords Strategy", "Ed Holmes", new DateTime(2017, 8, 23), new DateTime(2017, 12, 23)),
            new EmployeeTask(9, 4, "Create New Brochure Design", "Barb Banks", new DateTime(2018, 1, 3), new DateTime(2018, 3, 14)),
            new EmployeeTask(10, 4, "Obtain Price Quote For New Brochure", "Kevin Carter", new DateTime(2018, 2, 1), new DateTime(2018, 3, 15)),
            new EmployeeTask(11, 4, "Brochure Design Review", "Cindy Stanwick", new DateTime(2017, 8, 22), new DateTime(2017, 10, 28)),
            new EmployeeTask(12, 4, "Review Website Re-Design Strategy", "Sammy Hill", new DateTime(2017, 9, 16), new DateTime(2018, 3, 6)),
            new EmployeeTask(13, 4, "Rollout New Website", "Davey Jones", new DateTime(2017, 11, 7), new DateTime(2018, 2, 6)),
            new EmployeeTask(14, 4, "Update Sales/Marketing Strategy", "Victor Norris", new DateTime(2017, 12, 13), new DateTime(2018, 4, 2)),
            new EmployeeTask(15, 4, "Update Sales/Revenue Report", "Mary Stern", new DateTime(2017, 12, 25), new DateTime(2018, 4, 2)),
            new EmployeeTask(16, 4, "Direct Vs Online Sales Comparison Report", "Robin Cosworth", new DateTime(2018, 1, 2), new DateTime(2018, 3, 20)),
            new EmployeeTask(17, 4, "Review Sales Report and Approve Modifications", "Kelly Rodriguez", new DateTime(2017, 9, 4), new DateTime(2017, 10, 30)),
            new EmployeeTask(18, 4, "Update R&D Strategy", "James Anderson", new DateTime(2017, 11, 13), new DateTime(2017, 12, 4)),
            new EmployeeTask(19, 4, "Discuss Updated R&D Strategy", "Antony Remmen", new DateTime(2017, 10, 29), new DateTime(2017, 12, 31)),
            new EmployeeTask(20, 4, "Update QA Strategy", "Olivia Peyton", new DateTime(2017, 10, 31), new DateTime(2017, 11, 2)),
            new EmployeeTask(21, 4, "Schedule Training Events", "Taylor Riley", new DateTime(2017, 11, 19), new DateTime(2018, 4, 7)),
            new EmployeeTask(22, 4, "Approve The Hiring Of John Jeffers", "Amelia Harper", new DateTime(2018, 1, 7), new DateTime(2018, 4, 8)),
            new EmployeeTask(23, 0, "Increase Average Subscription Price ", "Wally Hobbs", new DateTime(2017, 8, 9), new DateTime(2017, 9, 13)),
            new EmployeeTask(24, 23, "Update Non-Compete Agreements", "Brad Jameson", new DateTime(2017, 8, 9), new DateTime(2017, 9, 3)),
            new EmployeeTask(25, 23, "Update Employee Records With New NDA", "Karen Goodson", new DateTime(2017, 8, 23), new DateTime(2018, 9, 10))
        };
    }
}

Program.cs

// ...
builder.Services.AddSingleton<EmployeeTaskService>();

Refer to the following property description for more information and an example: DxTreeListSelectionColumn.CellDisplayTemplate.
