DxFormLayoutItem.CaptionFor Property

Specifies a unique identifier of the layout item’s caption and allows you to associate the caption with a component in the template.

Namespace: DevExpress.Blazor

Assembly: DevExpress.Blazor.v21.1.dll

Declaration

[Parameter]
public string CaptionFor { get; set; }

Property Value

Type Description
String

A unique identifier.

Remarks

Use the CaptionFor property to associate a layout item’s caption with a component in the layout item’s template.

  1. Specify the layout item’s Caption property. A browser renders the caption as an HTML label element.
  2. Set the layout item’s CaptionFor property to a unique value. This value is assigned to the label’s for attribute. Note that this value is case-sensitive, should contain at least one character, and should not contain whitespaces (spases, tabs, etc.)
  3. Set the ID of a component in the template to the same value as the item’s CaptionFor.

    If you use a DevExpress data editor (DxTextBox, DxSpinEdit, etc.), specify the InputId property.

    <DxFormLayout>
        <DxFormLayoutItem Caption="Contact Name:" CaptionFor="text_box">
            <Template>
                <DxTextBox @bind-Text="@Name" InputId="text_box"></DxTextBox>
            </Template>
        </DxFormLayoutItem>
        @*...*@
    </DxFormLayout>


    If you use a non-DevExpress component, specify the id property.

    <DxFormLayout>
        <DxFormLayoutItem Caption="Contact Name:" CaptionFor="text_box">
            <Template>
                <input value="@Name" id="text_box">
            </Template>
        </DxFormLayoutItem>
    </DxFormLayout>


You can click the associated label to focus/activate the input element.

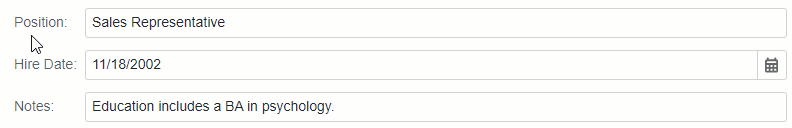

Data Editor and Layout Item Caption

NOTE

If you do not specify the CaptionFor property, the Form Layout generates a random identifier (GUID) and assings it to the label’s for attribute and to the id property of the first component in the template.
