  • DxChartAxisStrip.EndValue Property

    Specifies the strip’s end value.

    Namespace: DevExpress.Blazor

    Assembly: DevExpress.Blazor.v25.1.dll

    NuGet Package: DevExpress.Blazor

    Declaration

    [Parameter]
    public object EndValue { get; set; }

    Property Value

    Type Description
    Object

    The end value.

    Remarks

    Specify StartValue and EndValue properties to define the strip range. Use both properties to highlight an area between two values. Define only one property to highlight the area above or below a certain value.

    <DxChart Data="@DataSource">
        <DxChartTitle Text="Temperature (high) in September, °F" />
        <DxChartLegend Visible="false" />
        <DxChartSplineSeries ArgumentField="@((TemperatureData s) => s.Date)"
                             ValueField="@((TemperatureData s) => s.Temperature)"
                             Color="@SeriesColor">
            <DxChartSeriesLabel FormatPattern="{value:#}°F" />
        </DxChartSplineSeries>
        <DxChartValueAxis>
            <DxChartAxisStrip EndValue="LowAverage"
                              Color="rgba(97, 153, 230, 0.1)">
                <DxChartAxisStripLabel Text="Below average low">
                    <DxChartFont Color="@LowAverageColor" Weight="500" Size="14" />
                </DxChartAxisStripLabel>
            </DxChartAxisStrip>
        </DxChartValueAxis>
    </DxChart>

    @code {
        // ...
        double LowAverage = 53;
        string LowAverageColor = "#6199e6";
    }

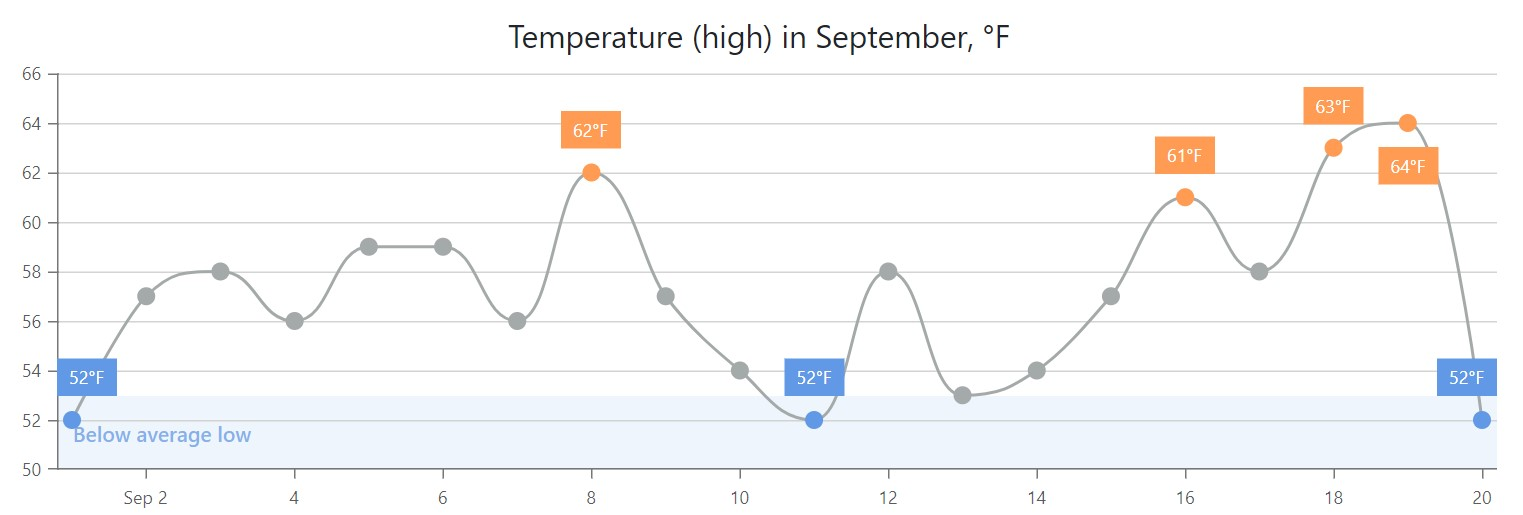

    Chart - Strip's end value
