DxTreeListColumn.TextAlignment Property

Specifies the alignment of text in column cells.

Namespace: DevExpress.Blazor

Assembly: DevExpress.Blazor.v25.1.dll

NuGet Package: DevExpress.Blazor

Declaration

[DefaultValue(TreeListTextAlignment.Auto)]
[Parameter]
public TreeListTextAlignment TextAlignment { get; set; }

Property Value

Type	Default	Description
TreeListTextAlignment	Auto	An enumeration value.

Available values:

Name	Description
Auto	Aligns text based on cell content and column data type.
Left	Aligns cell text to the left.
Center	Centers cell text.
Right	Aligns cell text to the right.

Remarks

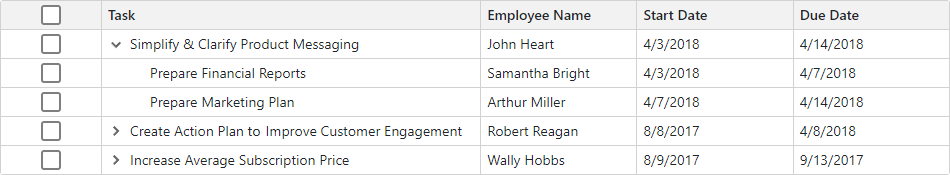

The TreeList component aligns the contents of data and footer cells based on the cell data type and column type. For example, the default behavior of the DxTreeListSelectionColumn is to center its content.

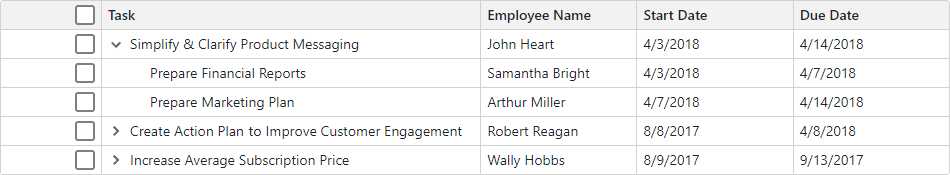

Use the TextAlignment property to change the text alignment in column cells. The following example applies this property:

Razor

@inject EmployeeTaskService EmployeeTaskService

<DxTreeList Data="TreeListData" KeyFieldName="Id" ParentKeyFieldName="ParentId">
    <Columns>
        <DxTreeListSelectionColumn TextAlignment="TreeListTextAlignment.Right" Width="100px" />
        <DxTreeListDataColumn FieldName="Name" Caption="Task" Width="40%" />
        <DxTreeListDataColumn FieldName="EmployeeName" />
        <DxTreeListDataColumn FieldName="StartDate" />
        <DxTreeListDataColumn FieldName="DueDate" />
    </Columns>
</DxTreeList>

@code {
    List<EmployeeTask> TreeListData { get; set; }

    protected override void OnInitialized() {
        TreeListData = EmployeeTaskService.GenerateData();
    }
}

EmployeeTask.cs

public class EmployeeTask {
    public int Id { get; set; }
    public int ParentId { get; set; }
    public string Name { get; set; }
    public string EmployeeName { get; set; }
    public DateTime StartDate { get; set; }
    public DateTime DueDate { get; set; }
    public int Progress { get; set; }
    public EmployeeTask() { }
    public EmployeeTask(
        int id,
        int parentId,
        string name,
        string employeeName,
        DateTime startDate,
        DateTime dueDate,
        int progress
        )
    {
        Id = id;
        ParentId = parentId;
        Name = name;
        EmployeeName = employeeName;
        StartDate = startDate;
        DueDate = dueDate;
        Progress = progress;
    }
}

EmployeeTaskService.cs

public class EmployeeTaskService {
    public List<EmployeeTask> GenerateData() {
        return new List<EmployeeTask>() {
            new EmployeeTask(1, 0, "Simplify & Clarify Product Messaging", "John Heart", new DateTime(2018, 4, 3), new DateTime(2018, 4, 14), 14),
            new EmployeeTask(2, 1, "Prepare Financial Reports", "Samantha Bright", new DateTime(2018, 4, 3), new DateTime(2018, 4, 7), 17),
            new EmployeeTask(3, 1, "Prepare Marketing Plan", "Arthur Miller", new DateTime(2018, 4, 7), new DateTime(2018, 4, 14), 11),
            new EmployeeTask(4, 0, "Create Action Plan to Improve Customer Engagement", "Robert Reagan", new DateTime(2017, 8, 8), new DateTime(2018, 4, 8), 23),
            new EmployeeTask(5, 4, "Update Personnel Files", "Greta Sims", new DateTime(2017, 8, 8), new DateTime(2017, 10, 18), 100),
            new EmployeeTask(6, 4, "Review Health Insurance Options", "Brett Wade", new DateTime(2017, 9, 27), new DateTime(2017, 11, 10), 37),
            new EmployeeTask(7, 4, "Choose Between PPO and HMO Health Plan", "Sandra Johnson", new DateTime(2017, 12, 13), new DateTime(2018, 3, 23), 17),
            new EmployeeTask(8, 4, "Update Google Adwords Strategy", "Ed Holmes", new DateTime(2017, 8, 23), new DateTime(2017, 12, 23), 45),
            new EmployeeTask(9, 4, "Create New Brochure Design", "Barb Banks", new DateTime(2018, 1, 3), new DateTime(2018, 3, 14), 17),
            new EmployeeTask(10, 4, "Obtain Price Quote for New Brochure", "Kevin Carter", new DateTime(2018, 2, 1), new DateTime(2018, 3, 15), 18),
            new EmployeeTask(11, 4, "Brochure Design Review", "Cindy Stanwick", new DateTime(2017, 8, 22), new DateTime(2017, 10, 28), 4),
            new EmployeeTask(12, 4, "Review Website Redesign Strategy", "Sammy Hill", new DateTime(2017, 9, 16), new DateTime(2018, 3, 6), 73),
            new EmployeeTask(13, 4, "Roll Out New Website", "Davey Jones", new DateTime(2017, 11, 7), new DateTime(2018, 2, 6), 9),
            new EmployeeTask(14, 4, "Update Sales/Marketing Strategy", "Victor Norris", new DateTime(2017, 12, 13), new DateTime(2018, 4, 2), 5),
            new EmployeeTask(15, 4, "Update Sales/Revenue Report", "Mary Stern", new DateTime(2017, 12, 25), new DateTime(2018, 4, 2), 4),
            new EmployeeTask(16, 4, "Direct vs Online Sales Comparison Report", "Robin Cosworth", new DateTime(2018, 1, 2), new DateTime(2018, 3, 20), 14),
            new EmployeeTask(17, 4, "Review Sales Report and Approve Modifications", "Kelly Rodriguez", new DateTime(2017, 9, 4), new DateTime(2017, 10, 30), 8),
            new EmployeeTask(18, 4, "Update R&D Strategy", "James Anderson", new DateTime(2017, 11, 13), new DateTime(2017, 12, 4), 12),
            new EmployeeTask(19, 4, "Discuss Updated R&D Strategy", "Antony Remmen", new DateTime(2017, 10, 29), new DateTime(2017, 12, 31), 14),
            new EmployeeTask(20, 4, "Update QA Strategy", "Olivia Peyton", new DateTime(2017, 10, 31), new DateTime(2017, 11, 2), 18),
            new EmployeeTask(21, 4, "Schedule Training Events", "Taylor Riley", new DateTime(2017, 11, 19), new DateTime(2018, 4, 7), 21),
            new EmployeeTask(22, 4, "Approve Hiring of John Jeffers", "Amelia Harper", new DateTime(2018, 1, 7), new DateTime(2018, 4, 8), 10),
            new EmployeeTask(23, 0, "Increase Average Subscription Price", "Wally Hobbs", new DateTime(2017, 8, 9), new DateTime(2017, 9, 13), 96),
            new EmployeeTask(24, 23, "Update Non-Compete Agreements", "Brad Jameson", new DateTime(2017, 8, 9), new DateTime(2017, 9, 3), 96),
            new EmployeeTask(25, 23, "Update Employee Records with New NDA", "Karen Goodson", new DateTime(2017, 8, 23), new DateTime(2018, 9, 10), 100)
        };
    }
}

Program.cs

// ...
builder.Services.AddSingleton<EmployeeTaskService>();

Use the following properties to align column captions:

• DxTreeList.ColumnCaptionAlignment
• DxTreeListColumn.CaptionAlignment

Implements

TextAlignment
