DxChartConstantLineLabel.Visible Property

Specifies whether the constant line label is visible.

Namespace: DevExpress.Blazor

Assembly: DevExpress.Blazor.v24.2.dll

NuGet Package: DevExpress.Blazor

#Declaration

C#
[DefaultValue(true)]
[Parameter]
public bool Visible { get; set; }

#Property Value

Type Default Description
Boolean true

true to display the label; otherwise, false.

#Remarks

The following example hides the constant line label:

razor
<DxChart Data="@SalesData">
    <DxChartValueAxis>
        <DxChartConstantLine Value="1000" >
            <DxChartConstantLineLabel Visible="false"/>
        </DxChartConstantLine>
    </DxChartValueAxis>
    <DxChartLineSeries Name="2017"
                       Filter="@((SaleInfo s) => s.Date.Year == 2017)"
                       ArgumentField="@(s => s.City)"
                       ValueField="@(s => s.Amount)"
                       SummaryMethod="Enumerable.Sum" />
    <DxChartTitle Text="Sales Info" />
    <DxChartLegend Position="RelativePosition.Outside" HorizontalAlignment="HorizontalAlignment.Right" />
</DxChart>

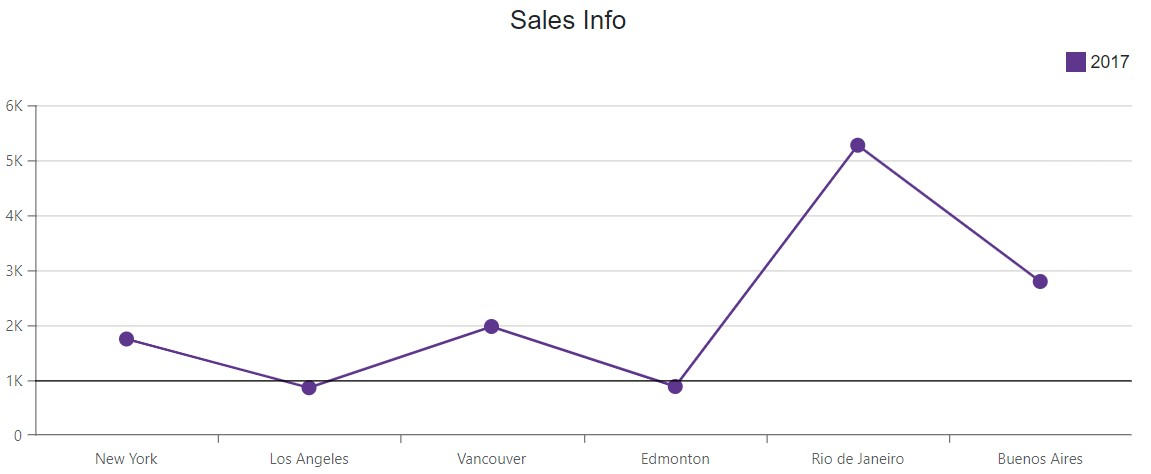

DxChartConstantLine - Label visibility
