DxChartAxisTick.Opacity Property

Specifies the tick transparency.

Namespace: DevExpress.Blazor

Assembly: DevExpress.Blazor.v24.2.dll

NuGet Package: DevExpress.Blazor

#Declaration

C#
[Parameter]
public double Opacity { get; set; }

#Property Value

Type Default Description
Double 1

The opacity value.

#Remarks

Use the Opacity property to specify tick transparency. The property accepts a value from 0 to 1, where 0 makes ticks transparent and 1 makes them opaque. You can also change the tick color.

The following code snippet specifies the color and transparency of ticks:

Razor
@using Chart.Data
@using System.Drawing;

<DxChart Data="@forecasts">
    <DxChartLineSeries ArgumentField="@((WeatherForecast i) => i.Date)"
                       ValueField="@((WeatherForecast i) => i.TemperatureF)"
                       Name="Temperature, F" />
    <DxChartValueAxis>
        <DxChartAxisTick Color="Color.Red" Opacity="0.5" />
    </DxChartValueAxis>
</DxChart>

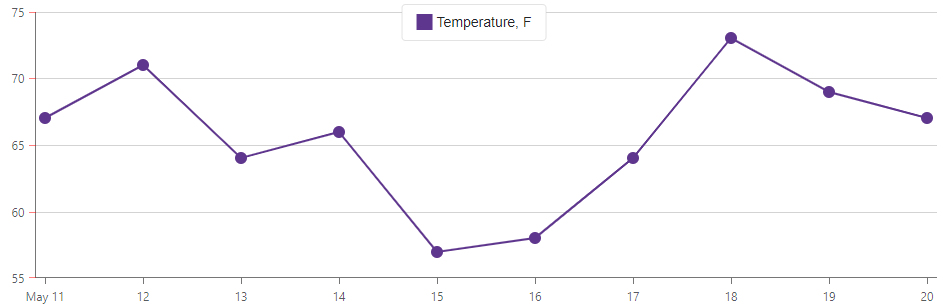

Opaque minor ticks
