ChartAxisInterval.Second Property

Returns an interval of one second.

Namespace: DevExpress.Blazor

Assembly: DevExpress.Blazor.v24.1.dll

NuGet Package: DevExpress.Blazor

Declaration

public static ChartAxisInterval Second { get; }

Property Value

Type	Description
ChartAxisInterval	A ChartAxisInterval structure object.

Remarks

The Chart automatically calculates the interval between major and minor ticks based on the axis values. Use the TickInterval and MinorTickInterval properties to specify custom intervals.

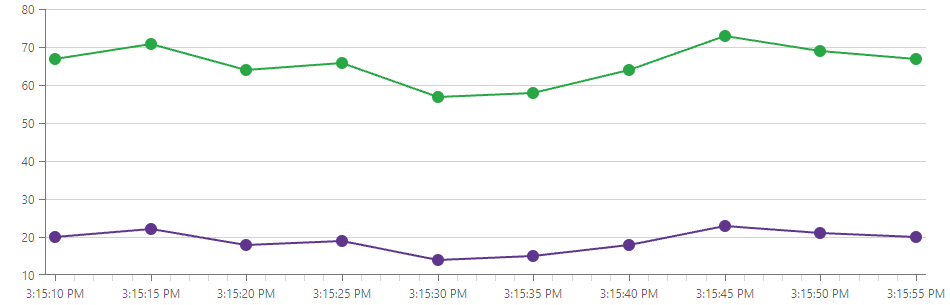

The following example sets the tick interval to 5 seconds for major ticks and one second for minor ticks:

<DxChart Data="@forecasts">
    <DxChartLineSeries ArgumentField="@((WeatherForecast i) => i.Date)"
                       ValueField="@((WeatherForecast i) => i.TemperatureC)"
                       Name="Temperature, C" />
    <DxChartLineSeries ArgumentField="@((WeatherForecast i) => i.Date)"
                       ValueField="@((WeatherForecast i) => i.TemperatureF)"
                       Name="Temperature, F" />
    <DxChartArgumentAxis TickInterval="ChartAxisInterval.Seconds(5)"
                         MinorTickInterval="ChartAxisInterval.Second">
        <DxChartAxisMinorTick Visible="true" />
    </DxChartArgumentAxis>
    <DxChartLegend Visible="false" />
</DxChart>
