ChartElementFormat.Billions(Nullable<Byte>) Method

Displays numbers as a billion.

Namespace: DevExpress.Blazor

Assembly: DevExpress.Blazor.v23.2.dll

NuGet Package: DevExpress.Blazor

Declaration

public static ChartElementFormat Billions(
    byte? precision = null
)

Optional Parameters

Name	Type	Default	Description
precision	Nullable<Byte>	null	Specifies a number of digits in the fractional part of the value.

Returns

Type	Description
ChartElementFormat	A ChartElementFormat enumeration value.

Remarks

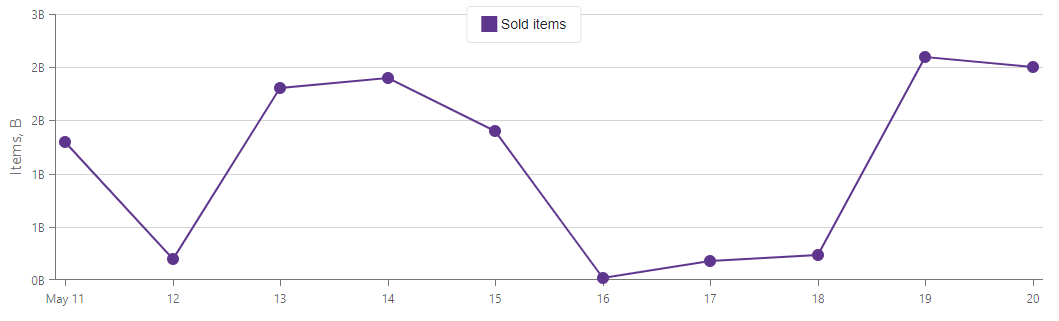

Call the Billions method to format a number as a billion, for example, 1 100 000 000.11 → 1B. You can use this method for axis and series labels. The following code snippet calls the method for the value axis of the Chart:

<DxChart Data="@forecasts">
    <DxChartValueAxis>
        <DxChartAxisLabel Format="ChartElementFormat.Billions()"></DxChartAxisLabel>
        <DxChartAxisTitle Text="Items, B"></DxChartAxisTitle>
    </DxChartValueAxis>
    @* ... *@
</DxChart>

You can also use the precision parameter to specify the number of digits in the fractional part of a value. For example, if precision is 2, values are formatted as 1 200 000 000 → 1.20B. This parameter is optional.
