TreeViewControl.ShowFocusedRectangle Property

Gets or sets if the focus rectangle is visible. This is a dependency property.

Namespace: DevExpress.Xpf.Grid

Assembly: DevExpress.Xpf.Grid.v26.1.dll

Declaration

C#

public bool ShowFocusedRectangle { get; set; }

VB.NET

Public Property ShowFocusedRectangle As Boolean

Property Value

Type	Default	Description
Boolean	false	true if the focus rectangle is visible; otherwise, false.

Remarks

Use FocusedRowBorderTemplate to customize focused node border appearance. The FocusedRowBorderTemplate is in effect only if the ShowFocusedRectangle property is true, and the AllowEditing property is false.

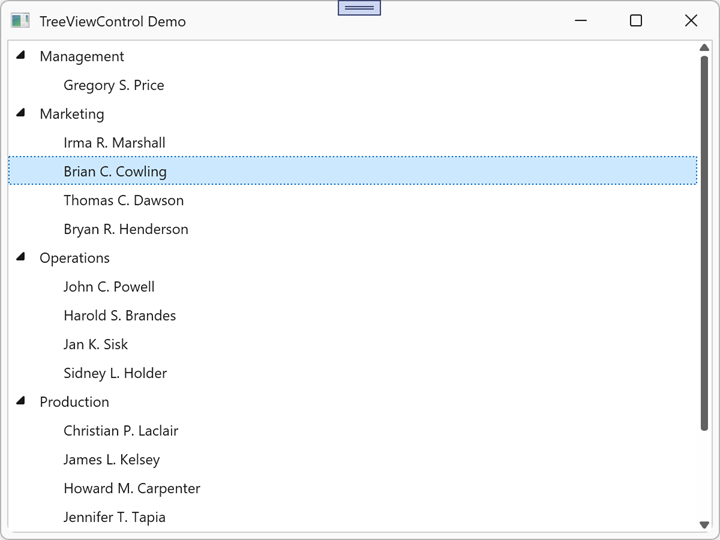

Example: Display a Rectangle around the Focused Node

The following example displays a rectangle around the focused node:

XAML

<dx:ThemedWindow x:Class="TreeViewControlApp.MainWindow"
                 xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
                 xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
                 xmlns:dx="http://schemas.devexpress.com/winfx/2008/xaml/core"
                 xmlns:dxg="http://schemas.devexpress.com/winfx/2008/xaml/grid"
                 Title="TreeViewControl Demo" Height="450" Width="600">
        <dxg:TreeViewControl x:Name="tree"
                             ChildNodesPath="Employees"
                             TreeViewFieldName="Name"
                             ShowFocusedRectangle="True"
                             AllowEditing="False">
        </dxg:TreeViewControl>
</dx:ThemedWindow>
