DataViewBase.ShowSortIndicator Property

Gets or sets whether to display the sort indicator within all column headers. This is a dependency property.

Namespace: DevExpress.Xpf.Grid

Assembly: DevExpress.Xpf.Grid.v26.1.Core.dll

Declaration

C#

public bool ShowSortIndicator { get; set; }

VB.NET

Public Property ShowSortIndicator As Boolean

Property Value

Type	Default	Description
Boolean	True	true to display the sort indicator within all column headers; false to hide the sort indicator within all column headers.

Remarks

The ShowSortIndicator property has lower priority than the ColumnBase.ShowSortIndicator property.

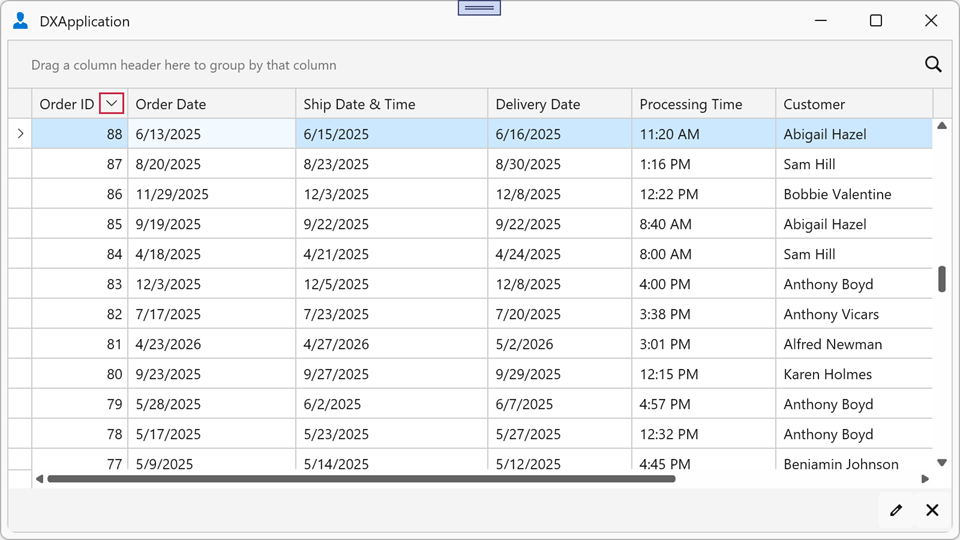

Example: Display the Sort Indicator Within All Columns

The following example displays the sort indicator within all column headers in the TableView:

XAML

<dx:ThemedWindow xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
                 xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
                 xmlns:dx="http://schemas.devexpress.com/winfx/2008/xaml/core"
                 xmlns:dxg="http://schemas.devexpress.com/winfx/2008/xaml/grid">
    <dxg:GridControl ItemsSource="{Binding Orders}">
        <dxg:GridControl.View>
            <dxg:TableView AllowSorting="True"
                           ShowSortIndicator="True"/>
        </dxg:GridControl.View>
        <dxg:GridControl.Columns>
            <dxg:GridColumn FieldName="ShipDate" Header="Ship Date"/>
            <dxg:GridColumn FieldName="CustomerName" Header="Customer"/>
        </dxg:GridControl.Columns>
    </dxg:GridControl>
</dx:ThemedWindow>
