TableView.TopPanelBackground Property

Gets or sets the background brush for the top panel area that contains the Group Panel and Search Panel. This is a dependency property.

Namespace: DevExpress.Xpf.Grid

Assembly: DevExpress.Xpf.Grid.v26.1.dll

Declaration

C#

public Brush TopPanelBackground { get; set; }

VB.NET

Public Property TopPanelBackground As Brush

Property Value

Type	Default	Description
Brush	null	A Brush value.

Remarks

If the TopPanelBackground property is null, the TableView applies the current theme’s background brush.

Example

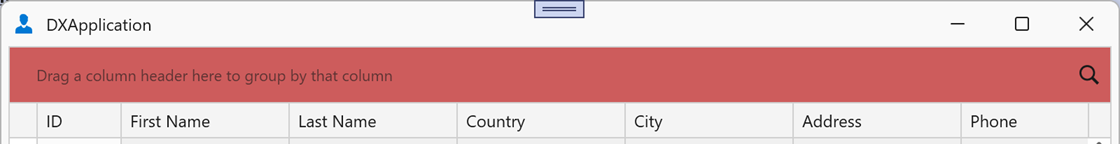

The following example sets a background brush for the top panel:

<dx:ThemedWindow x:Class="TopPanelBackgroundExample.MainWindow"
                 xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
                 xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
                 xmlns:dx="http://schemas.devexpress.com/winfx/2008/xaml/core"
                 xmlns:dxg="http://schemas.devexpress.com/winfx/2008/xaml/grid"
                 ... >
    <dxg:GridControl>
        <dxg:GridControl.View>
            <dxg:TableView
                ShowSearchPanelMode="Always"
                TopPanelBackground="IndianRed"/>
        </dxg:GridControl.View>
    </dxg:GridControl>
</dx:ThemedWindow>
