GridViewBase.GroupPanelRightContentTemplate Property

Gets or sets the template that displays content in the right part of the Group Panel. This is a dependency property.

Namespace: DevExpress.Xpf.Grid

Assembly: DevExpress.Xpf.Grid.v26.1.dll

Declaration

C#

public DataTemplate GroupPanelRightContentTemplate { get; set; }

VB.NET

Public Property GroupPanelRightContentTemplate As DataTemplate

Property Value

Type	Default	Description
DataTemplate	null	A DataTemplate that displays content in the right part of the Group Panel.

Remarks

The GroupPanelRightContentTemplate property allows you to display content (for example, a button or status indicator) in the right part of the Group Panel.

Example

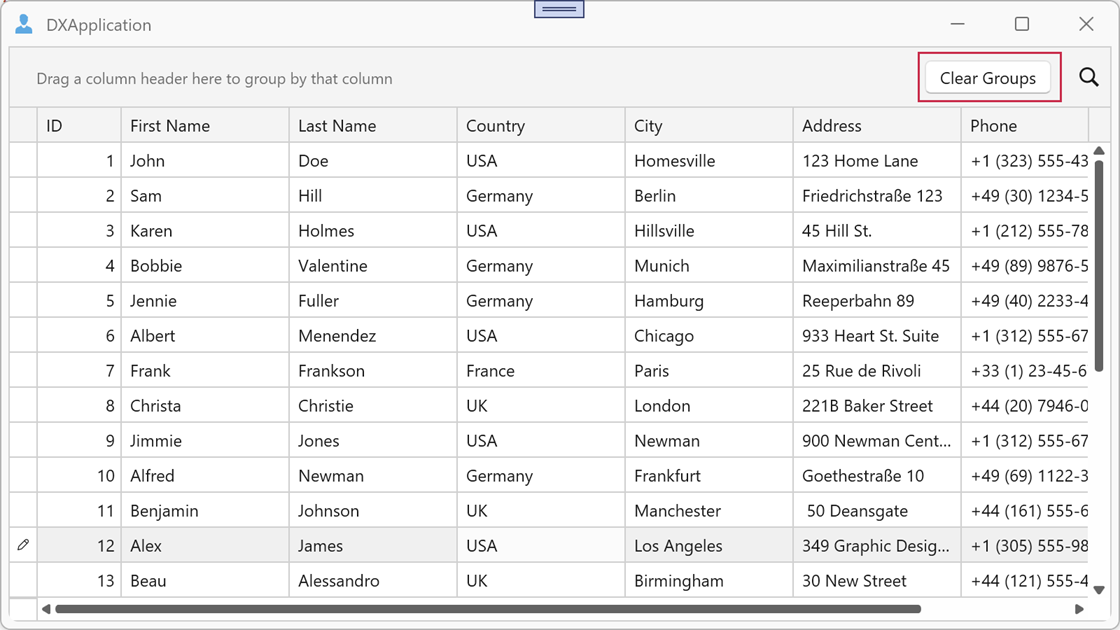

The following example adds the Clear Groups button to the right part of the Group Panel:

<dx:ThemedWindow x:Class="GroupPanelExample.MainWindow"
                 xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
                 xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
                 xmlns:dx="http://schemas.devexpress.com/winfx/2008/xaml/core"
                 xmlns:dxg="http://schemas.devexpress.com/winfx/2008/xaml/grid"
                 ... >
    <Window.Resources>
        <DataTemplate x:Key="GroupPanelRightTemplate">
            <Button Content="Clear Groups"
                    Command="dxg:GridCommands.ClearGrouping"
                    CommandTarget="{Binding Path=View, ElementName=grid}"
                    VerticalAlignment="Center" Margin="4,0,4,0"/>
        </DataTemplate>
    </Window.Resources>

    <dxg:GridControl x:Name="grid" ItemsSource="{Binding Items}">
        <dxg:GridControl.View>
            <dxg:TableView
                ShowGroupPanel="True"
                GroupPanelRightContentTemplate="{StaticResource GroupPanelRightTemplate}"/>
        </dxg:GridControl.View>
    </dxg:GridControl>
</dx:ThemedWindow>

The GroupPanelRightContentTemplate property is supported in master-detail scenarios. You can specify separate templates for each view in the hierarchy:

<dxg:GridControl x:Name="masterGridControl" ItemsSource="{Binding Items}">
    <dxg:GridControl.View>
        <dxg:TableView GroupPanelRightContentTemplate="{StaticResource MasterRightTemplate}"/>
    </dxg:GridControl.View>
    <dxg:GridControl.DetailDescriptor>
        <dxg:DataControlDetailDescriptor ItemsSourceBinding="{Binding Children}">
            <dxg:GridControl AutoGenerateColumns="AddNew">
                <dxg:GridControl.View>
                    <dxg:TableView ShowGroupPanel="True"
                                   GroupPanelRightContentTemplate="{StaticResource DetailRightTemplate}"/>
                </dxg:GridControl.View>
            </dxg:GridControl>
        </dxg:DataControlDetailDescriptor>
    </dxg:GridControl.DetailDescriptor>
</dxg:GridControl>
