GridViewBase.GroupPanelDragTextHorizontalAlignment Property

Gets or sets the horizontal alignment of the Group Panel text. This is a dependency property.

Namespace: DevExpress.Xpf.Grid

Assembly: DevExpress.Xpf.Grid.v26.1.dll

Declaration

C#

public HorizontalAlignment? GroupPanelDragTextHorizontalAlignment { get; set; }

VB.NET

Public Property GroupPanelDragTextHorizontalAlignment As HorizontalAlignment?

Property Value

Type	Default	Description
Nullable<HorizontalAlignment>	null	A value that specifies the hint alignment.

Remarks

The GroupPanelDragTextHorizontalAlignment property controls the horizontal alignment of the Group Panel text.

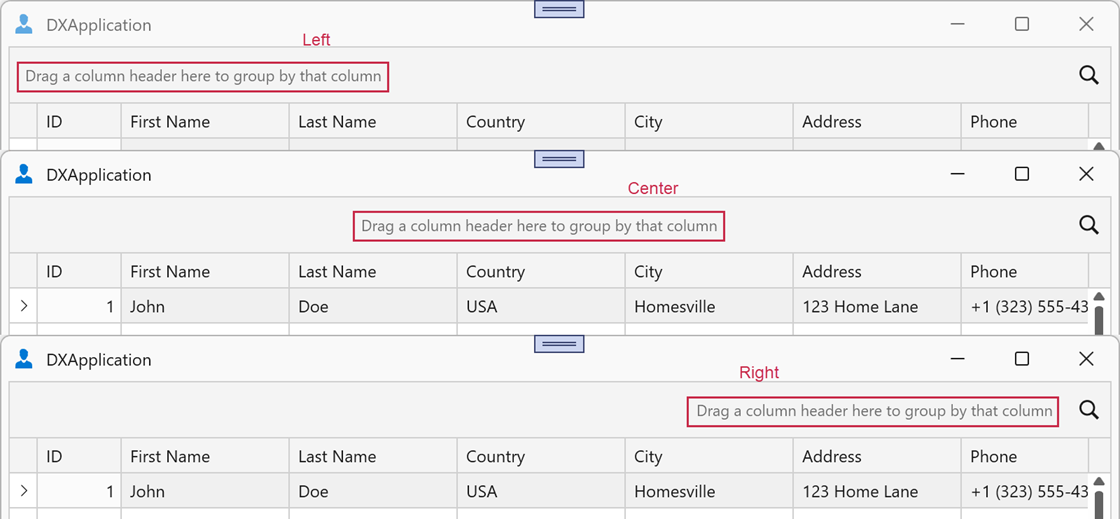

When the GroupPanelDragTextHorizontalAlignment property is null, the current theme applies the following text alignment:

• Left when the SearchPanelPosition property is Default.
• Center when the search panel overlaps the group panel.

Example

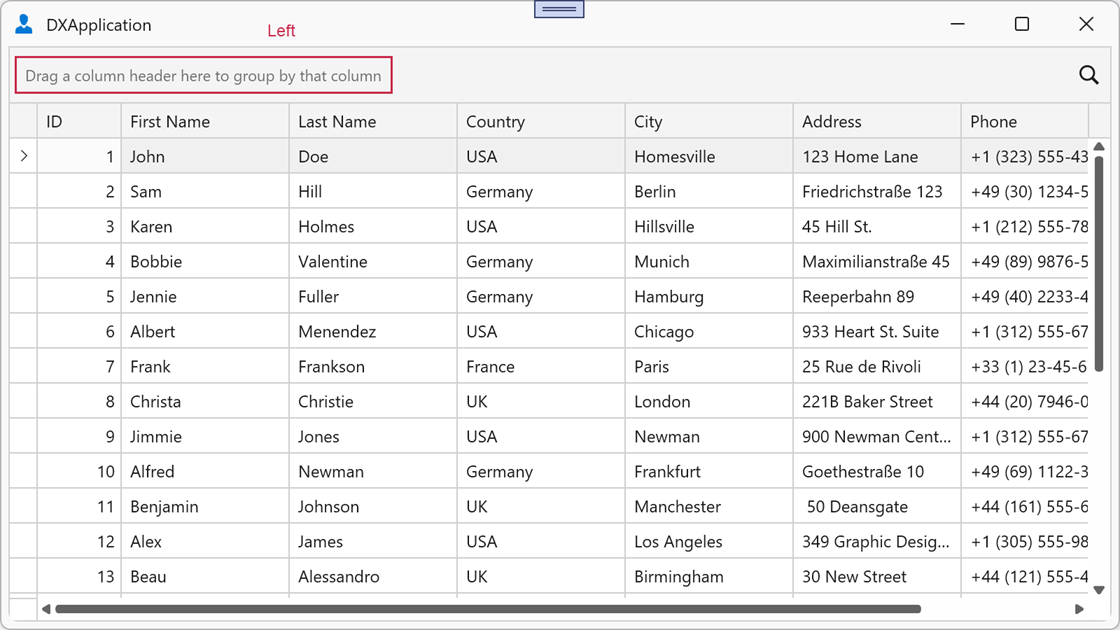

The following example aligns the Group Panel text (Drag a column header here to group by that column) to the left:

<dx:ThemedWindow x:Class="GroupPanelExample.MainWindow"
                 xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
                 xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
                 xmlns:dx="http://schemas.devexpress.com/winfx/2008/xaml/core"
                 xmlns:dxg="http://schemas.devexpress.com/winfx/2008/xaml/grid"
                 ... >
    <dxg:GridControl ItemsSource="{Binding Items}">
        <dxg:GridControl.View>
            <dxg:TableView
                ShowGroupPanel="True"
                GroupPanelDragTextHorizontalAlignment="Left"/>
        </dxg:GridControl.View>
    </dxg:GridControl>
</dx:ThemedWindow>
