dxCreateMessageDialog(string,TMsgDlgType,TMsgDlgButtons,TMsgDlgBtn,TdxMessageDialogHyperlinkClickDelegate,TdxMessageDialogShowHyperlinkHintDelegate) Method

Creates a message dialog box with a specified dialog type and message. Allows you to specify a set of buttons and move focus to one of the buttons.

Declaration

function dxCreateMessageDialog(const AMessage: string; ADialogType: TMsgDlgType; AButtons: TMsgDlgButtons; ADefaultButton: TMsgDlgBtn; const AHyperlinkClickProc: TdxMessageDialogHyperlinkClickDelegate = nil; const AShowHyperlinkHintProc: TdxMessageDialogShowHyperlinkHintDelegate = nil): TdxMessageDialogForm;

Parameters

Name	Type	Description
AMessage	string	Message dialog box content. The AMessage parameter value initializes the created form’s Message property. The AMessage parameter supports a set of BBCode-inspired tags that allow you to format message box content.
ADialogType	TMsgDlgType	A message dialog box type that determines the predefined caption, system icon, and sound of the message dialog box. This parameter value initializes the created form’s DialogType property.
AButtons	TMsgDlgButtons	A set of buttons on the message dialog box form.
ADefaultButton	TMsgDlgBtn	Optional. A button type. Use this parameter to specify the button that has focus when the message box appears. If this parameter is omitted, the first button on the message box has focus (TMsgDlgBtn.FirstButton).
AHyperlinkClickProc	TdxMessageDialogHyperlinkClickDelegate	Optional. Specifies a procedure that handles a click on a hyperlink within the displayed message. The AHyperlinkClickProc parameter value initializes the HyperlinkClickProc property of the created message dialog box form. You can define a click handler procedure to identify the clicked hyperlink and prevent certain links from being activated. Tip Refer to the TdxMessageDialogHyperlinkClickDelegate procedural type description for detailed information and a code example.
AShowHyperlinkHintProc	TdxMessageDialogShowHyperlinkHintDelegate	Optional. Specifies a procedure that handles a hyperlink hint display event. The AShowHyperlinkHintProc parameter value initializes the ShowHyperlinkHintProc property of the created message dialog box form. You can define a hyperlink hint handler procedure to change the predefined hint message (the hyperlink target URI) depending on certain conditions in your application. Tip Refer to the TdxMessageDialogShowHyperlinkHintDelegate procedural type description for detailed information and a code example.

Returns

Type	Description
TdxMessageDialogForm	The created message dialog box form.

Remarks

You can call the dxCreateMessageDialog function instead of the TdxMessageDialogForm constructor. The created message dialog box has the mdsMessageDlg style.

Note

The dxUseStandardMessageDialogs global variable has no effect on dxCreateMessageDialog function calls.

Code Examples

Display a Message Box and Identify the User Action

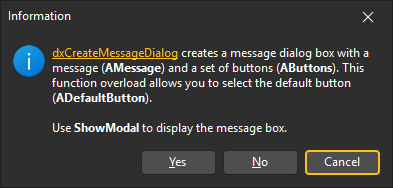

The code example in this section calls the dxCreateMessageDialog function to create a message box with Yes, No, and Cancel buttons, and moves focus to Cancel. This example displays the message box using ShowModal and identifies the action used to close the message box.

Delphi

uses
  dxMessageDialog, // Declares the dxCreateMessageDialog method
  Winapi.Windows;  // Declares WinAPI constants
// ...

procedure TMyForm.DemonstrateDxCreateMessageDialog2;
var
  AMessage, AHelpURL, AShowModalURL: string;
  ADialogType: TMsgDlgType;
  AButtons: TMsgDlgButtons;
  ADefaultButton: TMsgDlgBtn;
  ADialog: TdxMessageDialogForm;
  ACloseAction: Integer;
begin
  // Define a formatted message with hyperlinks (using the BBCode-inspired markup)
  AHelpURL := 'https://docs.devexpress.com/VCL/dxMessageDialog.dxCreateMessageDialog(99472B0D)';
  AShowModalURL := 'https://docwiki.embarcadero.com/Libraries/en/Vcl.Forms.TCustomForm.ShowModal';
  AMessage :=
    '[URL=' + AHelpURL + ']dxCreateMessageDialog[/URL] creates a message dialog box ' +
    'with a message ([B]AMessage[/B]) and a set of buttons ([B]AButtons[/B]). ' +
    'This function overload allows you to select the default button ([B]ADefaultButton[/B]).' +
    sLineBreak + sLineBreak +
    'Use [URL=' + AShowModalURL + ']ShowModal[/URL] to display the message box.';

  ADialogType := mtInformation; // Defines the "Information" dialog title, icon, and sound
  AButtons := mbYesNoCancel;    // Defines a button set (Yes, No, and Cancel)
  ADefaultButton := mbCancel;   // Moves focus to the Cancel button

  // Create a message dialog form
  ADialog := dxCreateMessageDialog(AMessage, ADialogType, AButtons, ADefaultButton);
  try
    ACloseAction := ADialog.ShowModal; // Displays the form as a modal dialog
  finally
    ADialog.Free; // Releases the message dialog form once a user closes it
  end;

  // Identify the action used to close the message box
  case ACloseAction of
    IDYES:    Caption := 'Yes is clicked';
    IDNO:     Caption := 'No is clicked';
    IDCANCEL: Caption := 'Cancel is clicked';
    0:        Caption := 'Failed to create a message box';
  end;
end;

C++

#include "dxMessageDialog.hpp" // Declares the dxCreateMessageDialog method
#include <Winapi.Windows.hpp> // Declares WinAPI constants

// Add the following linker directive to the corresponding CPP source file:
#pragma link "dxMessageDialog" // Required to use dxMessageDialog.hpp declarations
// ...

void __fastcall TMyForm::DemonstrateDxCreateMessageDialog2()
{
  UnicodeString AMessage, AHelpURL, AShowModalURL;
  TMsgDlgType ADialogType;
  TMsgDlgButtons AButtons;
  TMsgDlgBtn ADefaultButton;
  TdxMessageDialogForm *ADialog;
  int ACloseAction;

  // Define a formatted message with hyperlinks (using the BBCode-inspired markup)
  AHelpURL = "https://docs.devexpress.com/VCL/dxMessageDialog.dxCreateMessageDialog(99472B0D)";
  AShowModalURL = "https://docwiki.embarcadero.com/Libraries/en/Vcl.Forms.TCustomForm.ShowModal";
  AMessage =
    "[URL=" + AHelpURL + "]dxCreateMessageDialog[/URL] creates a message dialog box "
    "with a message ([B]AMessage[/B]) and a set of buttons ([B]AButtons[/B]). "
    "This function overload allows you to select the default button ([B]ADefaultButton[/B])." +
    sLineBreak + sLineBreak +
    "Use [URL=" + AShowModalURL + "]ShowModal[/URL] to display the message box.";

  ADialogType = mtInformation; // Defines the "Information" dialog title, icon, and sound
  AButtons = mbYesNoCancel;    // Defines a button set (Yes, No, and Cancel)
  ADefaultButton = mbCancel;   // Moves focus to the Cancel button

  // Create a message dialog form
  ADialog = dxCreateMessageDialog(AMessage, ADialogType, AButtons, ADefaultButton);
  try
  {
    ACloseAction = ADialog->ShowModal(); // Displays the form as a modal dialog
  }
  __finally
  {
    delete ADialog; // Releases the message dialog form once a user closes it
  }

  // Identify the action used to close the message box
  switch (ACloseAction)
  {
    case IDYES:    Caption = "Yes is clicked"; break;
    case IDNO:     Caption = "No is clicked"; break;
    case IDCANCEL: Caption = "Cancel is clicked"; break;
    case 0:        Caption = "Failed to create a message box"; break;
  }
}

Display a Message Box with Custom Button Captions

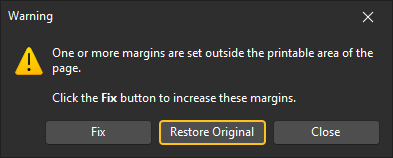

The code example in this section calls the dxCreateMessageDialog function to create a message box with three buttons, changes their captions to Fix, Restore Original, and Close, and moves focus to Restore Original. This example displays the message box using ShowModal and identifies the action used to close the message box.

Delphi

uses
  dxMessageDialog, // Declares the dxCreateMessageDialog method
  Winapi.Windows;  // Declares WinAPI constants
// ...

procedure TMyForm.DemonstrateDxCreateMessageDialog4;
var
  ADialog: TdxMessageDialogForm;
  AMessage: string;
  ACloseAction: Integer;
begin
  AMessage := 'One or more margins are set outside the printable area of the page.' +
    sLineBreak + sLineBreak + 'Click the [B]Fix[/B] button to increase these margins.';
  ADialog := dxCreateMessageDialog(AMessage, mtWarning, mbYesNoCancel, mbNo);
  try
    ADialog.FindButton(mbYes).Caption    := 'Fix';
    ADialog.FindButton(mbNo).Caption     := 'Restore Original';
    ADialog.FindButton(mbCancel).Caption := 'Close';
    ADialog.AlignButtons;              // Recalculates the button layout
    ACloseAction := ADialog.ShowModal; // Displays the form as a modal dialog
  finally
    ADialog.Free; // Releases the message dialog form once a user closes it
  end;

  // Identify the action used to close the message box
  case ACloseAction of
    IDYES:    Caption := 'Fix is clicked';
    IDNO:     Caption := 'Restore Original is clicked';
    IDCANCEL: Caption := 'Close is clicked';
    0:        Caption := 'Failed to create a message box';
  end;
end;

C++

#include "dxMessageDialog.hpp" // Declares the dxCreateMessageDialog method
#include <Winapi.Windows.hpp> // Declares WinAPI constants

// Add the following linker directive to the corresponding CPP source file:
#pragma link "dxMessageDialog" // Required to use dxMessageDialog.hpp declarations
// ...

void __fastcall TMyForm::DemonstrateDxCreateMessageDialog4()
{
  TdxMessageDialogForm *ADialog;
  UnicodeString AMessage;
  int ACloseAction;

  AMessage = UnicodeString("One or more margins are set outside the printable area of the page.") +
    sLineBreak + sLineBreak + "Click the [B]Fix[/B] button to increase these margins.";

  ADialog = dxCreateMessageDialog(AMessage, mtWarning, mbYesNoCancel, mbNo);
  try
  {
    ADialog->FindButton(mbYes)->Caption    = "Fix";
    ADialog->FindButton(mbNo)->Caption     = "Restore Original";
    ADialog->FindButton(mbCancel)->Caption = "Close";
    ADialog->AlignButtons();              // Recalculates the button layout
    ACloseAction = ADialog->ShowModal(); // Displays the form as a modal dialog
  }
  __finally
  {
    delete ADialog; // Releases the message dialog form once a user closes it
  }

  // Identify the action used to close the message box
  switch (ACloseAction)
  {
    case IDYES:    Caption = "Fix is clicked"; break;
    case IDNO:     Caption = "Restore Original is clicked"; break;
    case IDCANCEL: Caption = "Close is clicked"; break;
    case 0:        Caption = "Failed to create a message box"; break;
  }
}

Identify the Action Used to Close the Message Box

ShowModal returns one of the following values that identify actions used to close the message box:

IDOK

A user clicked the OK button to close the message box.

IDCANCEL

A user clicked the Cancel or Close button, or pressed Esc to close the message box.

IDABORT

A user clicked the Abort button to close the message box.

IDRETRY

A user clicked the Retry button to close the message box.

IDIGNORE

A user clicked the Ignore button to close the message box.

IDYES

A user clicked the Yes button to close the message box.

IDNO

A user clicked the No button to close the message box.
