Use Report Viewer Project and Form Templates

• Jun 05, 2026
• 6 minutes to read

The VCL Template Kit ships with automatically installed Project and Form templates for the ExpressReports Suite. These templates are designed to reduce time spent on repetitive project and form setup as well as improve onboarding for new VCL developers and boost productivity in experienced teams.

In this topic…

• Before You Begin
• Project Template
  • Result: Generated Project
    • App Deployment Settings
    • Sample Data and Layout
    • Run & Test the App
• Form Template
  • Result: Generated Form
    • Sample Data, Layout, and Deployment
    • Use the Generated Form
• Application Builder Options
  • Step 1 — Select Navigation Type
  • Step 2 — Add Views to the Application
  • Result: Generated Project
• Next Steps

Before You Begin

Note

• ExpressReports will require the purchase of our VCL Subscription + OR an active VCL Subscription (regular) with any active .NET subscription that includes DevExpress Reports for ASP.NET/JavaScript (these subscriptions include: Reporting, ASP.NET & Blazor (includes DevExtreme), DXperience, or Universal).
• ExpressDashboards will also require the purchase of our VCL Subscription + OR an active VCL Subscription (regular) with an active Universal Subscription that includes DevExpress Business Intelligence (BI) Dashboard.

Ensure that your development environment meets ExpressDashboards and ExpressReports prerequisites:

1. Microsoft Windows 10 or newer.
2. Embarcadero RAD Studio IDE 12.3 or newer (Community Edition IDEs are not supported).
3. DevExpress VCL v26.1.x.
4. The EdgeView2 SDK package installed from the GetIt package manager.

Project Template

The Report Viewer Application template creates a single-form application project that contains a TdxReportControl component.

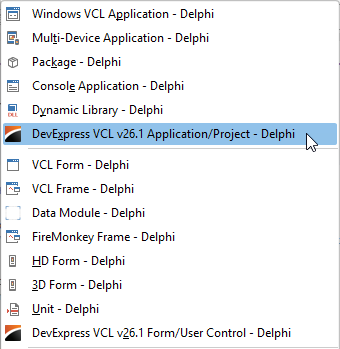

To run the Application/Project Wizard, select the following item in the RAD Studio IDE menu:

File → New → DevExpress VCL v26.1 Application/Project - Delphi

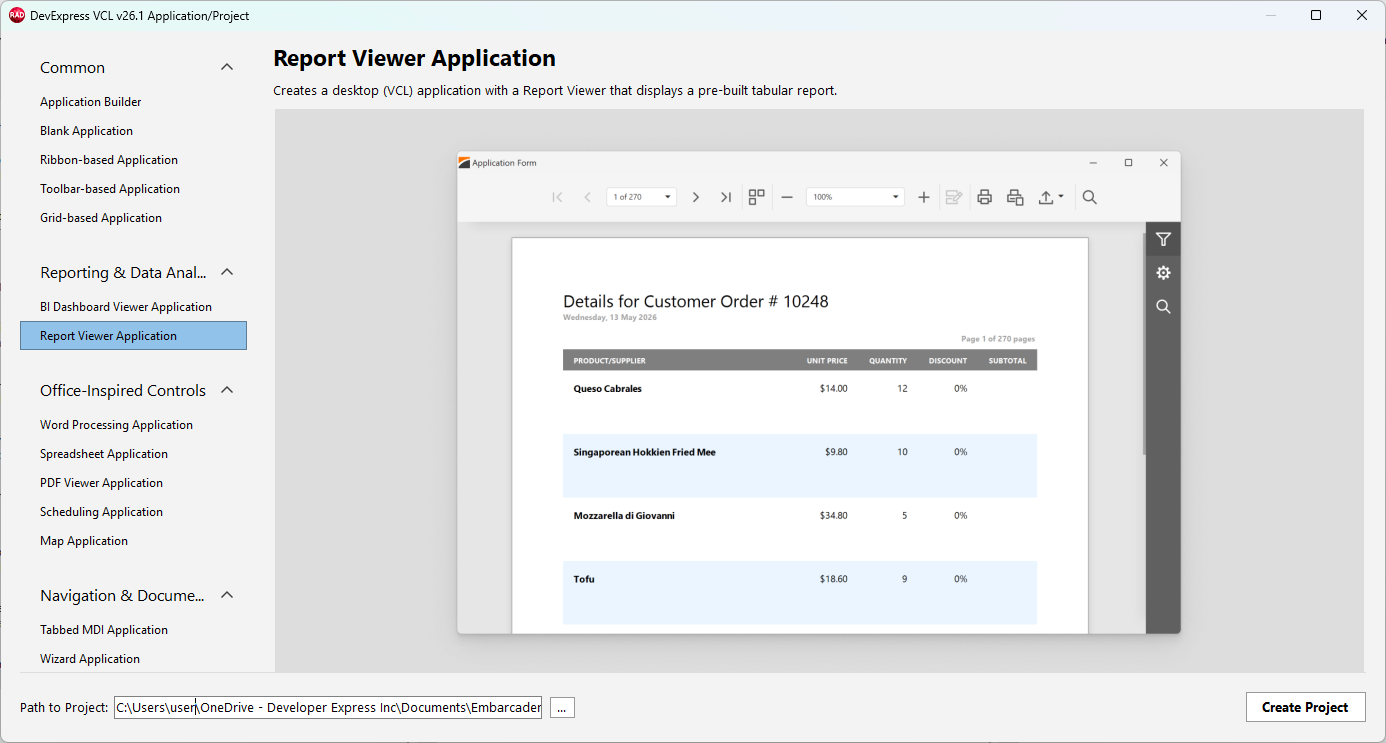

Select Report Viewer Application in the Reporting & Data Analytics category and click Create Project.

Result: Generated Project

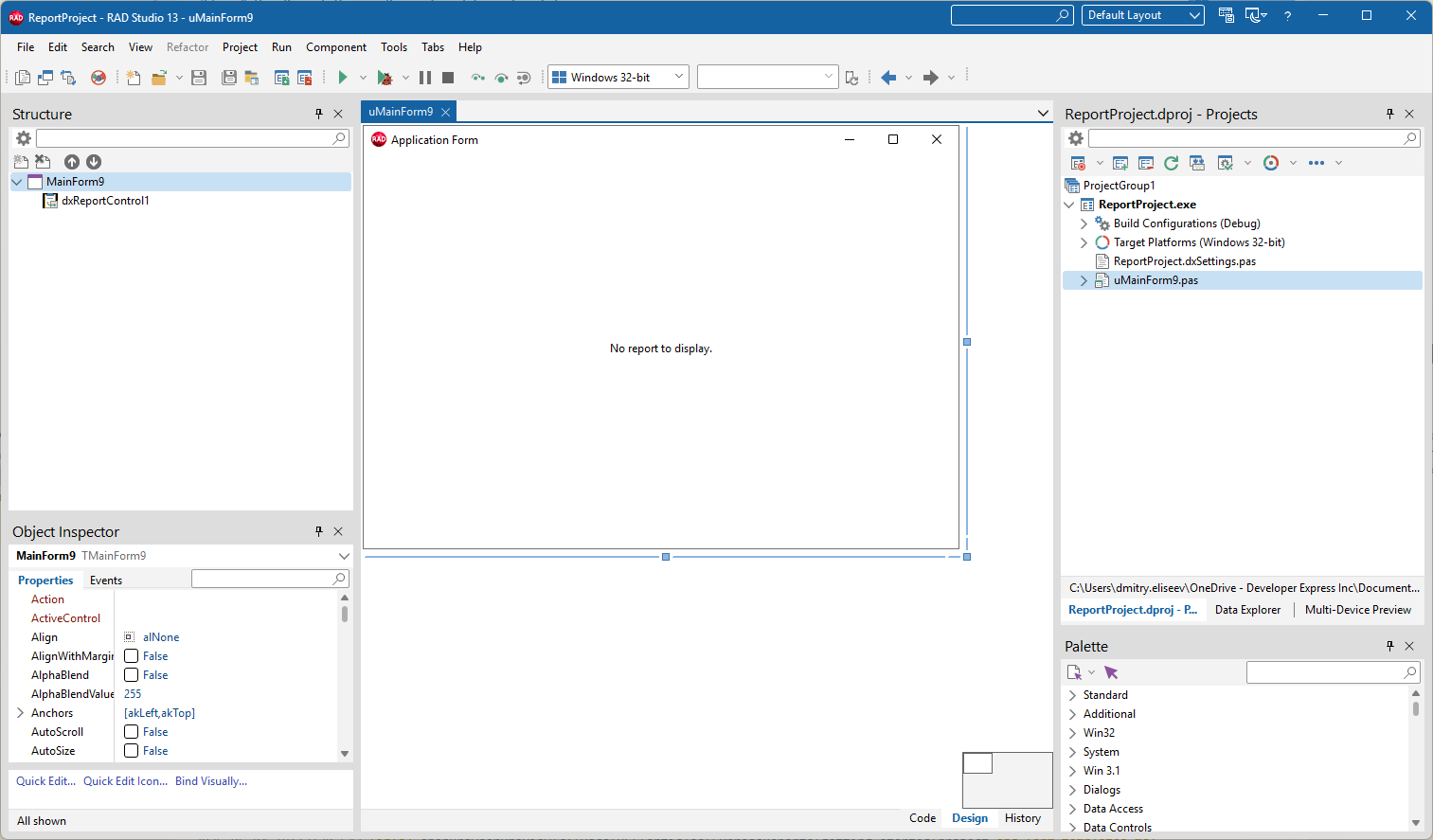

The TdxReportControl component occupies the main form area (the component’s Align property is set to alClient). The generated form is derived from the TdxForm class and encapsulates all best practices regarding app building for high-DPI multi-monitor environments.

App Deployment Settings

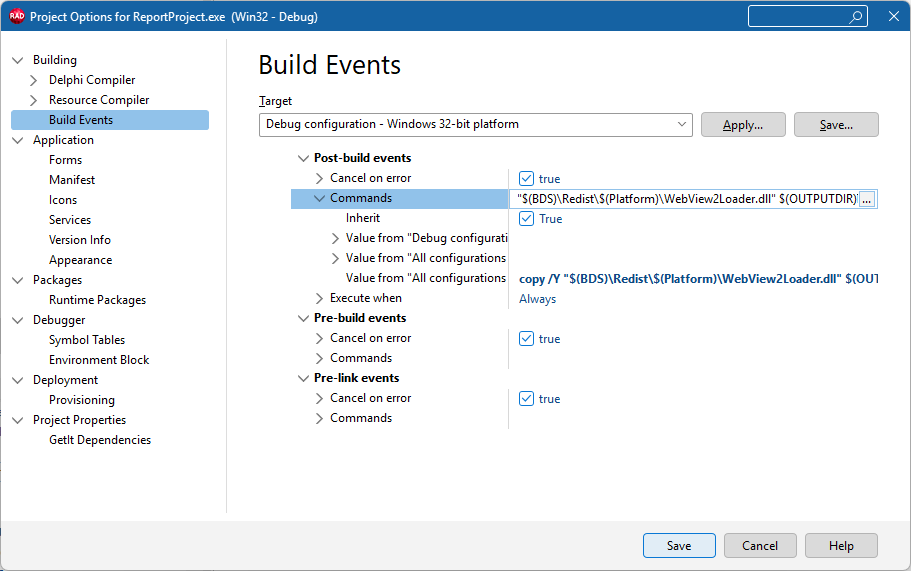

The generated Report Viewer project includes a Windows 32-bit build target, including all preconfigured post-build events required for automatic WebView2 Loader deployment:

Tip

You may need to manually add an extra build target (Windows 64-bit) and/or additional resources and dependencies according to your business needs and desired app functionality. Refer to the following help topics for detailed information in this regard:

VCL Reports/Dashboard App Deployment

Sample Data and Layout

The TdxReportControl component is empty at design time. The generated project includes the main form’s OnCreate event handler that creates a TdxBackendInMemoryJSONConnection component to load a sample JSON data file (OrderDetails.json) located within the nested Data project folder.

The same handler loads a sample dashboard layout from the TableReport.repx file located within the same Data folder.

Run & Test the App

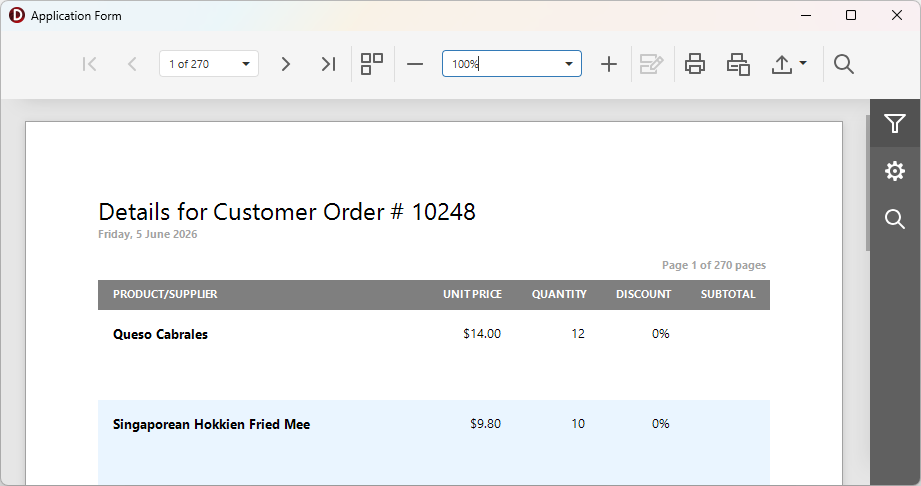

Build and run the generated project. Use built-in UI elements to navigate between report pages, print, and export report content (in any supported format).

Form Template

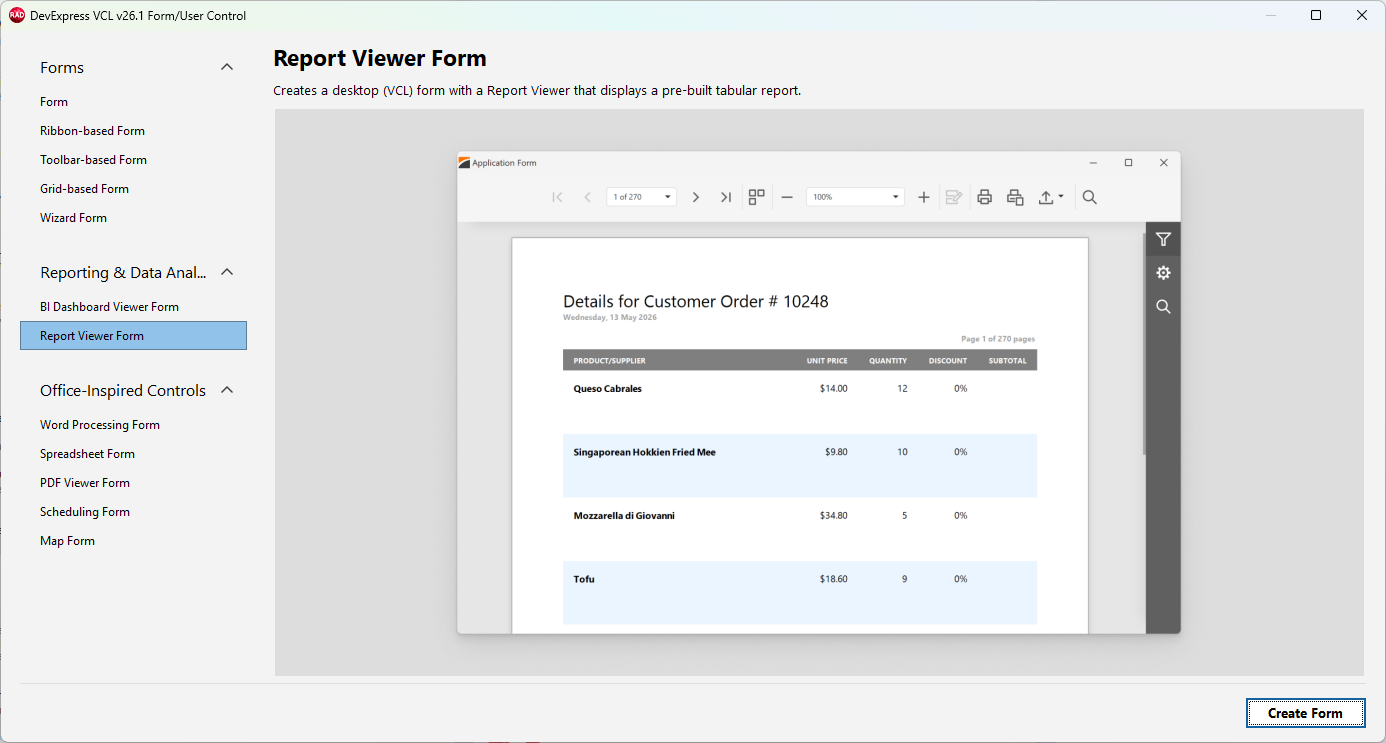

The Report Viewer Form template allows you to add a configured DevExpress form with a TdxReportControl component to an existing application.

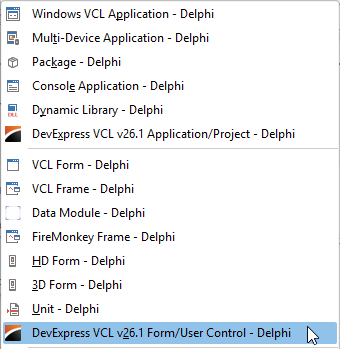

To run the Form/User Control Wizard, select the following item in the RAD Studio IDE menu:

File → New → DevExpress VCL v26.1 Application/Project - Delphi

Result: Generated Form

The template creates a child form derived from the TdxForm class. The TdxReportControl component occupies the form’s area similar to the main form created by the Report Viewer Application template.

Sample Data, Layout, and Deployment

The added form loads the same sample data and layout on form creation as the Report Viewer Application template. If the target project does not include post-build events required for WebView2 Loader deployment, the form template adds them automatically.

Use the Generated Form

The form template does not automatically associate the generated form with existing app functionality. You need to manually display the form in code. For example:

Delphi

uses
  uChildForm;  // Adds the generated form's unit explicitly

procedure TMainForm1.cxReportDisplayButton1Click(Sender: TObject);
begin
  ChildForm.Show;  // Displays the generated form
end;

Application Builder Options

Application Builder is a universal application template that allows you to choose/combine multiple target business scenarios, and different UI layouts and navigation options. You can add one or multiple views with pre-configured DevExpress UI controls based on project requirements.

The Application Builder template wizard contains two steps:

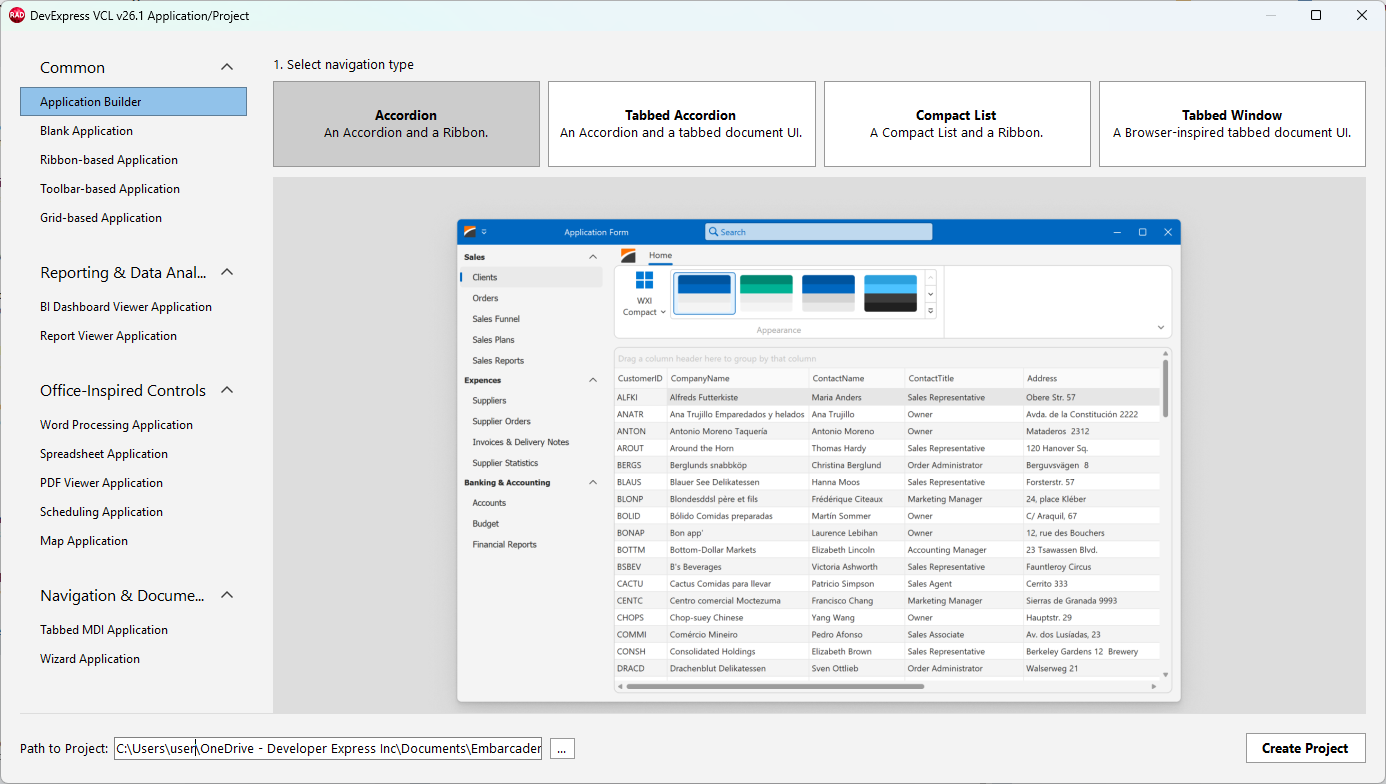

Step 1 — Select Navigation Type

This step allows you to select a navigation UI type (sidebar and/or tabbed MDI layout) designed to switch between multiple Views on the same application form:

Scroll the Application Builder pane down to select required Views (Step 2).

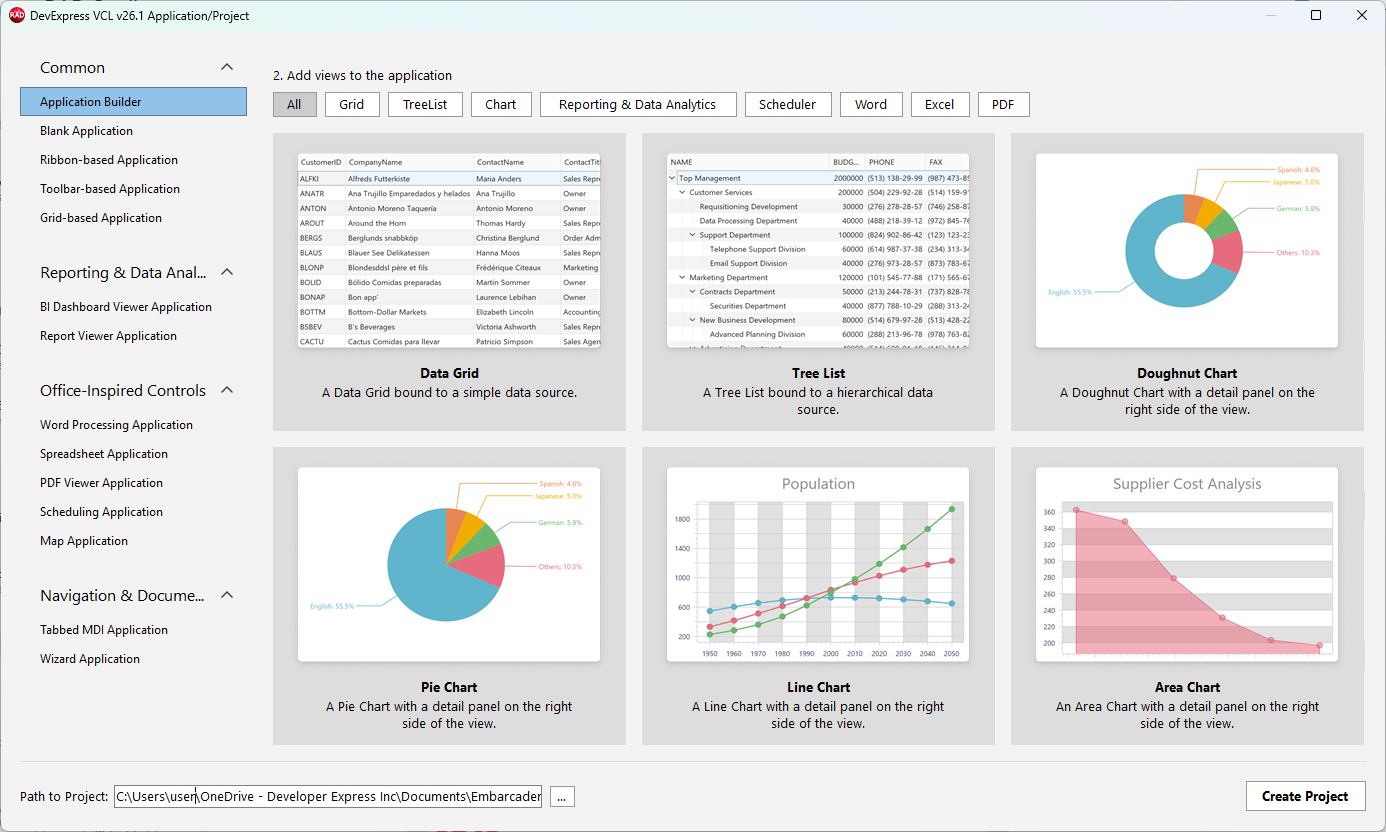

Step 2 — Add Views to the Application

Step 2 lists multiple options that allow you to add one or multiple Views dedicated to corresponding DevExpress UI controls.

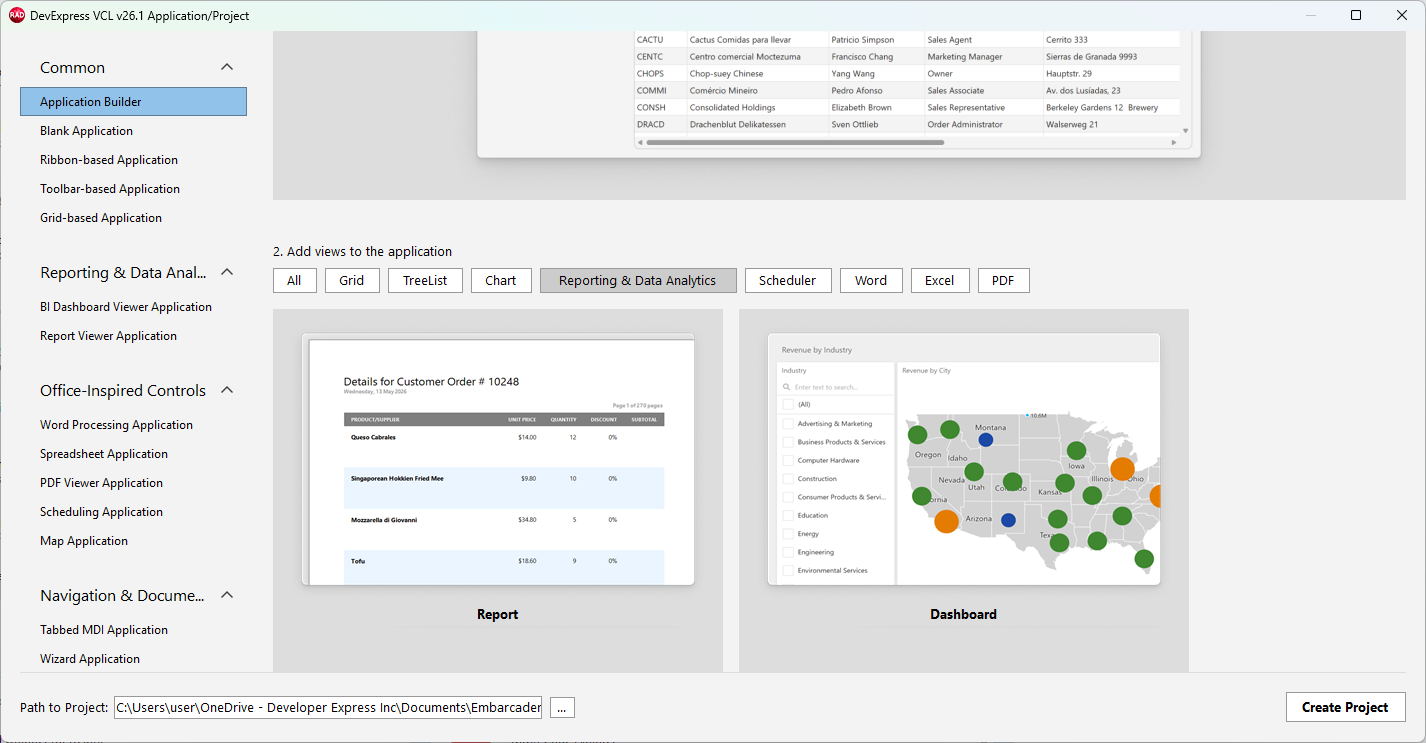

All available options are grouped into the following categories: All, Grid, TreeList, Chart, Reporting & Data Analysis, Scheduler, Word, Excel, and PDF. Select Reporting & Data Analytics to display Report and Dashboard Views.

You can click individual Views to select or deselect them. All selected Views are added to the generated project once you click Create Project.

Result: Generated Project

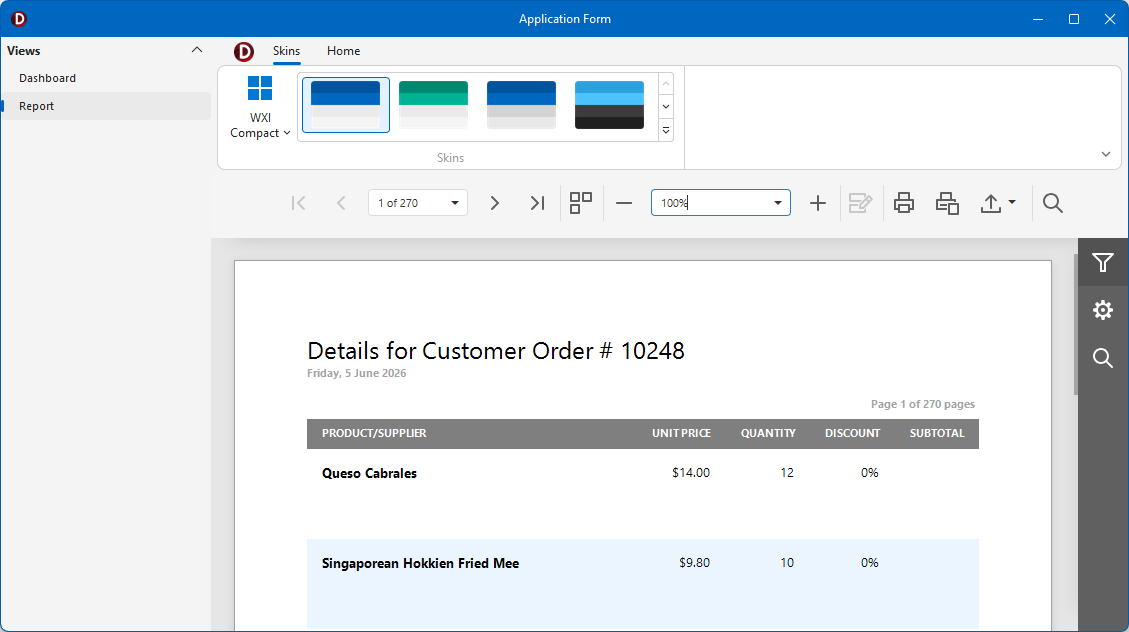

The generated project includes a TdxNavBar control as a sidebar and selected View forms displayed as frames. Each View includes a Ribbon UI.

Individual application Views use the same sample data and layouts as corresponding standalone project templates. Similar to standalone Report and Dashboard templates, the Application Builder template automatically adds post-build events required for WebView2 Loader deployment.

Next Steps

Review the following tutorials to get started with TdxReport and TdxReportControl components:

Read Tutorial: Create a Table Report

Basic Tutorial. Follow this tutorial to create a table report and display it in a VCL application. The tutorial loads JSON data from a remote source, defines a table report layout, and binds it to data using the Report Wizard dialog at design time.

Read Tutorial: Bind a Report to FireDAC Data

Follow this tutorial to create a table report and bind it to data using standard FireDAC components (TFDQuery and TFDConnection) shipped with the RAD Studio IDE.

Read Tutorial: Bind a Report to a Stored Procedure

Follow this tutorial to create a table report, bind it to a stored database procedure, and pass a report parameter to that procedure using Report Designer and Report Wizard dialogs at design time.
