GridDataViewBase.SearchPanelRightContentTemplate Property

Gets or sets the template designed to display additional UI elements to the right of the Search Panel. This is a dependency property.

Namespace: DevExpress.Xpf.Grid

Assembly: DevExpress.Xpf.Grid.v26.1.Core.dll

Declaration

C#

public DataTemplate SearchPanelRightContentTemplate { get; set; }

VB.NET

Public Property SearchPanelRightContentTemplate As DataTemplate

Property Value

Type	Default	Description
DataTemplate	null	A DataTemplate that displays additional UI elements to the right of the Search Panel.

Remarks

The SearchPanelRightContentTemplate property allows you to complement the Search Panel with custom UI elements (for example, display a label, icon, or button to the right).

Tip

The template’s DataContext returns the current view, so you can bind template elements directly to view properties.

Example: Display the Clear Button for the Search Panel

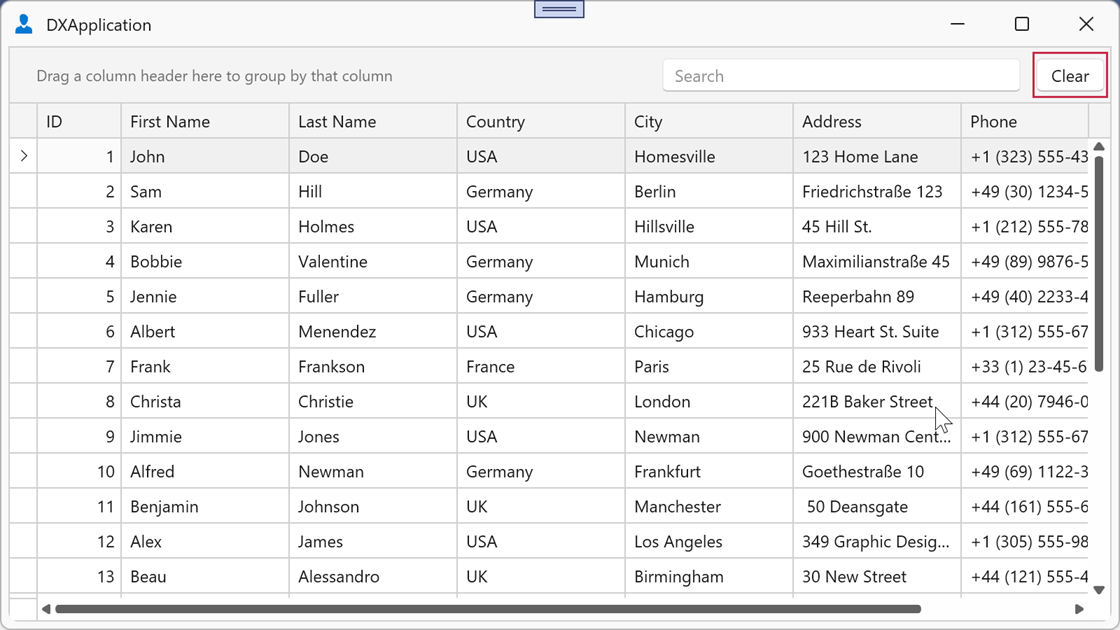

The following example adds the Clear button to the right of the Search Panel:

<dx:ThemedWindow x:Class="GroupPanelExample.MainWindow"
                 xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
                 xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
                 xmlns:dx="http://schemas.devexpress.com/winfx/2008/xaml/core"
                 xmlns:dxg="http://schemas.devexpress.com/winfx/2008/xaml/grid"
                 ... >
    <Window.Resources>
        <DataTemplate x:Key="SearchPanelRightTemplate">
            <Button Content="Clear" Command="{Binding ClearSearchCommand}" VerticalAlignment="Center" Margin="4,0,4,0"/>
        </DataTemplate>
    </Window.Resources>

    <dxg:GridControl ItemsSource="{Binding Items}">
        <dxg:GridControl.View>
            <dxg:TableView
                    ShowSearchPanelMode="Always"
                    SearchPanelRightContentTemplate="{StaticResource SearchPanelRightTemplate}"/>
        </dxg:GridControl.View>
    </dxg:GridControl>
</dx:ThemedWindow>
