TcxButton Class

An advanced button component with support for multiple usage scenarios.

Declaration

TcxButton = class(
    TcxCustomButton
)

Remarks

TcxButton is an advanced DevExpress counterpart for the standard TButton component shipped with the VCL library.

Standard Button Mode

The TcxButton component can display both a caption and a glyph as well as execute an associated command on a click (in Standard and Command Link modes):

VCL Editors: A DevExpress Button with a Glyph

Drop-Down Button Modes

Alternatively, the button can display an associated drop-down menu (in any of the three supported drop-down modes):

VCL Editors: An Office Drop-Down Mode Example for a Button

Speed Button Mode

In addition, you can use the SpeedButtonOptions.GroupIndex property to define a button as part of a TcxButton group (similar to the standard TSpeedButton component shipped with the VCL library):

VCL Editors: Three Speed Buttons as a Group

Main API Members

The list below outlines key members of the TcxCustomButton class. These members allow you to configure button appearance and behavior.

Caption: Specifies a caption for the button.
Description: Specifies a description for the button (in Command Link and Office Drop Down modes only).
LookAndFeel: Provides access to look & feel settings (at the component level).
OnCustomDraw: Allows you to override or complement built-in draw routines for the button.
OptionsImage: Provides access to all button glyph-related settings (the button can display a glyph only if the PaintStyle property is set to bpsDefault or bpsGlyph).
PopupAlignment: Specifies menu alignment (if the Kind property is set to cxbkDropDown, cxbkDropDownButton, or cxbkOfficeDropDown).

Button Usage Modes

Kind: Specifies the selected button type (according to the target purpose).
PaintStyle: Specifies the active content display mode.
SpeedButtonOptions: Provides access to speed button options. You can use the SpeedButtonOptions.GroupIndex property to use the button as a standard TSpeedButton component (that is, as part of a button group).

User Interaction APIs

Automation: Provides access to UI Automation and accessibility-related settings.

Tip
Use Automation.Name, Automation.Description, and other API members to specify information visible to third-party assistive tools as UIA node properties.
DropDownMenu: Allows you to associate the button with a drop-down menu component. The button can display a drop-down menu only if the Kind property is set to cxbkDropDown, cxbkDropDownButton, or cxbkOfficeDropDown.
OnClick: Allows you to respond to a click on the button. You can set the RepeatClick property to True to raise the OnClick event repeatedly while the button is pressed.
OnDropDownMenuPopupEx: Allows you to customize the associated drop-down menu before it is displayed.
RepeatClick: Specifies if the button generates OnClick events repeatedly at regular intervals while pressed.

Code Example: Create Buttons with Different-Sized SVG Glyphs

The following code example creates five buttons with different-sized SVG glyphs using a single image list as a glyph source:

Delphi
C++

uses
  cxButtons,  // Declares the TcxButton class and related types
  cxGraphics;  // Declares the TcxImageList class and related types
// ...

procedure TMyForm.FormCreate(Sender: TObject);
var
  AButton: TcxButton;
  ALargeGlyphSettings: TcxButtonImageOptions;
begin
  AButton := TcxButton.Create(Self);  // Creates the large "Apply" button
  AButton.Parent := Self;  // Associates the created button with the form
  AButton.Caption := 'Apply';
  AButton.Font.Size := 20;
  // Position the button
  AButton.Top := 40;
  AButton.Left := 40;
  AButton.Height := 60;
  AButton.Width := 140;
  // Assign a glyph and configure related settings
  ALargeGlyphSettings := AButton.OptionsImage;
  ALargeGlyphSettings.Images := cxImageList1;
  ALargeGlyphSettings.ImageIndex := 0;
  ALargeGlyphSettings.SVGOptions.UseRegularAsLarge := True;
  ALargeGlyphSettings.SVGOptions.LargeSize.Width := 48;
  ALargeGlyphSettings.SVGOptions.LargeSize.Height := 48;
  AButton := TcxButton.Create(Self);  // Creates the large "Cancel" button
  AButton.Parent := Self; // Associates the created button with the form
  // Position the button
  AButton.Top := 40;
  AButton.Left := 200;
  AButton.Height := 60;
  AButton.Width := 60;
  AButton.PaintStyle := bpsGlyph;
  // Assign a glyph and configure related settings
  AButton.OptionsImage.Assign(ALargeGlyphSettings);  // Copies common settings from the "Apply" button
  AButton.OptionsImage.ImageIndex := 1;  // Assigns a different glyph from the source image list
  AButton := TcxButton.Create(Self);  // Creates the small "Refresh" button
  AButton.Parent := Self;  // Associates the created button with the form
  AButton.Caption := 'Refresh';
  AButton.Left := 40;  // Positions the button
  AButton.OptionsImage.Images := cxImageList1;
  AButton.OptionsImage.ImageIndex := 2;
  AButton := TcxButton.Create(Self);  // Creates the small "Add" button
  AButton.Parent := Self;  // Associates the created button with the form
  AButton.Caption := 'Add';
  AButton.Left := 115;  // Positions the button
  AButton.OptionsImage.Images := cxImageList1;
  AButton.OptionsImage.ImageIndex := 3;
  AButton := TcxButton.Create(Self); // Creates the small "Remove" button
  AButton.Parent := Self;  // Associates the created button with the form
  AButton.Caption := 'Remove';
  AButton.Left := 190;  // Positions the button
  AButton.OptionsImage.Images := cxImageList1;
  AButton.OptionsImage.ImageIndex := 4;
end;

#include "cxButtons.hpp"  // Declares the TcxButton class and related types
#include "cxGraphics.hpp"  // Declares the TcxImageList class and related types

// Add the following linker directives to the corresponding CPP source file:
#pragma link "cxButtons"  // Required to use cxButtons.hpp declarations
#pragma link "cxGraphics"  // Required to use cxGraphics.hpp declarations
// ...

void __fastcall TMyForm::FormCreate(TObject *Sender)
{
  TcxButton *AButton;
  TcxButtonImageOptions *ALargeGlyphSettings;
  AButton = new TcxButton(this);  // Creates the large "Apply" button
  AButton->Parent = this;  // Associates the created button with the form
  AButton->Caption = "Apply";
  AButton->Font->Size = 20;
  // Resize and position the button
  AButton->Top = 40;
  AButton->Left = 40;
  AButton->Height = 60;
  AButton->Width = 140;
  // Assign a glyph and configure related settings
  ALargeGlyphSettings = AButton->OptionsImage;
  ALargeGlyphSettings->Images = cxImageList1;
  ALargeGlyphSettings->ImageIndex = 0;
  ALargeGlyphSettings->SVGOptions->UseRegularAsLarge = true;
  ALargeGlyphSettings->SVGOptions->LargeSize->Width = 48;
  ALargeGlyphSettings->SVGOptions->LargeSize->Height = 48;
  AButton = new TcxButton(this);  // Creates the large "Cancel" button
  AButton->Parent = this;  // Associates the created button with the form
  // Resize and position the button
  AButton->Top = 40;
  AButton->Left = 200;
  AButton->Height = 60;
  AButton->Width = 60;
  AButton->PaintStyle = bpsGlyph;
  // Assign a glyph and configure related settings
  AButton->OptionsImage->Assign(ALargeGlyphSettings);  // Copies common settings from the "Apply" button
  AButton->OptionsImage->ImageIndex = 1;  // Assigns a different glyph within the source image list
  AButton = new TcxButton(this);  // Creates the small "Refresh" button
  AButton->Parent = this;  // Associates the created button with the form
  AButton->Caption = "Refresh";
  AButton->Left = 40;  // Positions the button
  AButton->OptionsImage->Images = cxImageList1;
  AButton->OptionsImage->ImageIndex = 2;
  AButton = new TcxButton(this);  // Creates the small "Add" button
  AButton->Parent = this;  // Associates the created button with the form
  AButton->Caption = "Add";
  AButton->Left = 115; // Positions the button
  AButton->OptionsImage->Images = cxImageList1;
  AButton->OptionsImage->ImageIndex = 3;
  AButton = new TcxButton(this);  // Creates the small "Remove" button
  AButton->Parent = this;  // Associates the created button with the form
  AButton->Caption = "Remove";
  AButton->Left = 190;  // Positions the button
  AButton->OptionsImage->Images = cxImageList1;
  AButton->OptionsImage->ImageIndex = 4;
}

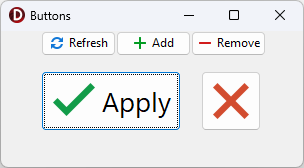

VCL Editors: Five Buttons Using the Same Glyph Source
