FilteringPanelControl.ValueBackground Property

Gets or sets the background brush for filter values within the Filter Panel. This is a dependency property.

Namespace: DevExpress.Xpf.Core.FilteringUI

Assembly: DevExpress.Xpf.Grid.v26.1.dll

Declaration

C#

public Brush ValueBackground { get; set; }

VB.NET

Public Property ValueBackground As Brush

Property Value

Type	Default	Description
Brush	null	The background brush applied to filter values within the Filter Panel.

Remarks

Note

When the ColorMode property is set to Plain, the ValueBackground property has no effect.

Example: Set a Yellow Background for Filter Values

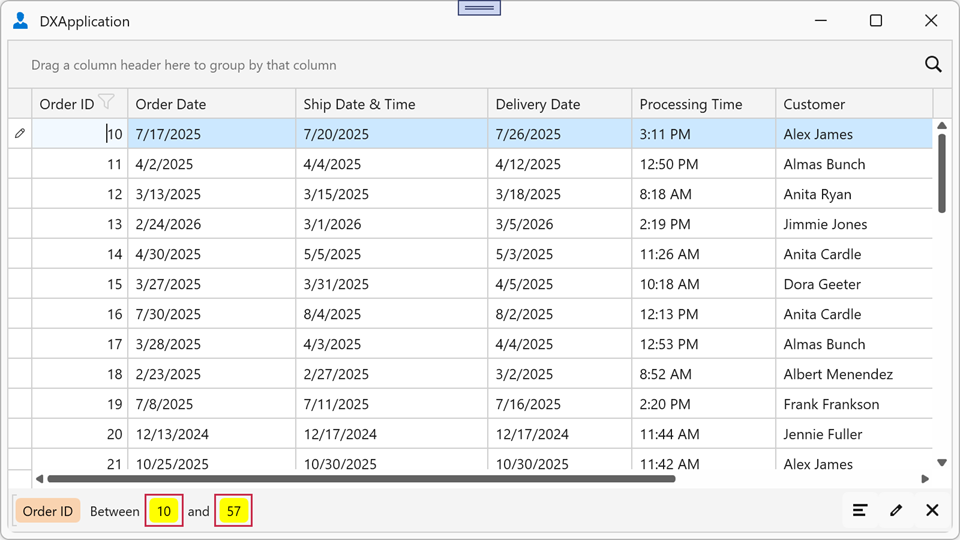

The following example sets a yellow background for filter values within the Filter Panel:

XAML

<dx:ThemedWindow x:Class="FilterPanelExample.MainWindow"
                 xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
                 xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
                 xmlns:dx="http://schemas.devexpress.com/winfx/2008/xaml/core"
                 xmlns:dxg="http://schemas.devexpress.com/winfx/2008/xaml/grid"
                 xmlns:dxfui="http://schemas.devexpress.com/winfx/2008/xaml/core/filteringui">
    <dxg:GridControl ItemsSource="{Binding Orders}">
        <dxg:GridControl.View>
            <dxg:TableView ShowFilterPanelMode="ShowAlways">
                <dxg:TableView.FilteringPanelStyle>
                    <Style TargetType="dxfui:FilteringPanelControl">
                        <Setter Property="ColorMode" Value="Default"/>
                        <Setter Property="ValueBackground" Value="Yellow"/>
                    </Style>
                </dxg:TableView.FilteringPanelStyle>
            </dxg:TableView>
        </dxg:GridControl.View>
    </dxg:GridControl>
</dx:ThemedWindow>
