FilteringPanelControl.PropertyBackground Property

Gets or sets the background brush for field names within the Filter Panel. This is a dependency property.

Namespace: DevExpress.Xpf.Core.FilteringUI

Assembly: DevExpress.Xpf.Grid.v26.1.dll

Declaration

C#

public Brush PropertyBackground { get; set; }

VB.NET

Public Property PropertyBackground As Brush

Property Value

Type	Default	Description
Brush	null	The background brush applied to field names within the Filter Panel.

Remarks

Note

When the ColorMode property is set to Plain, the PropertyBackground property has no effect.

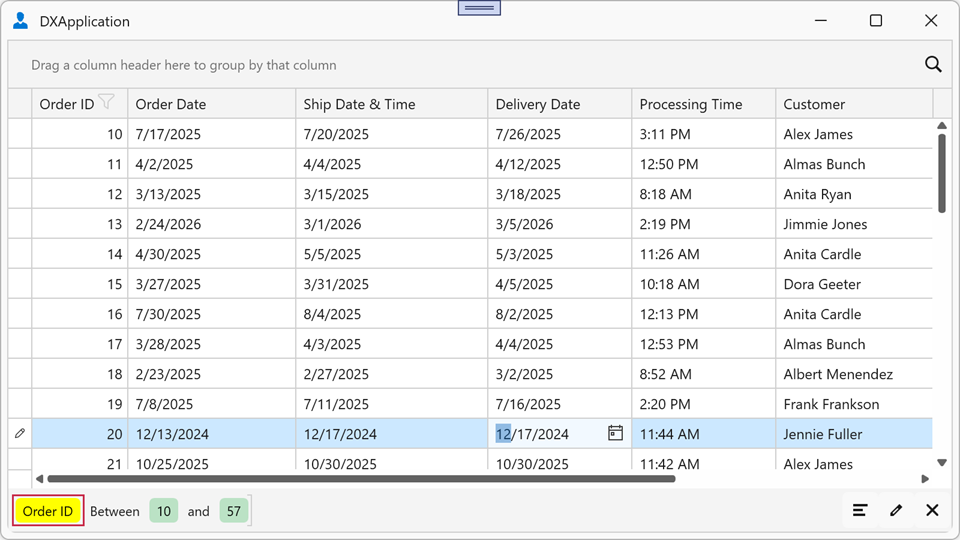

Example: Set a Yellow Background for Field Names

The following example sets a yellow background for field names within the Filter Panel:

XAML

<dx:ThemedWindow x:Class="FilterPanelExample.MainWindow"
                 xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
                 xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
                 xmlns:dx="http://schemas.devexpress.com/winfx/2008/xaml/core"
                 xmlns:dxg="http://schemas.devexpress.com/winfx/2008/xaml/grid"
                 xmlns:dxfui="http://schemas.devexpress.com/winfx/2008/xaml/core/filteringui">
    <dxg:GridControl ItemsSource="{Binding Orders}">
        <dxg:GridControl.View>
            <dxg:TableView ShowFilterPanelMode="ShowAlways">
                <dxg:TableView.FilteringPanelStyle>
                    <Style TargetType="dxfui:FilteringPanelControl">
                        <Setter Property="ColorMode" Value="Default"/>
                        <Setter Property="PropertyBackground" Value="Yellow"/>
                    </Style>
                </dxg:TableView.FilteringPanelStyle>
            </dxg:TableView>
        </dxg:GridControl.View>
    </dxg:GridControl>
</dx:ThemedWindow>
