FilteringPanelControl.OperatorBackground Property

Gets or sets the background brush for comparison operators (for example, =, >, <) within the Filter Panel. This is a dependency property.

Namespace: DevExpress.Xpf.Core.FilteringUI

Assembly: DevExpress.Xpf.Grid.v26.1.dll

Declaration

C#

public Brush OperatorBackground { get; set; }

VB.NET

Public Property OperatorBackground As Brush

Property Value

Type	Default	Description
Brush	null	The background brush applied to comparison operators within the Filter Panel.

Remarks

Note

When the ColorMode property is set to Plain, the OperatorBackground property has no effect.

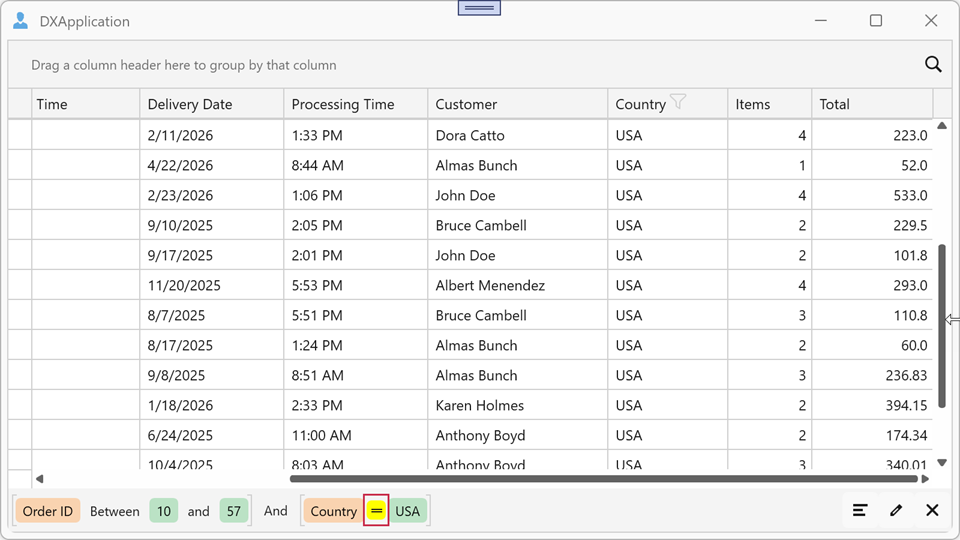

Example: Set a Yellow Background for Comparison Operators

The following example sets a yellow background for comparison operators within the Filter Panel:

XAML

<dx:ThemedWindow x:Class="FilterPanelExample.MainWindow"
                 xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
                 xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
                 xmlns:dx="http://schemas.devexpress.com/winfx/2008/xaml/core"
                 xmlns:dxg="http://schemas.devexpress.com/winfx/2008/xaml/grid"
                 xmlns:dxfui="http://schemas.devexpress.com/winfx/2008/xaml/core/filteringui">
    <dxg:GridControl ItemsSource="{Binding Orders}">
        <dxg:GridControl.View>
            <dxg:TableView ShowFilterPanelMode="ShowAlways">
                <dxg:TableView.FilteringPanelStyle>
                    <Style TargetType="dxfui:FilteringPanelControl">
                        <Setter Property="ColorMode" Value="Default"/>
                        <Setter Property="OperatorBackground" Value="Yellow"/>
                    </Style>
                </dxg:TableView.FilteringPanelStyle>
            </dxg:TableView>
        </dxg:GridControl.View>
    </dxg:GridControl>
</dx:ThemedWindow>
