FilteringPanelControl.LogicalOperatorBackground Property

Gets or sets the background brush of logical operators within the Filter Panel. This is a dependency property.

Namespace: DevExpress.Xpf.Core.FilteringUI

Assembly: DevExpress.Xpf.Grid.v26.1.dll

Declaration

C#

public Brush LogicalOperatorBackground { get; set; }

VB.NET

Public Property LogicalOperatorBackground As Brush

Property Value

Type	Description
Brush	The background brush applied to logical operators within the Filter Panel.

Remarks

Note

When the ColorMode property is set to Plain, the LogicalOperatorBackground property has no effect.

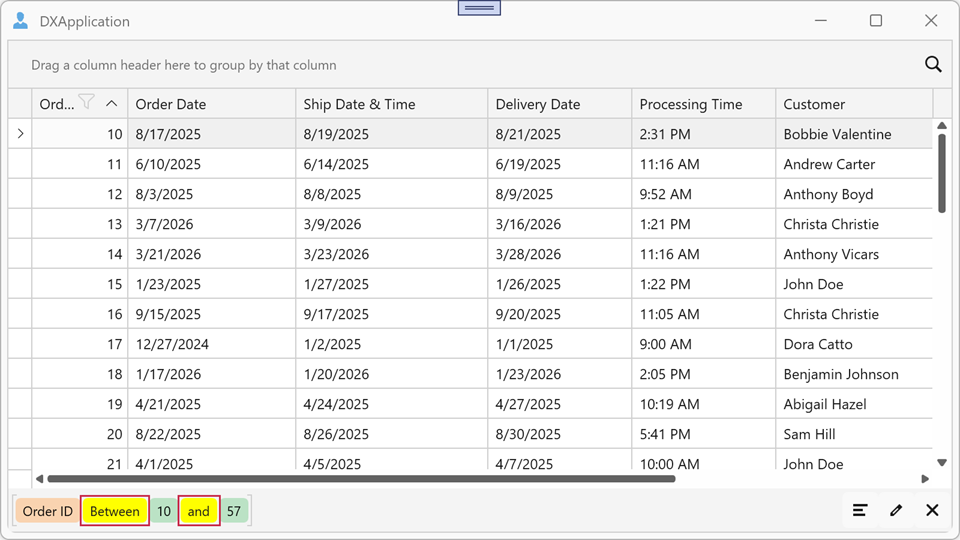

Example: Set a Yellow Background for Logical Operators

The following example sets a yellow background for logical operators within the Filter Panel:

XAML

<dx:ThemedWindow x:Class="FilterPanelExample.MainWindow"
                 xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
                 xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
                 xmlns:dx="http://schemas.devexpress.com/winfx/2008/xaml/core"
                 xmlns:dxg="http://schemas.devexpress.com/winfx/2008/xaml/grid"
                 xmlns:dxfui="http://schemas.devexpress.com/winfx/2008/xaml/core/filteringui">
    <dxg:GridControl ItemsSource="{Binding Orders}">
        <dxg:GridControl.View>
            <dxg:TableView ShowFilterPanelMode="ShowAlways">
                <dxg:TableView.FilteringPanelStyle>
                    <Style TargetType="dxfui:FilteringPanelControl">
                        <Setter Property="ColorMode" Value="Default"/>
                        <Setter Property="LogicalOperatorBackground" Value="Yellow"/>
                    </Style>
                </dxg:TableView.FilteringPanelStyle>
            </dxg:TableView>
        </dxg:GridControl.View>
    </dxg:GridControl>
</dx:ThemedWindow>
