FilteringPanelControl.LogicalOperatorForeground Property

Gets or sets the foreground brush of logical operators within the Filter Panel. This is a dependency property.

Namespace: DevExpress.Xpf.Core.FilteringUI

Assembly: DevExpress.Xpf.Grid.v26.1.dll

Declaration

C#

public Brush LogicalOperatorForeground { get; set; }

VB.NET

Public Property LogicalOperatorForeground As Brush

Property Value

Type	Default	Description
Brush	null	The foreground brush applied to logical operators within the Filter Panel.

Remarks

When the LogicalOperatorForeground property value is null (default), the Filter Panel applies the active theme’s foreground to all logical operators.

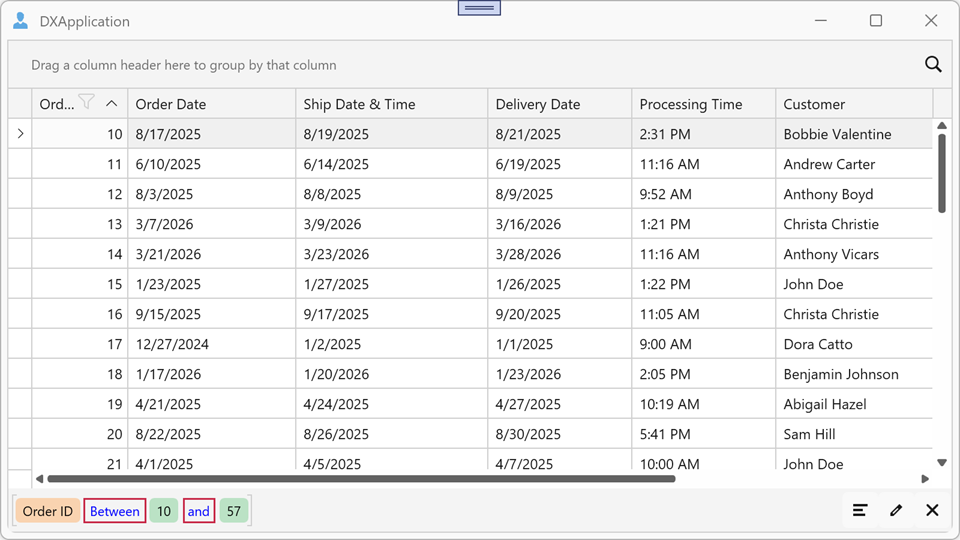

Example: Set a Blue Foreground for Logical Operators

The following example sets a blue foreground for logical operators in the Filter Panel:

XAML

<dx:ThemedWindow x:Class="FilterPanelExample.MainWindow"
                 xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
                 xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
                 xmlns:dx="http://schemas.devexpress.com/winfx/2008/xaml/core"
                 xmlns:dxg="http://schemas.devexpress.com/winfx/2008/xaml/grid"
                 xmlns:dxfui="http://schemas.devexpress.com/winfx/2008/xaml/core/filteringui">
    <dxg:GridControl ItemsSource="{Binding Orders}">
        <dxg:GridControl.View>
            <dxg:TableView ShowFilterPanelMode="ShowAlways">
                <dxg:TableView.FilteringPanelStyle>
                    <Style TargetType="dxfui:FilteringPanelControl">
                        <Setter Property="ColorMode" Value="Default"/>
                        <Setter Property="LogicalOperatorForeground" Value="Blue"/>
                    </Style>
                </dxg:TableView.FilteringPanelStyle>
            </dxg:TableView>
        </dxg:GridControl.View>
    </dxg:GridControl>
</dx:ThemedWindow>
