PieDashboardItem.SpacingMode Property

Specifies whether spacing between pie or donut segments is enabled.

Namespace: DevExpress.DashboardCommon

Assembly: DevExpress.Dashboard.v26.1.Core.dll

Declaration

C#

[DefaultValue(DashboardPieSpacingMode.Disable)]
public DashboardPieSpacingMode SpacingMode { get; set; }

VB.NET

<DefaultValue(DashboardPieSpacingMode.Disable)>
Public Property SpacingMode As DashboardPieSpacingMode

Property Value

Type	Default	Description
DashboardPieSpacingMode	Disable	A value that specifies whether segment spacing is applied.

Available values:

Name	Description
Disable	Disables spacing between pie or donut segments.
Enable	Enables spacing between pie or donut segments.

Remarks

Use this property to enable segment spacing.

When this property is set to Enable, SegmentSpacing defines the spacing size.

The following code snippet sets segment spacing to 5:

C#

using DevExpress.DashboardCommon;
// ...
Dashboard dashboard = new Dashboard();
dashboard.DataSources.Add(extractDataSource);
  PieDashboardItem pie = new PieDashboardItem()
  {
      ComponentName = "pie1",
      Name = "Products",
      SpacingMode = DashboardPieSpacingMode.Enable,
      SegmentSpacing = 5
  };
  pie.DataSource = extractDataSource;
  pie.Arguments.Add(new Dimension("OrderDate"));
  pie.Values.Add(new Measure("SalesAmount"));
  dashboard.Items.Add(pie);

VB.NET

Imports DevExpress.DashboardCommon
' ...
Private dashboard As New Dashboard()
dashboard.DataSources.Add(extractDataSource)
  Dim pie As New PieDashboardItem() With {
      .ComponentName = "pie1",
      .Name = "Products",
      .SpacingMode = DashboardPieSpacingMode.Enable,
      .SegmentSpacing = 5
  }
  pie.DataSource = extractDataSource
  pie.Arguments.Add(New Dimension("OrderDate"))
  pie.Values.Add(New Measure("SalesAmount"))
  dashboard.Items.Add(pie)

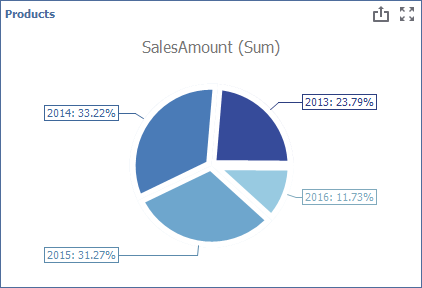

The following image displays the result:
