TdxReport.ExportToHTML(TStream) Method

Exports report content to a stream in the HyperText Markup Language (HTML) document format.

Declaration

procedure ExportToHTML(AStream: TStream); overload;

Parameters

Name	Type	Description
AStream	TStream	The target stream.

Remarks

Call the ExportToHTML procedure to export report content to a stream in the HTML format.

In this topic…

HTML Export Settings
Code Example: Export Report Content to HTML File
Related Compiled Demo
Other Export Methods
- Export to File
- Export to Stream

HTML Export Settings

The Report Designer dialog allows you to configure HTML export settings. Open the Properties tab and expand the following nodes to modify HTML export settings: Behavior | Export Options | HTML Export Options.

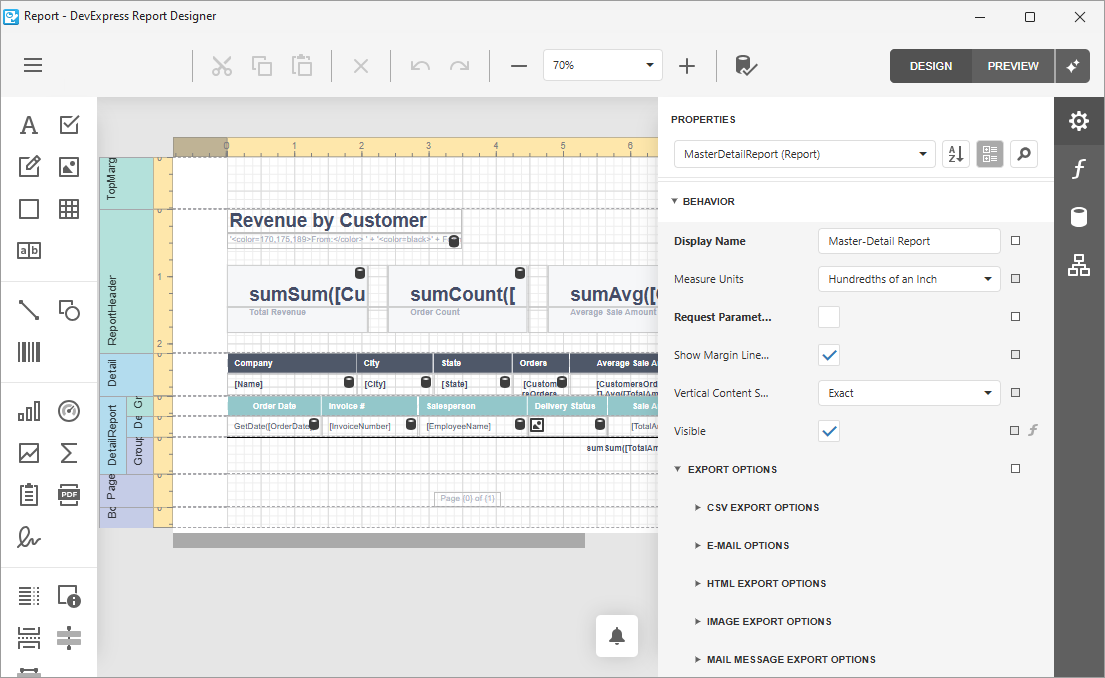

VCL Reports: Export Format Settings in the Report Designer Dialog

Code Example: Export Report Content to HTML File

The following code example configures a memory-based data source (TdxBackendInMemoryJSONConnection), loads an XML layout, and exports generated content to a file in the HyperText Markup Language (HTML) document format without user interaction:

Delphi
C++

uses
  dxBackend.ConnectionString.JSON,  // Declares the TdxBackendInMemoryJSONConnection component
  dxReport;                      // Declares the TdxReport class
// ...

procedure TMyForm.cxButtonExportToHTMLClick(Sender: TObject);
var
  AReport: TdxReport;
  AJSONDataConnection: TdxBackendInMemoryJSONConnection;
  AMemoryStream: TMemoryStream;
  AJSONData: string;
begin
  // Define a table that consists of three columns ("id", "Region", and "Sales") and five data rows:
  AJSONData :=

  '[{"id": 1, "Region": "Asia",          "Sales": 4.7685},' +  // Row #1
   '{"id": 2, "Region": "Australia",     "Sales": 1.9576},' +  // Row #2
   '{"id": 3, "Region": "Europe",        "Sales": 3.3579},' +  // Row #3
   '{"id": 4, "Region": "North America", "Sales": 3.7477},' +  // Row #4
   '{"id": 5, "Region": "South America", "Sales": 1.8237}]';   // Row #5

  AJSONDataConnection := TdxBackendInMemoryJSONConnection.Create(Self);  // Creates a data connection
  try
    AJSONDataConnection.Name := 'JSONData';        // Assigns a name to the created data connection
    AJSONDataConnection.SetJSONValue(AJSONData);   // Assigns the defined JSON data string
    AReport := TdxReport.Create(Self);       // Creates a TdxReport container
    try
      AReport.Layout.LoadFromFile('MyReportLayout.xml');  // Loads an XML Report layout
      AReport.ReportName := 'MyReport';                         // Defines a Report name
      AMemoryStream := TMemoryStream.Create;                    // Creates a memory stream
      try
        // Export Report content to the created memory stream in the HTML format:
        AReport.ExportToHTML(AMemoryStream);
        AMemoryStream.SaveToFile(AReport.ReportName + '.html');   // Saves the resulting HTML file
      finally
        AMemoryStream.Free;         // Releases the memory stream
      end;
    finally
      AReport.Free;              // Releases the TdxReport container
    end;
  finally
    AJSONDataConnection.Free;       // Releases the data connection
  end;
end;

#include "dxBackend.ConnectionString.JSON.hpp"  // Declares the TdxBackendInMemoryJSONConnection component
#include "dxReport.hpp"                      // Declares the TdxReport class

// Add the following linker directives to the corresponding CPP source file:
#pragma link "dxReport"                      // Required to use dxReport.hpp declarations
#if defined(_WIN64)  // Required to use dxBackend.ConnectionString.JSON.hpp declarations
  #pragma link "dxBackend.ConnectionString.JSON.o"
#else
  #pragma link "dxBackend.ConnectionString.JSON.obj"
#endif
// ...

void __fastcall TMyForm::cxButtonExportToHTMLClick(TObject *Sender)
{
  TdxReport *AReport;
  TdxBackendInMemoryJSONConnection *AJSONDataConnection;
  TMemoryStream *AMemoryStream;

  // Define a table that consists of three columns ("id", "Region", and "Sales") and five data rows:
  UnicodeString AJSONData =

  "[{\"id\": 1, \"Region\": \"Asia\",          \"Sales\": 1.9576},"  // Row #1
   "{\"id\": 2, \"Region\": \"Australia\",     \"Sales\": 1.9576},"  // Row #2
   "{\"id\": 3, \"Region\": \"Europe\",        \"Sales\": 3.3579},"  // Row #3
   "{\"id\": 4, \"Region\": \"North America\", \"Sales\": 3.7477},"  // Row #4
   "{\"id\": 5, \"Region\": \"South America\", \"Sales\": 1.8237}]"  // Row #5

  AJSONDataConnection = new TdxBackendInMemoryJSONConnection(this);  // Creates a data connection
  try
  {
    AJSONDataConnection->Name = "JSONData";        // Assigns a name to the created data connection
    AJSONDataConnection->SetJSONValue(AJSONData);  // Assigns the defined JSON data string
    AReport = new TdxReport(this);           // Creates a TdxReport container
    try
    {
      AReport->Layout->LoadFromFile("MyReportLayout.xml");  // Loads an XML Report layout
      AReport->ReportName = "MyReport";                           // Defines a Report name
      AMemoryStream = new TMemoryStream();                        // Creates a memory stream
      try
      {
        // Export Report content to the created memory stream in the HTML format
        AReport->ExportToHTML(AMemoryStream);
        AMemoryStream->SaveToFile(AReport->ReportName + ".html");  // Saves the resulting HTML file
      }
      __finally
      {
        delete AMemoryStream;       // Releases the memory stream
      }
    }
    __finally
    {
      delete AReport;            // Releases the TdxReport container
    }
  }
  __finally
  {
    delete AJSONDataConnection;     // Releases the data connection
  }
}

To see the report export functionality in action, run the Report Designer/Viewer demo in the VCL Demo Center installed with compiled DevExpress VCL demos. Select any demo in the sidebar on the left, click the Export button, and use any export option listed in the menu.

Download: Compiled VCL Demos

Tip

You can find full source code for the installed compiled Report demo in the following folder:

%PUBLIC%\Documents\DevExpress VCL Demos\MegaDemos\Product Demos\ExpressReports\
