TdxReportExportFormat Enum

Enumerates formats available for report export operations.

Declaration

TdxReportExportFormat = (
    CSV,
    DOCX,
    HTML,
    Image,
    MHT,
    PDF,
    RTF,
    Text,
    XLS,
    XLSX
);

Members

Name	Description	Format-Specific Export Methods
CSV	Comma-Separated Values (CSV)	TdxReport.ExportToCSV TdxCustomReportControl.ExportToCSV
DOCX	Office Open XML Document (DOCX)	TdxReport.ExportToDOCX TdxCustomReportControl.ExportToDOCX
HTML	Hypertext Markup Language (HTML)	TdxReport.ExportToHTML TdxCustomReportControl.ExportToHTML
Image	Image Export Format The actual image format depends on Image Export Options available in the Report Viewer dialog (the default image export format is PNG).	TdxReport.ExportToImage TdxCustomReportControl.ExportToImage
MHT	MIME HTML Document Format (MHT/MHTML)	TdxReport.ExportToMHT TdxCustomReportControl.ExportToMHT
PDF	Portable Document Format (PDF)	TdxReport.ExportToPDF TdxCustomReportControl.ExportToPDF
RTF	Rich Text Format (RTF)	TdxReport.ExportToRTF TdxCustomReportControl.ExportToRTF
Text	Plain text format (TXT)	TdxReport.ExportToText TdxCustomReportControl.ExportToText
XLS	Microsoft Excel® Binary Format (XLS)	TdxReport.ExportToXLS TdxCustomReportControl.ExportToXLS
XLSX	Office OpenXML Spreadsheet Format (XLSX)	TdxReport.ExportToXLSX TdxCustomReportControl.ExportToXLSX

Remarks

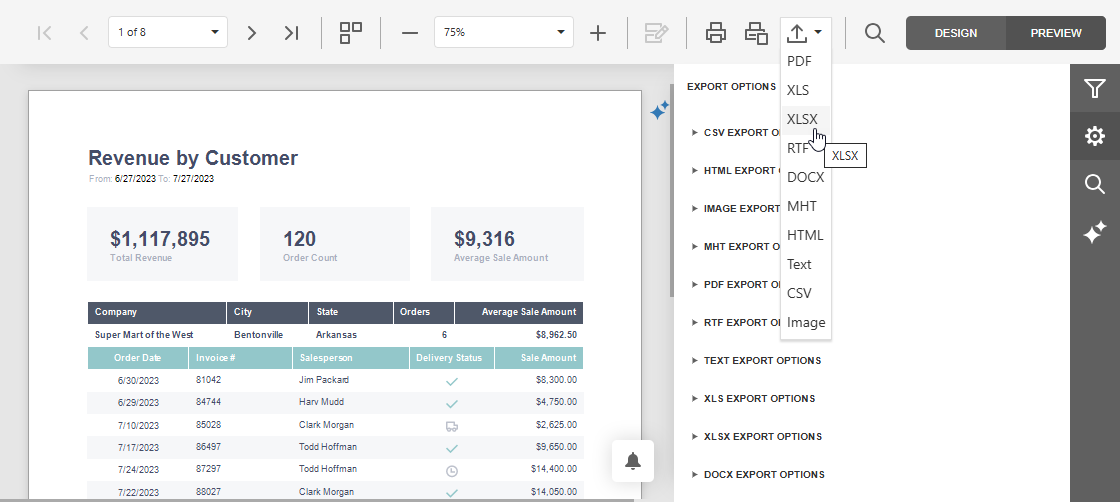

The Report Viewer dialog lists multiple export formats and corresponding settings available to users:

Users can configure each available export format in the Export Options pane.

Note

TdxReportExportFormat is a scoped enumeration type. Use the type name together with a scope resolution token (. in Delphi or :: in C++Builder) followed by an enumeration value to refer to this value. For example, use TdxReportExportFormat.XLSX (in Delphi) or TdxReportExportFormat::XLSX (in C++Builder) to refer to the XLSX value in code.

Code Example: Load and Populate Report Templates from Datasets

This code example loads an XML-based report template (REPX) from a dataset, configures export settings, populates the template with data from another dataset, and displays the report preview:

Delphi

uses
  dxReport,  // Declares the TdxReport component and related types
  dxBackend.ConnectionString.JSON.DataSet;  // Declares the TdxBackendDataSetJSONConnection component
// ...

procedure TMyForm.Button1Click(Sender: TObject);
var
  ADataConnection: TdxBackendDataSetJSONConnection;
  AReport: TdxReport;
  ALayoutStream: TStream;
begin
  ADataConnection := TdxBackendDataSetJSONConnection.Create(Self);
  try
    ADataConnection.Name := 'DataSetJSONData';
    ADataConnection.DataSets.Add('Data', FDataSource);
    AReport := TdxReport.Create(Self);
    try
      AReport.ReportName := 'Report';
      ALayoutStream := FLayoutDataSet.CreateBlobStream(FLayoutDataSet.FieldByName('Layout'), bmRead);
      try
        AReport.Layout.LoadFromStream(ALayoutStream);
      finally
        ALayoutStream.Free;
      end;
      AReport.Language := 'fr-FR';
      AReport.ExportFormats := [TdxReportUIExportFormat.PDF,
        TdxReportUIExportFormat.RTF, TdxReportUIExportFormat.HTML];
      AReport.FilterString := 'id = 5';
      AReport.ShowViewer;
    finally
      AReport.Free;
    end;
  finally
    ADataConnection.Free;
  end;
end;

C++

#include "dxReport.hpp"  // Declares the TdxReport component and related types
#include "dxBackend.ConnectionString.JSON.DataSet.hpp" // Declares the TdxBackendDataSetJSONConnection component

// Add the following linker directives to the corresponding CPP source file:
#pragma link "dxReport"  // Required to use dxReport.hpp declarations
#pragma link "dxBackend.ConnectionString.JSON.DataSet" //Required to use TdxBackendDataSetJSONConnection declarations
// ...

void __fastcall TMyForm::Button1Click(TObject *Sender)
{
  TdxBackendDataSetJSONConnection *ADataConnection;
  TdxReport *AReport;
  TStream *ALayoutStream;
  ADataConnection = new TdxBackendDataSetJSONConnection(this);
  try
  {
    ADataConnection->Name = "DataSetJSONData";
    ADataConnection->DataSets->Add("Data", FDataSource);
    AReport = new TdxReport(this);
    try
    {
      AReport->ReportName = "Report";
      ALayoutStream = FLayoutDataSet->CreateBlobStream(FLayoutDataSet->FieldByName("Layout"), bmRead);
      try
      {
        AReport->Layout->LoadFromStream(ALayoutStream);
      }
      __finally
      {
        delete ALayoutStream;
      }
      AReport->Language = "fr-FR";
      AReport->ExportFormats = TdxReportUIExportFormats() << TdxReportUIExportFormat::PDF
        << TdxReportUIExportFormat::RTF << TdxReportUIExportFormat::HTML;
      AReport->FilterString = "id = 5";
      AReport->ShowViewer();
    }
    __finally
    {
      delete AReport;
    }
  }
  __finally
  {
    delete ADataConnection;
  }
}

TdxReportExportFormat Type References in Method Parameters

Report Component

TdxReport.ExportTo(TdxReportExportFormat,TStream)

Exports report content to a stream in any supported format.

TdxReport.ExportTo(TdxReportExportFormat,TStream,String)

Exports report content to a stream in any supported format. Additionally returns the corresponding report file name.

TdxReport.ExportTo(TdxReportExportFormat,String)

Exports report content to a file in any supported format.

Report Control

TdxCustomReportControl.ExportTo(TdxReportExportFormat,TStream)

Exports report content to a stream in any supported format.

TdxCustomReportControl.ExportTo(TdxReportExportFormat,TStream,String)

Exports report content to a stream in any supported format. Additionally returns the corresponding report file name.

TdxCustomReportControl.ExportTo(TdxReportExportFormat,String)

Exports report content to a file in any supported format.
