GridOptionsPrint.PrintVertLines Property

Gets or sets whether to display vertical grid lines in the print/export output. Supports WYSIWYG and Data-aware export mode.

Namespace: DevExpress.XtraGrid.Views.Grid

Assembly: DevExpress.XtraGrid.v25.1.dll

NuGet Packages: DevExpress.Win.Grid, DevExpress.Win.Navigation

Declaration

C#

[DefaultValue(true)]
[XtraSerializableProperty]
public virtual bool PrintVertLines { get; set; }

VB.NET

<DefaultValue(True)>
<XtraSerializableProperty>
Public Overridable Property PrintVertLines As Boolean

Property Value

Type	Default	Description
Boolean	true	true to print/export vertical grid lines; otherwise, false.

Property Paths

You can access this nested property as listed below:

Object Type	Path to PrintVertLines
GridView	.OptionsPrint .PrintVertLines

Remarks

The following code snippet hides horizontal lines and displays vertical lines in the print/export output:

gridView1.OptionsPrint.PrintHorzLines = false;
gridView1.OptionsPrint.PrintVertLines = true;

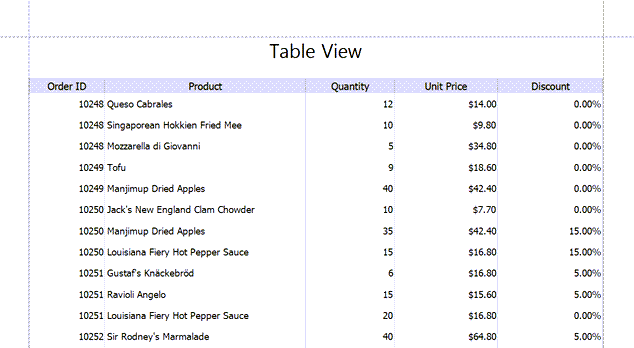

The image below visualizes the result:

Note

When exporting data to XLS(x) format in data-aware mode (the default mode), vertical lines are printed up to the end of the output sheet (for performance reasons).

In WYSIWYG export mode, vertical lines are only printed for exported cells.

Related GitHub Examples

The following code snippet (auto-collected from DevExpress Examples) contains a reference to the PrintVertLines property.

Note

The algorithm used to collect these code examples remains a work in progress. Accordingly, the links and snippets below may produce inaccurate results. If you encounter an issue with code examples below, please use the feedback form on this page to report the issue.

C#

winforms-grid-custom-print-cells-headers-in-print-preview/CS/GridBeforePrint/MyGridViewPrintInfo.cs#L86

View.OptionsPrint.PrintHorzLines,
View.OptionsPrint.PrintVertLines,
cell.ColumnInfo.Column.DisplayFormat.FormatString,

VB.NET

winforms-grid-custom-print-cells-headers-in-print-preview/VB/GridBeforePrint/MyGridViewPrintInfo.vb#L79

Dim horzAlignment As HorzAlignment = (TryCast(Me.View, MyGridView)).GetHorzAlignment(rowHandle, cell.Column, cell.Appearance.HAlignment)
Dim info As New PrintCellHelperInfo(New Point(If(cell.Column Is Nothing, -1, cell.Column.AbsoluteIndex), rowHandle), LineColor, PrintingSystemBase, cell.CellValue, cell.Appearance, displayText, r, Graph, horzAlignment, Me.View.OptionsPrint.PrintHorzLines, Me.View.OptionsPrint.PrintVertLines, cell.ColumnInfo.Column.DisplayFormat.FormatString, CalcBrickBordersEX(), PaddingInfo.Empty)
