TdxReport.ReportName Property

Specifies the report name used as an identifier for the report template/layout definition.

Declaration

property ReportName: string read; write;

Property Value

Type	Description
string	The report name (case-sensitive).

Remarks

The TdxReport component requires a specified report name to manage report layouts, generate/display report documents, and associate the main report layout with subreports. Use the ReportName property to associate a report name with the report template/layout definition specified using the Layout property.

In this topic…

• Report Name and Scopes/Groups
• Report Designer: End-User Functionality
• Code Examples
  • Save Report Layout Changes to File on Every Change
  • Save Report Layout to Database on Every Change
  • Generate and Export Report Content to PDF File
  • Related GitHub-Hosted Sample Projects
• Default Value
• Layout Definition Name Properties in Other Components

Report Name and Scopes/Groups

All TdxReport and TdxReportControl instances initially belong to the same report name scope. All report components that share the same report name are associated with the same layout definition. Any changes made in the Report Designer are applied to all report components with the same report name.

To associate the TdxReport component with a dedicated report name scope, use the GroupName property. All report components with the same GroupName^[1] property value belong to the same report name scope.

Report Designer: End-User Functionality

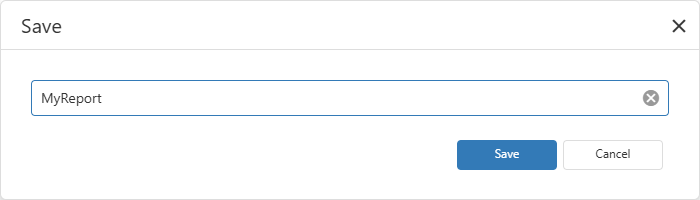

To save the current report template state during the current session, users can click the hamburger button in the Report Designer dialog and select the Save option. If the TdxReport.ReportName property value is an empty string, the Report Designer dialog prompts a user to specify a report name:

The report is saved in memory. Report Viewer and Report Designer dialogs also display the ReportName property value in the form caption.

Code Examples

Save Report Layout Changes to File on Every Change

The following code example saves the current Report layout to a file in the REPX format every time a user saves pending changes in the Report Designer dialog:

Delphi

uses
  dxReport;  // Declares the TdxReport class
// ...

procedure TMyForm.dxReport1LayoutChanged(ASender: TdxReport);
begin
  ASender.Layout.SaveToFile(ASender.ReportName + '.repx');
end;

C++

#include "dxReport.hpp"  // Declares the TdxReport class

// Add the following linker directive to the corresponding CPP source file:
#pragma link "dxReport"  // Required to use dxReport.hpp declarations
// ...

void __fastcall TMyForm::dxReport1LayoutChanged(TdxReport *ASender)
{
  ASender->Layout->SaveToFile(ASender->ReportName + ".repx");
}

Save Report Layout to Database on Every Change

The following code example saves the current report to an existing BLOB dataset field every time a user saves pending changes in the Report Designer dialog:

Delphi

uses
  dxReport,  // Declares the TdxReport class
  dxmdaset;  // Declares the TdxMemData class and related types
// ...

procedure TMyForm.dxReport1LayoutChanged(ASender: TdxReport);
begin
  dxMemData1.Edit;
  dxMemData1.FieldByName('TemplateName').AsString := ASender.ReportName;
  dxMemData1.FieldByName('TemplateLayout').Assign(ASender.Layout);
  dxMemData1.Post;
end;

C++

#include "dxReport.hpp"  // Declares the TdxReport class
#include "dxmdaset.hpp"  // Declares the TdxMemData class and related types

// Add the following linker directives to the corresponding CPP source file:
#pragma link "dxReport"  // Required to use dxReport.hpp declarations
#pragma link "dxmdaset"  // Required to use dxmdaset.hpp declarations
// ...

void __fastcall TMyForm::dxReport1LayoutChanged(TdxReport *ASender)
{
  dxMemData1->Edit();
  dxMemData1->FieldByName("TemplateName")->AsString = ASender->ReportName;
  dxMemData1->FieldByName("TemplateLayout")->Assign(ASender->Layout);
  dxMemData1->Post();
}

Generate and Export Report Content to PDF File

The following code example configures a memory-based data source (TdxBackendInMemoryJSONConnection), loads an REPX layout, and exports generated content to a file in the Portable Document (PDF) format without user interaction:

Delphi

uses
  dxBackend.ConnectionString.JSON,  // Declares the TdxBackendInMemoryJSONConnection component
  dxSplashForms,                    // Declares the TdxSplashFormManager class and related types
  dxReport;                      // Declares the TdxReport class
// ...

procedure TMyForm.cxButtonExportToPDFClick(Sender: TObject);
var
  AReport: TdxReport;
  AJSONDataConnection: TdxBackendInMemoryJSONConnection;
  AMemoryStream: TMemoryStream;
  AJSONData: string;
begin
  // Define a table that consists of three columns ("id", "Region", and "Sales") and five data rows:
  AJSONData :=

  '[{"id": 1, "Region": "Asia",          "Sales": 4.7685},' +  // Row #1
   '{"id": 2, "Region": "Australia",     "Sales": 1.9576},' +  // Row #2
   '{"id": 3, "Region": "Europe",        "Sales": 3.3579},' +  // Row #3
   '{"id": 4, "Region": "North America", "Sales": 3.7477},' +  // Row #4
   '{"id": 5, "Region": "South America", "Sales": 1.8237}]';   // Row #5

  AJSONDataConnection := TdxBackendInMemoryJSONConnection.Create(Self);  // Creates a data connection
  try
    AJSONDataConnection.Name := 'JSONData';        // Assigns a name to the created data connection
    AJSONDataConnection.SetJSONValue(AJSONData);   // Assigns the defined JSON data string
    AReport := TdxReport.Create(Self);       // Creates a TdxReport container
    try
      AReport.Layout.LoadFromFile('MyReportLayout.repx');  // Loads an REPX Report layout
      AReport.ReportName := 'MyReport';                         // Defines a Report name
      AMemoryStream := TMemoryStream.Create;                    // Creates a memory stream
      TdxSplashFormManager.WaitForm.Show(Self);    // Displays a Wait Form before the export operation
      try
        // Export Report content to the created memory stream in the PDF format:
        AReport.ExportToPDF(AMemoryStream);
        AMemoryStream.SaveToFile(AReport.ReportName + '.pdf');   // Saves the resulting PDF file
      finally
        AMemoryStream.Free;         // Releases the memory stream
        TdxSplashFormManager.WaitForm.Hide;        // Hides the Wait Form once the operation is complete
      end;
    finally
      AReport.Free;              // Releases the TdxReport container
    end;
  finally
    AJSONDataConnection.Free;       // Releases the data connection
  end;
end;

C++

#include "dxBackend.ConnectionString.JSON.hpp"  // Declares the TdxBackendInMemoryJSONConnection component
#include "dxSplashForms.hpp"                    // Declares the TdxSplashFormManager class and related types
#include "dxReport.hpp"                      // Declares the TdxReport class

// Add the following linker directives to the corresponding CPP source file:
#pragma link "dxReport"                      // Required to use dxReport.hpp declarations
#if defined(_WIN64)  // Required to use dxBackend.ConnectionString.JSON.hpp declarations
  #pragma link "dxBackend.ConnectionString.JSON.o"
#else
  #pragma link "dxBackend.ConnectionString.JSON.obj"
#endif
// ...

void __fastcall TMyForm::cxButtonExportToPDFClick(TObject *Sender)
{
  TdxReport *AReport;
  TdxBackendInMemoryJSONConnection *AJSONDataConnection;
  TMemoryStream *AMemoryStream;

  // Define a table that consists of three columns ("id", "Region", and "Sales") and five data rows:
  UnicodeString AJSONData =

  "[{\"id\": 1, \"Region\": \"Asia\",          \"Sales\": 1.9576},"  // Row #1
   "{\"id\": 2, \"Region\": \"Australia\",     \"Sales\": 1.9576},"  // Row #2
   "{\"id\": 3, \"Region\": \"Europe\",        \"Sales\": 3.3579},"  // Row #3
   "{\"id\": 4, \"Region\": \"North America\", \"Sales\": 3.7477},"  // Row #4
   "{\"id\": 5, \"Region\": \"South America\", \"Sales\": 1.8237}]"  // Row #5

  AJSONDataConnection = new TdxBackendInMemoryJSONConnection(this);  // Creates a data connection
  try
  {
    AJSONDataConnection->Name = "JSONData";        // Assigns a name to the created data connection
    AJSONDataConnection->SetJSONValue(AJSONData);  // Assigns the defined JSON data string
    AReport = new TdxReport(this);           // Creates a TdxReport container
    try
    {
      AReport->Layout->LoadFromFile("MyReportLayout.repx");  // Loads an REPX Report layout
      AReport->ReportName = "MyReport";                           // Defines a Report name
      AMemoryStream = new TMemoryStream();                        // Creates a memory stream
      TdxSplashFormManager::WaitForm()->Show(this);  // Displays a Wait Form before the export operation
      try
      {
        // Export Report content to the created memory stream in the PDF format
        AReport->ExportToPDF(AMemoryStream);
        AMemoryStream->SaveToFile(AReport->ReportName + ".pdf");  // Saves the resulting PDF file
      }
      __finally
      {
        delete AMemoryStream;       // Releases the memory stream
        TdxSplashFormManager::WaitForm()->Hide();    // Hides the Wait Form once the operation is complete
      }
    }
    __finally
    {
      delete AReport;            // Releases the TdxReport container
    }
  }
  __finally
  {
    delete AJSONDataConnection;     // Releases the data connection
  }
}

Related GitHub-Hosted Sample Projects

View Example: Store report layouts within text files View Example: Store report layouts in a database

Default Value

The ReportName property’s default value is an empty string.

The default ReportName property value indicates that the ShowDesigner procedure displays an empty template in the Report Designer dialog, even if the Layout property contains a non-empty template. Any subsequent saved changes made in the Report Designer dialog override both ReportName and Layout property values.

Layout Definition Name Properties in Other Components

TdxCustomReportControl.ReportName

Specifies the report name used as an identifier for the report template/layout definition.

TdxCustomDashboardControl.DashboardName

Specifies the name used as an identifier for the dashboard layout definition.

TdxDashboard.Name

Specifies the name used as an identifier for the dashboard layout definition.

Footnotes

1. Use the following links to navigate to corresponding topic descriptions:

   • TdxReport.GroupName
   • TdxCustomReportControl.GroupName
