TdxCustomDashboardControl.DashboardName Property

Specifies the name used as an identifier for the dashboard layout definition.

Declaration

property DashboardName: string read; write;

Property Value

Type	Description
string	The dashboard name (case-sensitive).

Remarks

The TdxDashboardControl component requires a specified dashboard name to manage dashboard layouts and generate/display content. Use the DashboardName property to associate a dashboard name with the layout definition specified using the Layout property.

Note

All TdxDashboard/TdxDashboardControl components that share the same dashboard name, are associated with the same layout definition. Any changes made in the Dashboard Designer are applied to all dashboard components with the same layout name.

In this topic…

• Dashboard Designer: End-User Functionality
• Related API Members
• Code Examples
  • Save Dashboard Layout to File on Every Change
  • Save Dashboard State to File in Response to User Changes
  • Related GitHub-Hosted Sample Projects
• Default Value

Dashboard Designer: End-User Functionality

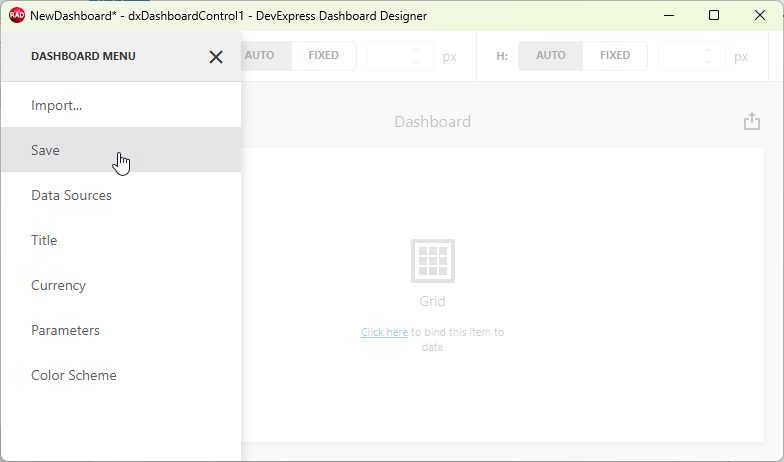

To save the current dashboard layout state during the current session, users can click the hamburger button in the Dashboard Designer dialog and select the Save option.

Dashboard Viewer and Dashboard Designer dialogs also display the DashboardName property value in the form caption. If the DashboardName property value is an empty string, the Dashboard Designer dialog assigns an automatically generated name ('NewDashboard').

Related API Members

The TdxDashboardControl component displays content only when both DashboardName and Layout properties are specified. To avoid redundant redraw operations, you can set the Active property to False during batch underlying data source changes. The inactive TdxDashboardControl component displays the DashboardName property value instead of content.

The ExportTo procedure returns a string (as the AFileName parameter) that consists of the DashboardName property value with the file name extension associated with the target export format.

Code Examples

Save Dashboard Layout to File on Every Change

The following code example saves the current Dashboard layout to a file in the XML format every time a user saves pending changes in the Dashboard Designer dialog:

Delphi

uses
  dxDashboard.Control;  // Declares the TdxDashboardControl class
// ...

procedure TMyForm.dxDashboardControl1LayoutChanged(ASender: TdxCustomDashboardControl);
begin
  ASender.Layout.SaveToFile(ASender.DashboardName + '.xml');
end;

C++

#include "dxDashboard.Control.hpp"  // Declares the TdxDashboardControl class

// Add the following linker directive to the corresponding CPP source file:
#pragma link "dxDashboard.Control"  // Required to use dxDashboard.Control.hpp declarations
// ...

void __fastcall TMyForm::dxDashboardControl1LayoutChanged(TdxCustomDashboardControl *ASender)
{
  ASender->Layout->SaveToFile(ASender->DashboardName + ".xml");
}

Save Dashboard State to File in Response to User Changes

The following code example saves the current dashboard user interaction state to a JSON file on every change:

Delphi

uses
  dxDashboard.Control;  // Declares the TdxDashboardControl class
// ...

procedure TMyForm.dxDashboardControl1StateChanged(ASender: TdxCustomDashboardControl);
begin
  ASender.State.SaveToFile(ASender.DashboardName + 'State.json');
end;

C++

#include "dxDashboard.Control.hpp"  // Declares the TdxDashboardControl class

// Add the following linker directive to the corresponding CPP source file:
#pragma link "dxDashboard.Control"  // Required to use dxDashboard.Control.hpp declarations
// ...

void __fastcall TMyForm::dxDashboardControl1StateChanged(TdxCustomDashboardControl *ASender)
{
  ASender->State->SaveToFile(ASender->DashboardName + "State.json");
}

Related GitHub-Hosted Sample Projects

View Example: Store Dashboard Layouts in a Database

Default Value

The DashboardName property’s default value is an empty string.

The default DashboardName property value indicates that the ShowDesigner procedure displays an empty dashboard layout, even if the Layout property contains a non-empty layout. Any subsequent saved changes made in the Dashboard Designer dialog update both DashboardName and Layout property values.

Layout Definition Name Properties in Other Components

TdxDashboard.Name

Specifies the name used as an identifier for the dashboard layout definition.

TdxReport.ReportName

Specifies the report name used as an identifier for the report template/layout definition.

TdxCustomReportControl.ReportName

Specifies the report name used as an identifier for the report template/layout definition.
