TdxReport.FilterString Property

Specifies filter criteria for report data.

Declaration

property FilterString: string read; write;

Property Value

Type	Description
string	The filter criteria string applied to report data.

Remarks

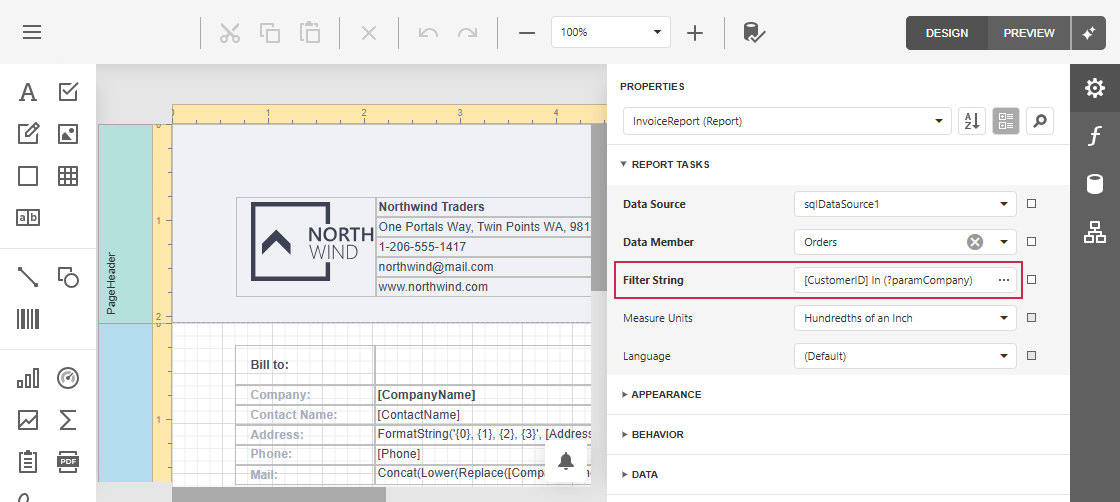

Use the FilterString property to define filter criteria for TdxReport component data sources. The FilterString property maps to the Filter String field in the Report Designer dialog:

Tip

If you need to assign a filter string in code, you can create the required string in the Report Designer dialog and copy the result.

Code Example: Load and Populate Report Templates from Datasets

This code example loads an XML-based report template (REPX) from a dataset, configures export settings, populates the template with data from another dataset, and displays the report preview:

Delphi

uses
  dxReport,  // Declares the TdxReport component and related types
  dxReport.ConnectionString.JSON.DB;  // Declares the TdxReportDataSetJSONConnection component
// ...

procedure TMyForm.Button1Click(Sender: TObject);
var
  ADataConnection: TdxReportDataSetJSONConnection;
  AReport: TdxReport;
  ALayoutStream: TStream;
begin
  ADataConnection := TdxReportDataSetJSONConnection.Create(Self);
  try
    ADataConnection.Name := 'DataSetJSONData';
    ADataConnection.DataSets.Add('Data', FDataSet);
    AReport := TdxReport.Create(Self);
    try
      AReport.ReportName := 'Report';
      ALayoutStream := FLayoutDataSet.CreateBlobStream(FLayoutDataSet.FieldByName('Layout'), bmRead);
      try
        AReport.Layout.LoadFromStream(ALayoutStream);
      finally
        ALayoutStream.Free;
      end;
      AReport.Language := 'fr-FR';
      AReport.ExportFormats := [TdxReportExportFormat.PDF,
        TdxReportExportFormat.RTF, TdxReportExportFormat.HTML];
      AReport.FilterString := 'id = 5';
      AReport.ShowViewer;
    finally
      AReport.Free;
    end;
  finally
    ADataConnection.Free;
  end;
end;

C++

#include "dxReport.hpp"  // Declares the TdxReport component and related types
#include "dxReport.ConnectionString.JSON.DB.hpp" // Declares the TdxReportDataSetJSONConnection component

// Add the following linker directives to the corresponding CPP source file:
#pragma link "dxReport"  // Required to use dxReport.hpp declarations
#pragma link "dxReport.ConnectionString.JSON.DB" //Required to use TdxReportDataSetJSONConnection declarations
// ...

void __fastcall TMyForm::Button1Click(TObject *Sender)
{
  TdxReportDataSetJSONConnection *ADataConnection;
  TdxReport *AReport;
  TStream *ALayoutStream;
  ADataConnection = new TdxReportDataSetJSONConnection(this);
  try
  {
    ADataConnection->Name = "DataSetJSONData";
    ADataConnection->DataSets->Add("Data", FDataSet);
    AReport = new TdxReport(this);
    try
    {
      AReport->ReportName = "Report";
      ALayoutStream = FLayoutDataSet->CreateBlobStream(FLayoutDataSet->FieldByName("Layout"), bmRead);
      try
      {
        AReport->Layout->LoadFromStream(ALayoutStream);
      }
      __finally
      {
        delete ALayoutStream;
      }
      AReport->Language = "fr-FR";
      AReport->ExportFormats = TdxReportExportFormats() << TdxReportExportFormat::PDF
        << TdxReportExportFormat::RTF << TdxReportExportFormat::HTML;
      AReport->FilterString = "id = 5";
      AReport->ShowViewer();
    }
    __finally
    {
      delete AReport;
    }
  }
  __finally
  {
    delete ADataConnection;
  }
}

Default Value

The FilterString property’s default value is an empty string.
