Built-in Toolbar Elements in Blazor Rich Text Editor

  • 3 minutes to read

The Rich Text Editor‘s menu bar (ribbon or toolbar) contains built-in tabs, groups, and items (commands). This topic lists all elements you can access and modify in CustomizeRibbon and CustomizeToolbar event handlers.

#Ribbon Elements

The built-in ribbon (DxRichEdit.BarMode is set to Ribbon) contains the following tabs:

Rich - Ribbon Tabs

The tables below list all groups and corresponding items (commands) for each built-in tab.

#File Tab

Group Name Item Names Ribbon View
FileCommon NewDocument
OpenDocument
SaveDocument
DownloadMenu
PrintDocument

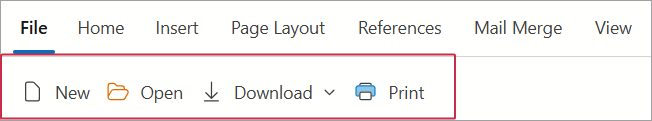

File Common Group

#Home Tab

Group Name Item Names Ribbon View

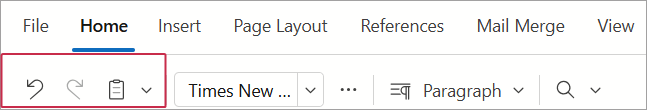

HomeUndoClipboard Undo
Redo
ClipboardMenu
Home Undo Group
HomeFont FontName
FontSize
FontBold
FontItalic
FontUnderline
FontColor
HighlightText
ClearFormatting
FontStrikeout
FontScriptMenu
ChangeCaseMenu

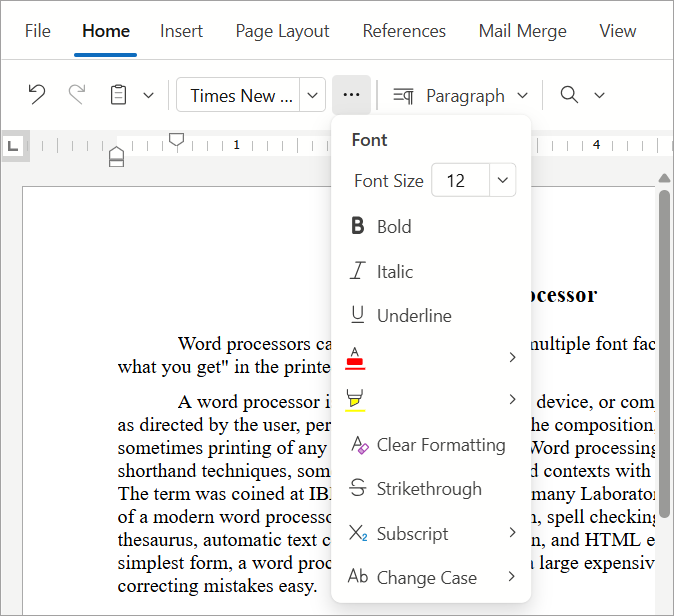

Home Font Group
HomeParagraph NumberingMenu
IndentMenu
ParagraphAlignmentMenu
LineSpacingMenu
ParagraphShading
ShowHiddenSymbols
ParagraphStyles

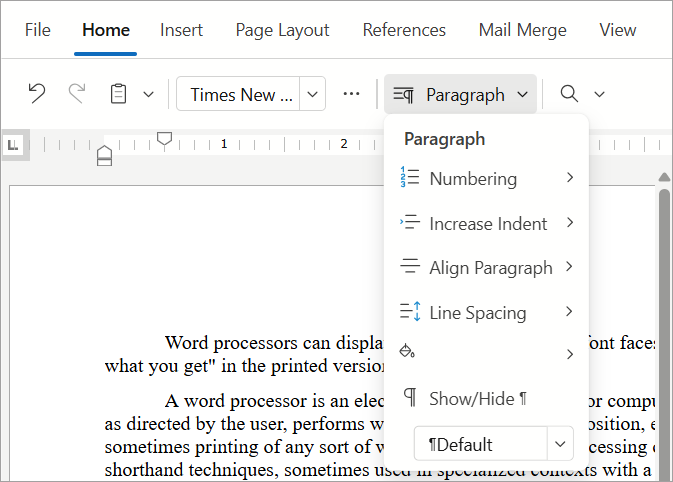

Home Paragraph Group

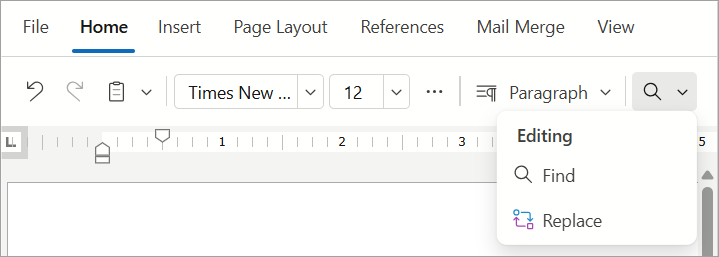

HomeEditing Find
Replace
Home Editing

#Insert Tab

Group Name Item Names Ribbon View

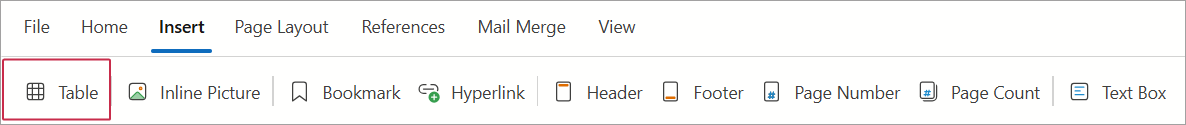

InsertTables ShowInsertTableDialog Insert Tables

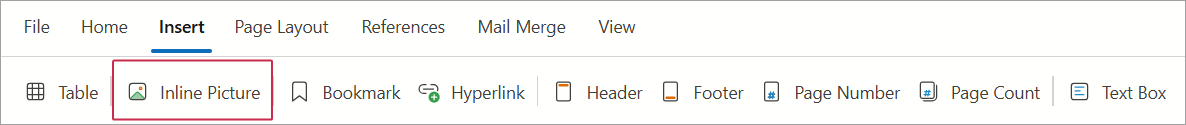

InsertIllustrations InsertInlinePicture Insert Picture
InsertLinks ShowBookmarkDialog
ShowHyperlinkDialog

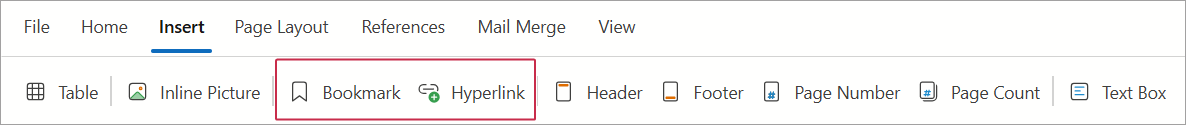

Insert Links
InsertHeaderAndFooter InsertPageHeader
InsertPageFooter
InsertPageNumber
InsertPageCount

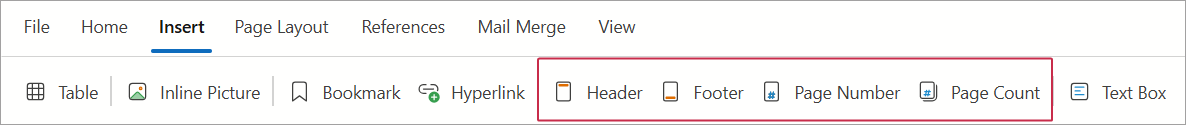

Insert Header and Footer Group

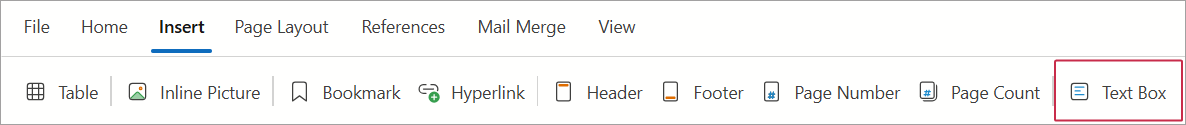

InsertText InsertTextBox Insert Text Group

#Page Layout Tab

Group Name Item Names Ribbon View

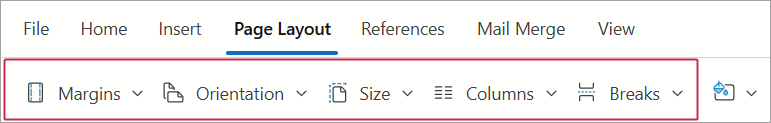

PageSetup PageMarginsMenu
PageOrientationMenu
PaperSizeMenu
PageColumnsMenu
PageBreaksMenu
Page Setup Group

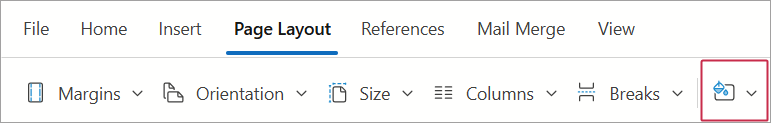

PageBackground PageColor Background Group

#References Tab

Group Name Item Names Ribbon View

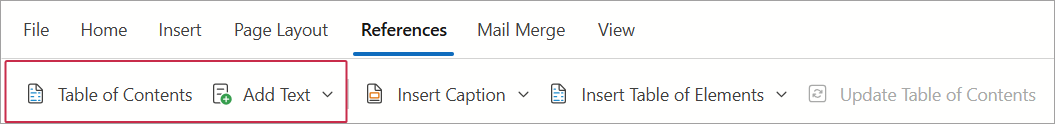

ReferencesTableOfContents InsertTableOfContentsField
AddParagraphsToTableOfContentsMenu
Table of Content Group

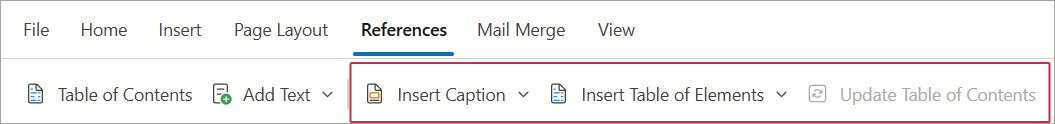

ReferencesCaptions InsertCaptionMenu
TableOfFiguresMenu
UpdateTableOfContents
Captions Group

#Mail Merge Tab

Group Name Item Names Ribbon View

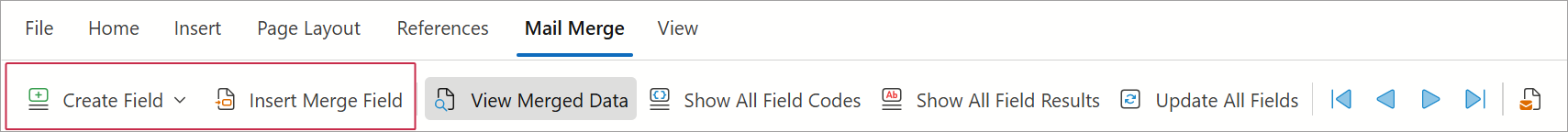

MailMergeInsertFields InsertFieldMenu
ShowInsertMergeFieldDialog
Insert Fields Group
MailMergeView ViewMergedData
ShowAllFieldCodes
ShowAllFieldResults
UpdateAllFields

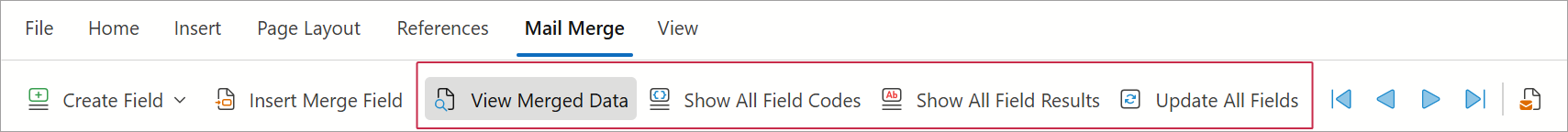

View Group
MailMergeCurrentRecord FirstRecord
PreviousRecord
NextRecord
LastRecord

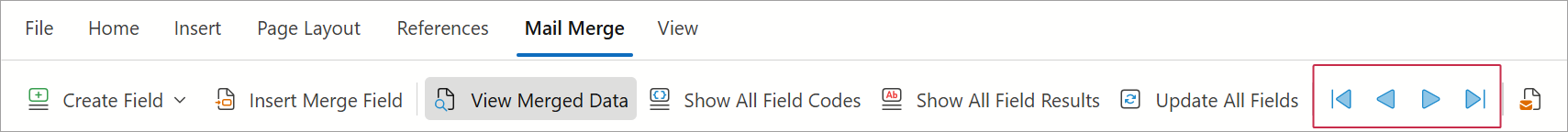

Current Record Group

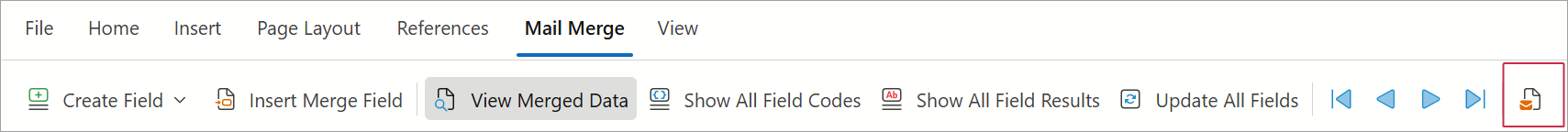

MailMergeFinish ShowMailMergeDialog Finish Group

#View Tab

Group Name Item Names Ribbon View
ViewDocumentViews SwitchToSimpleView
SwitchToPrintLayout

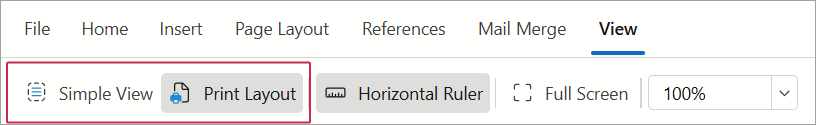

Document Views Group
ViewShow ShowHorizontalRuler View Show Group

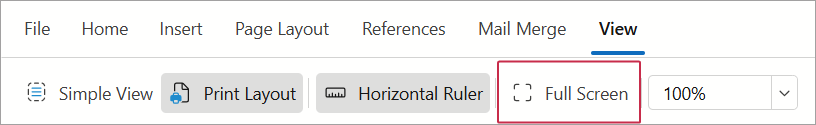

ViewFullScreen FullScreen Full Screen Group

#Format Tab

Group Name Item Names Ribbon View

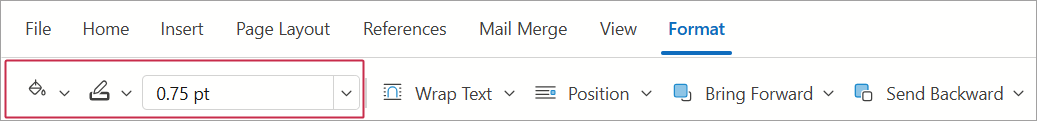

FormatShapeStyles FloatingObjectFillColor
FloatingObjectOutlineColor
FloatingObjectOutlineWidth
Shape Styles Group

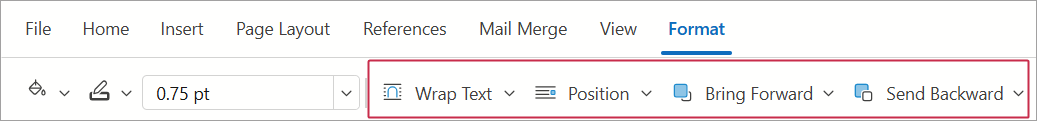

FormatArrange TextWrapMenu
PositionMenu
BringForwardMenu
SendBackwardMenu
Arrange Group

#Table Design Tab

Group Name Item Names Ribbon View
DesignTableStyleOptions TableOptionsMenu Table Style Options Group

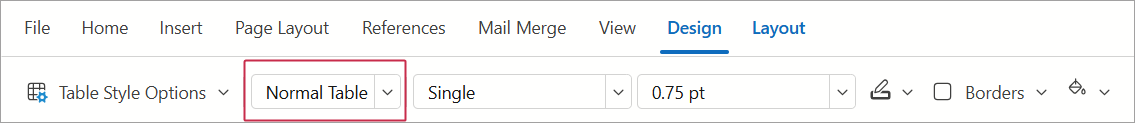

DesignTableStyles TableStyles Table Styles Group

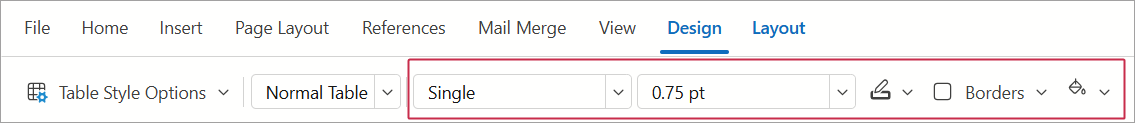

DesignBordersAndShadings TableBorderStyle
TableBorderWidth
TableBorderColor
TableBordersMenu
TableCellShading
Borders and Shadings Group

#Table Design Tab

Group Name Item Names Ribbon View

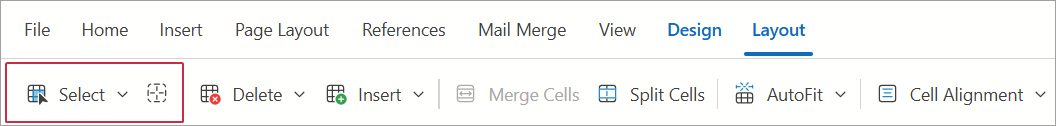

LayoutTable SelectTableElementsMenu
ShowTableGridlines
Table Group

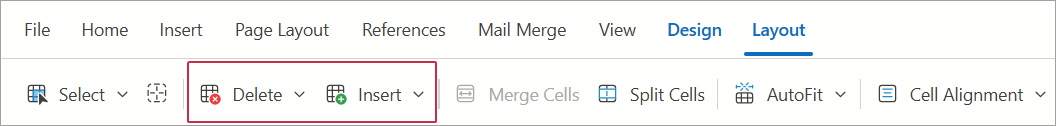

LayoutRowsAndColumns DeleteTableElementsMenu
InsertTableElementsMenu
Rows and Columns Group
LayoutMerge MergeTableCells
ShowSplitCellsDialog

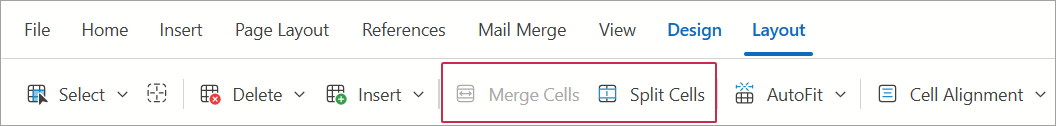

Merge Group

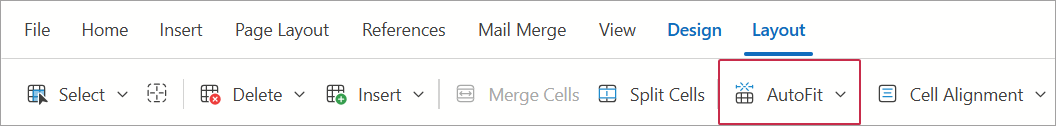

LayoutAutoFit TableAutoFitMenu Auto Fit Group

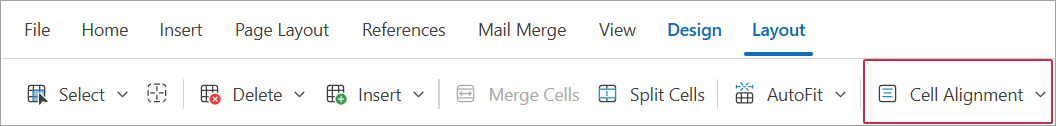

LayoutAlignment CellAlignmentMenu Alignment Group

#Toolbar Elements

The built-in toolbar (DxRichEdit.BarMode is set to Toolbar) consists of groups and items (commands). The table below lists all available elements.

Group Name Item Names Toolbar View
Undo Undo
Redo
Undo Group
File NewDocument
OpenDocument
SaveDocument
PrintDocument
File Group
Font FontName
FontSize
FontBold
FontItalic
FontColor
Font Group
Paragraph ParagraphAlignmentMenu
NumberingMenu
Paragraph Group
Picture InsertInlinePicture Picture Group
TextBox InsertTextBox Text Box Group
Table ShowInsertTableDialog Table Group
Field InsertFieldMenu Field Group

#Commands with Nested Items

The table below lists built-it toolbar or ribbon commands that contain nested items.

Command Name Nested Item Names Ribbon View
DownloadMenu DownloadDocx
DownloadRtf
DownloadTxt
DownloadHtml
Download Menu
ClipboardMenu Paste
CopySelection
CutSelection
Clipboard Menu
FontScriptMenu FontSubscript
FontSuperscript
FontScript Menu
ChangeCaseMenu SentenceCase
Uppercase
Lowercase
CapitalizeEachWord
ToggleCase
ChangeCase Menu
NumberingMenu BulletList
NumberedList
MultilevelList
Numbering Menu
IndentMenu IncreaseIndent
DecreaseIndent
Indent Menu
ParagraphAlignmentMenu ParagraphAlignmentLeft
ParagraphAlignmentCenter
ParagraphAlignmentRight
ParagraphAlignmentJustify
ParagraphAlignment Menu
LineSpacingMenu LineSpacingSingle
LineSpacingSesquialteral
LineSpacingDouble
AddSpacingBeforeParagraph
AddSpacingAfterParagraph
RemoveSpacingBeforeParagraph
RemoveSpacingAfterParagraph

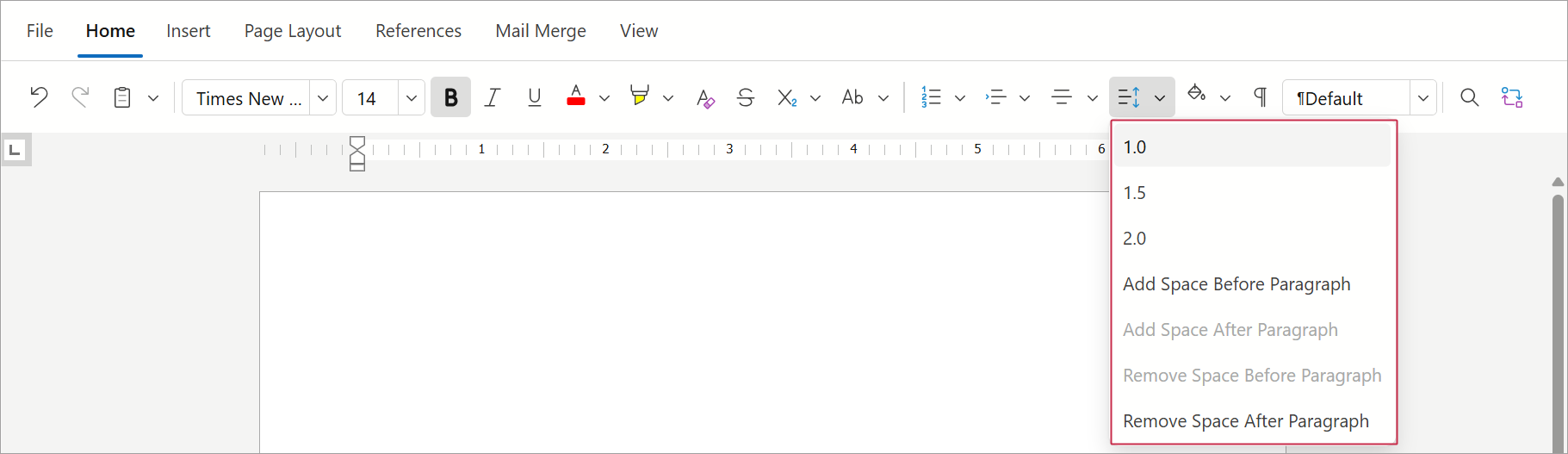

LineSpacing Menu
PageMarginsMenu MarginsNormal
MarginsNarrow
MarginsModerate
MarginsWide
ShowPageMarginsSetupDialog

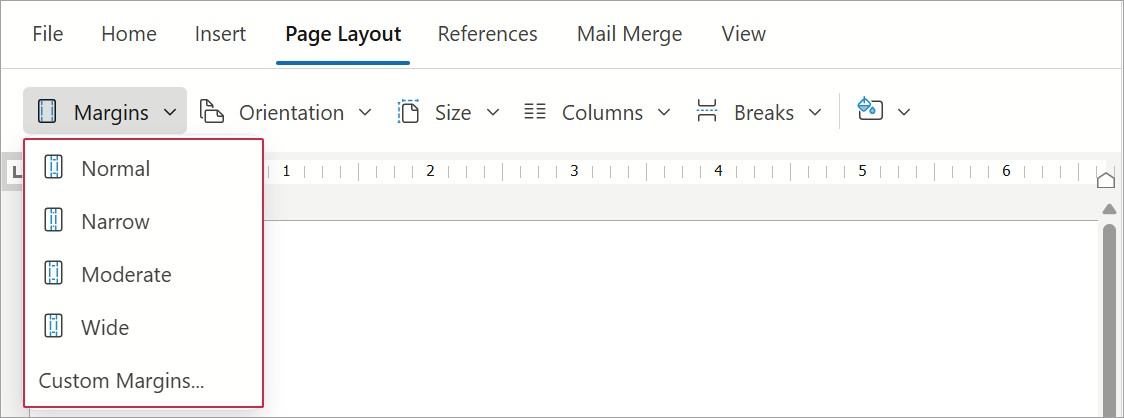

PageMargins Menu
PageOrientationMenu PageOrientationPortrait
PageOrientationLandscape
PageOrientation Menu
PaperSizeMenu PaperSizeLetter
PaperSizeLegal
PaperSizeFolio
PaperSizeA4
PaperSizeB5
PaperSizeExecutive
PaperSizeA5
PaperSizeA6
ShowPagePaperSetupDialog
PaperSize Menu
PageColumnsMenu OneColumn
TwoColumns
ThreeColumns
PageColumns Menu
PageBreaksMenu InsertPageBreak
InsertColumnBreak
InsertSectionBreakNextPage
InsertSectionBreakEvenPage
InsertSectionBreakOddPage
PageBreaks Menu
AddParagraphsToTableOfContentsMenu ParagraphBodyTextLevel
ParagraphHeading1Level
ParagraphHeading2Level
ParagraphHeading3Level
ParagraphHeading4Level
ParagraphHeading5Level
ParagraphHeading6Level
ParagraphHeading7Level
ParagraphHeading8Level
ParagraphHeading9Level
TableOfContents Manu
InsertCaptionMenu InsertFigureCaptionField
InsertTableCaptionField
InsertEquationCaptionField
InsertCaptions Menu
TableOfFiguresMenu InsertTableOfFiguresField
InsertTableOfTablesField
InsertTableOfEquationsField
TableOfFigures Menu
InsertFieldMenu InsertDateField
InsertTimeField
InsertPageField
InsertNumpagesField
InsertMergeField
InsertDocVariableField
InsertIfField
InsertField Menu
TextWrapMenu TextWrapInline
TextWrapSquare
TextWrapTight
TextWrapThrough
TextWrapTopAndBottom
TextWrapBehindText
TextWrapInFrontOfText
TextWrap Menu
PositionMenu PositionTopLeft
PositionTopCenter
PositionTopRight
PositionMiddleLeft
PositionMiddleCenter
PositionMiddleRight
PositionBottomLeft
PositionBottomCenter
PositionBottomRight
Position Menu
BringForwardMenu BringForward
BringToFront
BringInFrontOfText
BringForward Menu
SendBackwardMenu SendBackward
SendToBack
SendBehindText
SendBackward Menu
TableOptionsMenu HeaderRow
TotalRow
BandedRows
FirstColumn
LastColumn
BandedColumns
TableOptions Menu
TableBordersMenu TableCellBottomBorder
TableCellTopBorder
TableCellLeftBorder
TableCellRightBorder
TableCellNoBorder
TableCellAllBorders
TableCellOutsideBorders
TableCellInsideBorders
TableCellInsideHorizontalBorders
TableCellInsideVerticalBorders
ShowTableGridlines
TableBorders Menu
SelectTableElementsMenu SelectTableCell
SelectTableColumn
SelectTableRow
SelectTable
SelectTableElements Menu
DeleteTableElementsMenu ShowDeleteCellsDialog
DeleteTableColumns
DeleteTableRows
DeleteTable
DeleteTableElements Menu
InsertTableElementsMenu InsertTableRowAbove
InsertTableRowBelow
InsertTableColumnToTheLeft
InsertTableColumnToTheRight
InsertTableElements Menu
TableAutoFitMenu AutoFitContents
AutoFitWindow
FixedColumnWidth
TableAutoFit Menu
CellAlignmentMenu TableCellAlignTopLeft
TableCellAlignTopCenter
TableCellAlignTopRight
TableCellAlignMiddleLeft
TableCellAlignMiddleCenter
TableCellAlignMiddleRight
TableCellAlignBottomLeft
TableCellAlignBottomCenter
TableCellAlignBottomRight
CellAlignment Menu
