TdxDashboardUIExportFormat Enum

Enumerates dashboard format groups for export operations available in the UI.

Declaration

TdxDashboardUIExportFormat = (
    PDF,
    Excel,
);

Members

Name	Description
PDF	Portable Document Format (PDF).
Excel	Microsoft Excel® Spreadsheet Formats (XLSX, XLS, and CSV).
Image	All supported image formats (GIF, JPG, PNG, and SVG).

Remarks

The Dashboard Viewer dialog allows users to export the current dashboard or an individual dashboard item in any supported image or document format.

Export To Menu and Format Groups

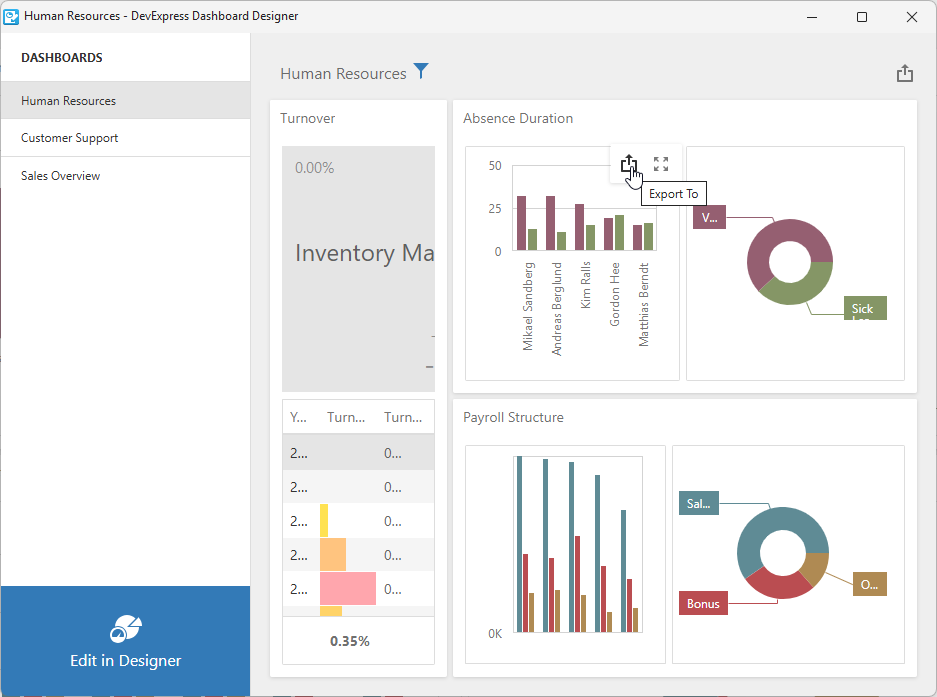

The TdxDashboardUIExportFormat type enumerates export format groups displayed when a user clicks an Export To button within the Dashboard Viewer dialog:

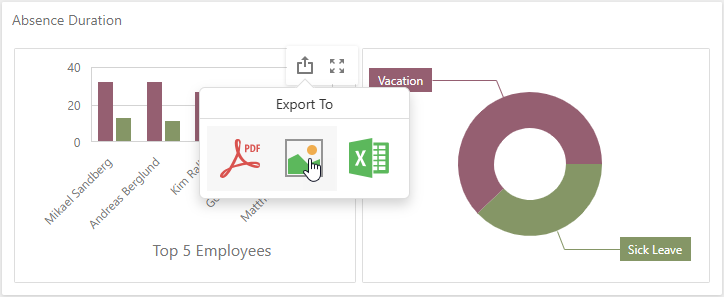

“Export To” Dialog

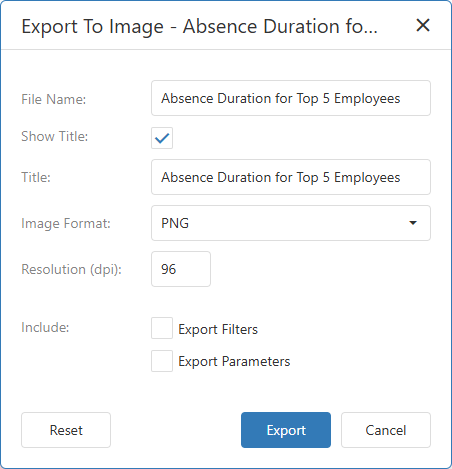

A click on a menu item displays the corresponding modal dialog designed to select the required format and associated export settings:

Available Options

You can use the TdxCustomDashboardControl.ExportFormats property to specify export format groups available to users.

Note

TdxDashboardUIExportFormat is a scoped enumeration type. Use the type name together with a scope resolution token (. in Delphi or :: in C++Builder) followed by an enumeration value to refer to this value. For example, use TdxDashboardUIExportFormat.Image (in Delphi) or TdxDashboardUIExportFormat::Image (in C++Builder) to refer to the Image value in code.

Direct TdxDashboardUIExportFormat Type References

The following public APIs reference the TdxDashboardUIExportFormat type:

AllDashboardUIExportFormats

A set of flags that correspond to all export format groups available to users in the Dashboard Viewer dialog UI.

TdxDashboardUIExportFormats

A set of flags that correspond to export format groups available to users in the Dashboard Viewer dialog UI.
