VisualTimelineViewGroupBase.SelectionBarContainer Property

Gets or sets the information on the visual representation of the selection bar displayed in the Timeline View.

Namespace: DevExpress.Xpf.Scheduler.Drawing

Assembly: DevExpress.Xpf.Scheduler.v20.2.dll

Declaration

public VisualTimelineSelectionBar SelectionBarContainer { get; set; }
Public Property SelectionBarContainer As VisualTimelineSelectionBar

Property Value

Type Description
DevExpress.Xpf.Scheduler.Drawing.VisualTimelineSelectionBar

A DevExpress.Xpf.Scheduler.Drawing.VisualTimelineSelectionBar object.

Remarks

IMPORTANT

You are viewing documentation for the legacy WPF Scheduler control. If you're starting a new project, we strongly recommend that you use a new control declared in the DevExpress.Xpf.Scheduling namespace. If you decide to upgrade an existing project in order to switch to the updated scheduler control, see the Migration Guidelines document.

Use the SelectionBarContainer property to get or set information on the visual appearance of the selection bar's elements.

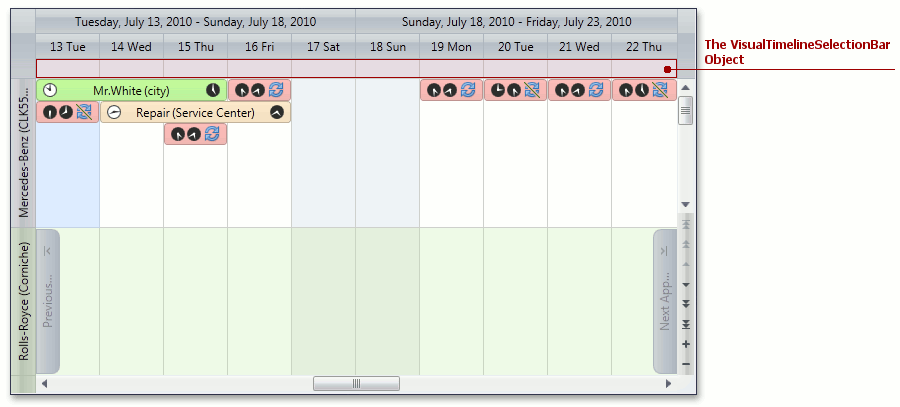

DXScheduler_VisualTimelineViewGroupBase_SelectionBarContainer

To obtain the value of the SelectionBarContainer property, you can use the SchedulerViewBase.VisualViewInfo property.

To set the SelectionBarContainer property value, handle the SchedulerControl.CustomizeVisualViewInfo event. Its parameter's CustomizeVisualViewInfoEventArgs.VisualViewInfo property returns the VisualTimelineViewGroupBase class descendant, if the Timeline View is currently active.
