VisualResourceAllDayArea Class

Provides information on the visual representation of an all-day area, displayed for a particular resource in the SchedulerControl.

Namespace: DevExpress.Xpf.Scheduler.Drawing

Assembly: DevExpress.Xpf.Scheduler.v20.1.dll

Declaration

public class VisualResourceAllDayArea :
    VisualHorizontalCellContainer
Public Class VisualResourceAllDayArea
    Inherits VisualHorizontalCellContainer

Remarks

IMPORTANT

You are viewing documentation for the legacy WPF Scheduler control. If you're starting a new project, we strongly recommend that you use a new control declared in the DevExpress.Xpf.Scheduling namespace. If you decide to upgrade an existing project in order to switch to the updated scheduler control, see the Migration Guidelines document.

In the Day or Work-Week view, a particular all-day area is displayed for each resource and specified by a VisualResourceAllDayArea object.

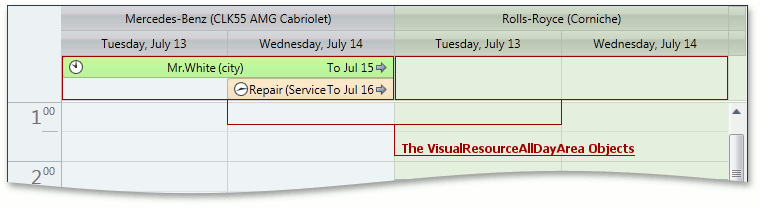

appointments are grouped by resources

DXScheduler_VisualDayViewGroupByResource_AllDayAreaContainers

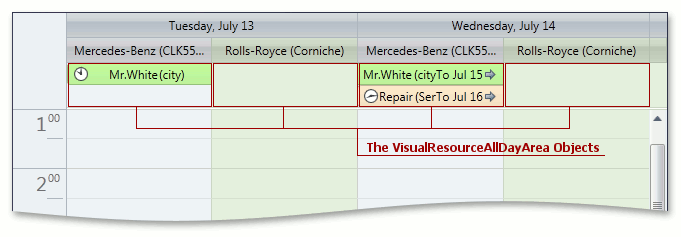

appointments are grouped by dates

DXScheduler_VisualDayViewGroupByDate_AllDayAreaContainers

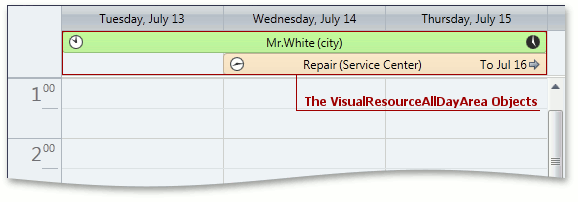

no grouping is applied to appointments

DXScheduler_VisualDayViewGroupByNone_VisualResourceAllDayArea

Inheritance

Object
DispatcherObject
DependencyObject
DevExpress.Xpf.Scheduler.Drawing.VisualCellContainer
DevExpress.Xpf.Scheduler.Drawing.VisualHorizontalCellContainer
VisualResourceAllDayArea
