ScaleBasedRangeControlClientOptions.DataDisplayType Property

Specifies how appointments contained in a SchedulerControl should be indicated in a RangeControl - using thumbnails or numbers.

Namespace: DevExpress.Xpf.Scheduler

Assembly: DevExpress.Xpf.Scheduler.v20.1.dll

Declaration

public RangeControlDataDisplayType DataDisplayType { get; set; }
Public Property DataDisplayType As RangeControlDataDisplayType

Property Value

Type Description
RangeControlDataDisplayType

A RangeControlDataDisplayType enumeration member.

Property Paths

You can access this nested property as listed below:

Library Object Type Path to DataDisplayType
WPF Controls SchedulerControl
.OptionsRangeControl.DataDisplayType
Silverlight Controls SchedulerControl
.OptionsRangeControl.DataDisplayType

Remarks

IMPORTANT

You are viewing documentation for the legacy WPF Scheduler control. If you're starting a new project, we strongly recommend that you use a new control declared in the DevExpress.Xpf.Scheduling namespace. If you decide to upgrade an existing project in order to switch to the updated scheduler control, see the Migration Guidelines document.

Wnen SchedulerControl and RangeControl are integrated, RangeControl displays information about appointments in its own manner. Each RangeControl's interval shows appointment thumbnails or the number of appointments for the corresponding interval. The information on appointments displayed in the RangeControl is changed on the fly when an end-user creates, edits or deletes appointments in the scheduler.

Use the DataDisplayType property to specify the appointment data display type.

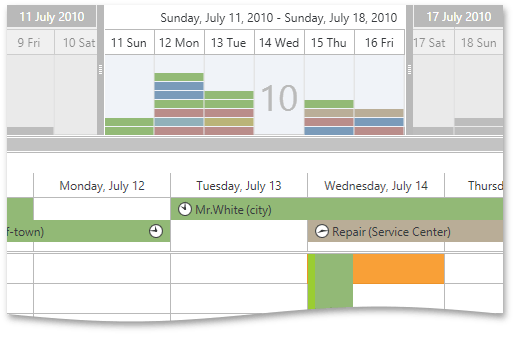

  • DataDisplayType=Auto

    Appointments are displayed as thumbnails if they can all fit into the corresponding interval area of the RangeControl, taking into account the RangeControl's current height. If there are more appointments than can be displayed within a particular interval of the RangeControl with thumbnails, this interval will contain a number of appointments.

    OptionsRangeControl_DataDisplayType_Auto

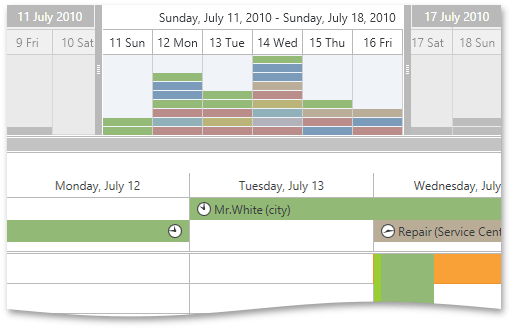

  • DataDisplayType=Thumbnail

    Appointment data is schematically displayed with appointment thumbnails. Each thumbnail color is specified by the label of the corresponding appointment.

    OptionsRangeControl_DataDisplayType_Thumbnail

  • DataDisplayType=Number

    Each RangeControl interval displays the number of appointments contained within the corresponding time interval in the SchedulerControl. Note that zeros are not displayed.

    OptionsRangeControl_DataDisplayType_Number

NOTE

When scheduler data is grouped by either dates or resources, the RangeControl shows appointment thumbnails or a number of appointments for all available resources (not only for visible resources).

Implements

DevExpress.XtraScheduler.IScaleBasedRangeControlClientOptions.DataDisplayType
