BarChartView.SeriesLineProperties Property

Gets or sets settings for connecting lines in a Stacked and Full-Stacked bar chart series.

Namespace: DevExpress.Docs.Office

Assembly: DevExpress.Docs.Core.v26.1.dll

Declaration

C#

public ChartElement SeriesLineProperties { get; set; }

VB.NET

Public Property SeriesLineProperties As ChartElement

Property Value

Type	Description
ChartElement	A ChartElement object that stores line style settings for series.

Example

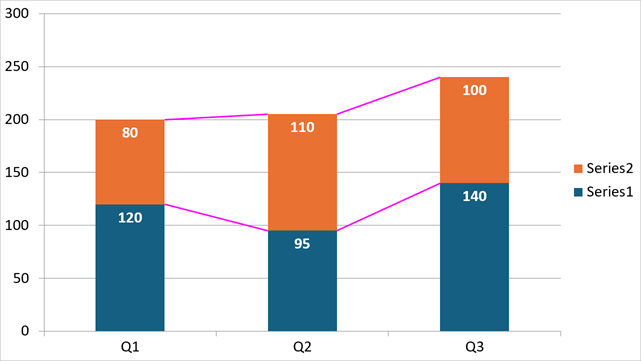

The following code snippet creates a stacked bar chart with two series:

C#

using DevExpress.Docs.Office;
using DevExpress.Docs.Presentation;
using System.Drawing;

namespace PresentationApiSample;
public class Program {
    public static async Task Main(string[] _) {

        // Create a presentation and add a blank slide.
        Presentation presentation = new Presentation();
        presentation.Slides.Clear();
        Slide slide = new Slide(SlideLayoutType.Blank);
        presentation.Slides.Add(slide);

        // Insert a chart that fills the slide.
        Chart chart = new Chart();
        chart.Width = presentation.SlideSize.Width;
        chart.Height = presentation.SlideSize.Height;
        slide.Shapes.Add(chart);

        chart.TextProperties = new TextProperties { FontSize = 24 };

        // Add the first bar series.
        BarSeries series1 = new BarSeries();
        series1.Arguments = new ChartStringData(new[] { "Q1", "Q2", "Q3" });
        series1.Values = new ChartNumericData(new double[] { 120, 95, 140 });
        chart.Series.Add(series1);

        // Add the second bar series.
        BarSeries series2 = new BarSeries();
        series2.Arguments = new ChartStringData(new[] { "Q1", "Q2", "Q3" });
        series2.Values = new ChartNumericData(new double[] { 80, 110, 100 });
        chart.Series.Add(series2);

        // Access the bar chart view and customize its appearance.
        BarChartView view = (BarChartView)chart.Views[0];

        view.BarGrouping = BarChartGrouping.Stacked;
        view.GapWidth = 150;
        view.Overlap = 100;

        // Configure line formatting for chart series.
        view.SeriesLineProperties = new ChartElement { OutlineStyle = new OutlineStyle { Fill = new SolidFill(Color.Magenta), Width = 10 } };
        view.DataLabels.ShowValue = true;
        view.DataLabels.LabelPosition = BarDataLabelPosition.InsideEnd;
        view.DataLabels.TextProperties = new TextProperties { Fill = new SolidFill(Color.White), Bold = true, FontSize = 24 };
    }
}

VB.NET

Imports DevExpress.Docs.Office
Imports DevExpress.Docs.Presentation
Imports System.Drawing

Namespace PresentationApiSample

    Public Class Program
        Public Shared Sub Main(args As String())

            ' Create a presentation and add a blank slide.
            Dim presentation As New Presentation()
            presentation.Slides.Clear()
            Dim slide As New Slide(SlideLayoutType.Blank)
            presentation.Slides.Add(slide)

            ' Insert a chart that fills the slide.
            Dim chart As New Chart()
            chart.Width = presentation.SlideSize.Width
            chart.Height = presentation.SlideSize.Height
            slide.Shapes.Add(chart)

            chart.TextProperties = New TextProperties With {.FontSize = 24}

            ' Add the first bar series.
            Dim series1 As New BarSeries()
            series1.Arguments = New ChartStringData(New String() {"Q1", "Q2", "Q3"})
            series1.Values = New ChartNumericData(New Double() {120, 95, 140})
            chart.Series.Add(series1)

            ' Add the second bar series.
            Dim series2 As New BarSeries()
            series2.Arguments = New ChartStringData(New String() {"Q1", "Q2", "Q3"})
            series2.Values = New ChartNumericData(New Double() {80, 110, 100})
            chart.Series.Add(series2)

            ' Access the bar chart view and customize its appearance.
            Dim view As BarChartView = CType(chart.Views(0), BarChartView)

            view.BarGrouping = BarChartGrouping.Stacked
            view.GapWidth = 150
            view.Overlap = 100

            ' Configure line formatting for chart series.
            view.SeriesLineProperties = New ChartElement() With {.OutlineStyle = New OutlineStyle() With {.Fill = New SolidFill(Color.Magenta), .Width = 10}}
            view.DataLabels.ShowValue = True
            view.DataLabels.LabelPosition = BarDataLabelPosition.InsideEnd
            view.DataLabels.TextProperties = New TextProperties() With {.Fill = New SolidFill(Color.White), .Bold = True, .FontSize = 24}
        End Sub
    End Class
End Namespace
