BubbleDataLabels Class

Specifies data label settings for bubble series points.

Namespace: DevExpress.Docs.Office

Assembly: DevExpress.Docs.Core.v26.1.dll

Declaration

C#

public class BubbleDataLabels :
    DataLabels

VB.NET

Public Class BubbleDataLabels
    Inherits DataLabels

Related API Members

The following members return BubbleDataLabels objects:

• BubbleChartView.DataLabels
• BubbleDataLabels.Clone()
• BubbleSeries.DataLabels

Remarks

For additional information about data labels, refer to the following help topic: Data Labels.

Example

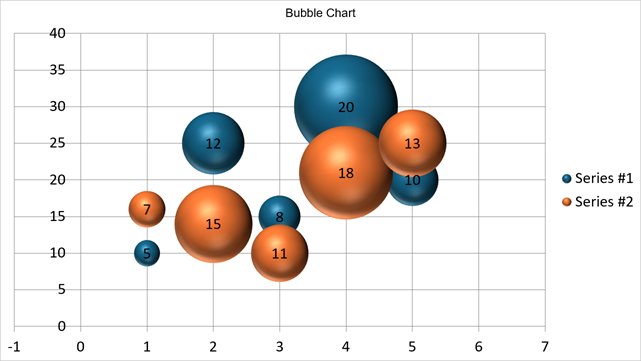

The following code snippet adds two bubble series to a presentation chart and configures bubble-specific settings:

C#

using DevExpress.Docs.Office;
using DevExpress.Docs.Presentation;

namespace PresentationApiSample;
public class Program {
    public static async Task Main(string[] _) {

        // Create a presentation and add a blank slide.
        Presentation presentation = new Presentation();
        presentation.Slides.Clear();
        Slide slide = new Slide(SlideLayoutType.Blank);
        presentation.Slides.Add(slide);

        // Insert a chart that fills the slide.
        Chart chart = new Chart();
        chart.Width = presentation.SlideSize.Width;
        chart.Height = presentation.SlideSize.Height;
        slide.Shapes.Add(chart);

        // Configure chart title.
        chart.Title = new ChartTitle(new TextArea("Bubble Chart"));
        chart.TextProperties = new TextProperties { FontSize = 24 };

        // Create the first bubble series.
        BubbleSeries series1 = new BubbleSeries();
        series1.Text = "Series #1";

        // Set argument data (X-axis values).
        series1.Arguments = new ChartNumericData(new double[] { 1, 2, 3, 4, 5 });

        // Set value data (Y-axis values).
        series1.Values = new ChartNumericData(new double[] { 10, 25, 15, 30, 20 });

        // Set bubble size data (determines the size of each bubble).
        series1.BubbleSize = new ChartNumericData(new double[] { 5, 12, 8, 20, 10 });

        // Configure data labels.
        series1.DataLabels.ShowBubbleSize = true;
        series1.DataLabels.LabelPosition = BubbleDataLabelPosition.Center;

        chart.Series.Add(series1);

        // Create the second bubble series.
        BubbleSeries series2 = new BubbleSeries();
        series2.Text = "Series #2";

        // Set argument data (X-axis values).
        series2.Arguments = new ChartNumericData(new double[] { 1, 2, 3, 4, 5 });

        // Set value data (Y-axis values).
        series2.Values = new ChartNumericData(new double[] { 16, 14, 10, 21, 25 });

        // Set bubble size data (determines the size of each bubble).
        series2.BubbleSize = new ChartNumericData(new double[] { 7, 15, 11, 18, 13 });

        // Configure data labels.
        series2.DataLabels.ShowBubbleSize = true;
        series2.DataLabels.LabelPosition = BubbleDataLabelPosition.Center;

        chart.Series.Add(series2);

        // Access the bubble chart view and configure bubble settings.
        BubbleChartView view = (BubbleChartView)chart.Views[0];
        view.BubbleScale = 150;
        view.ShowNegativeBubbles = false;
        view.DisplayBubblesAs3D = true;
        view.SizeRepresentation = BubbleSizeRepresentation.Width;

        // Save the presentation to a file or export it.
        // ...
    }
}

VB.NET

Imports DevExpress.Docs.Office
Imports DevExpress.Docs.Presentation

Namespace PresentationApiSample
    Public Class Program
        Public Shared Sub Main(args As String())

            ' Create a presentation and add a blank slide.
            Dim presentation As New Presentation()
            presentation.Slides.Clear()
            Dim slide As New Slide(SlideLayoutType.Blank)
            presentation.Slides.Add(slide)

            ' Insert a chart that fills the slide.
            Dim chart As New Chart()
            chart.Width = presentation.SlideSize.Width
            chart.Height = presentation.SlideSize.Height
            slide.Shapes.Add(chart)

            ' Configure chart title.
            chart.Title = New ChartTitle(New TextArea("Bubble Chart"))
            chart.TextProperties = New TextProperties With {.FontSize = 24}

            ' Create the first bubble series.
            Dim series1 As New BubbleSeries()
            series1.Text = "Series #1"

            ' Set argument data (X-axis values).
            series1.Arguments = New ChartNumericData(New Double() {1, 2, 3, 4, 5})

            ' Set value data (Y-axis values).
            series1.Values = New ChartNumericData(New Double() {10, 25, 15, 30, 20})

            ' Set bubble size data (determines the size of each bubble).
            series1.BubbleSize = New ChartNumericData(New Double() {5, 12, 8, 20, 10})

            ' Display bubbles as 3D.
            series1.DisplayBubblesAs3D = True

            ' Configure data labels.
            series1.DataLabels.ShowBubbleSize = True
            series1.DataLabels.LabelPosition = BubbleDataLabelPosition.Center

            chart.Series.Add(series1)

            ' Create the second bubble series.
            Dim series2 As New BubbleSeries()
            series2.Text = "Series #2"

            ' Set argument data (X-axis values).
            series2.Arguments = New ChartNumericData(New Double() {1, 2, 3, 4, 5})

            ' Set value data (Y-axis values).
            series2.Values = New ChartNumericData(New Double() {16, 14, 10, 21, 25})

            ' Set bubble size data (determines the size of each bubble).
            series2.BubbleSize = New ChartNumericData(New Double() {7, 15, 11, 18, 13})

            ' Display bubbles as 3D.
            series2.DisplayBubblesAs3D = True

            ' Configure data labels.
            series2.DataLabels.ShowBubbleSize = True
            series2.DataLabels.LabelPosition = BubbleDataLabelPosition.Center

            chart.Series.Add(series2)

            ' Access the bubble chart view and configure bubble settings.
            Dim view As BubbleChartView = CType(chart.Views(0), BubbleChartView)
            view.BubbleScale = 150
            view.ShowNegativeBubbles = False
            view.DisplayBubblesAs3D = True
            view.SizeRepresentation = BubbleSizeRepresentation.Width

            ' Save the presentation to a file or export it.
            ' ...
        End Sub
    End Class
End Namespace

Implements

ICloneable

IDictionary<Int32, DataLabel>

ICollection<KeyValuePair<Int32, DataLabel>>

IEnumerable<KeyValuePair<Int32, DataLabel>>

IEnumerable

Inheritance

Object

OfficeObject

DataLabelBase

DataLabels

BubbleDataLabels
