ScatterSeries Class

Displays data as a scatter chart.

Namespace: DevExpress.Docs.Office

Assembly: DevExpress.Docs.Core.v26.1.dll

NuGet Package: DevExpress.Docs.Core

Declaration

C#

public class ScatterSeries :
    SeriesBase

VB.NET

Public Class ScatterSeries
    Inherits SeriesBase

Remarks

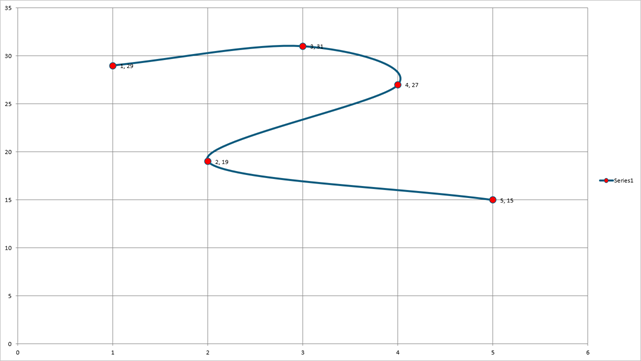

The following code snippet creates a scatter chart and adds it to a presentation:

C#

using DevExpress.Docs.Presentation;
using DevExpress.Docs.Office;
using System.Drawing;

namespace PresentationApiSample;

public class Program {
    public static async Task Main(string[] _) {
        // Create a presentation.
        Presentation presentation = new Presentation();

        // Reset the slide collection.
        presentation.Slides.Clear();

        // Add a blank slide.
        Slide slide = new Slide(SlideLayoutType.Blank);
        presentation.Slides.Add(slide);

        // Insert a chart on the slide.
        Chart chart = new Chart();
        slide.Shapes.Add(chart);

        // Set chart size to match the slide.
        chart.Width = presentation.SlideSize.Width;
        chart.Height = presentation.SlideSize.Height;

        // Populate X-axis values.
        chart.Data[0, "A1"].NumericValue = 1;
        chart.Data[0, "A2"].NumericValue = 3;
        chart.Data[0, "A3"].NumericValue = 4;
        chart.Data[0, "A4"].NumericValue = 2;
        chart.Data[0, "A5"].NumericValue = 5;

        // Populate Y-axis values.
        chart.Data[0, "B1"].NumericValue = 29;
        chart.Data[0, "B2"].NumericValue = 31;
        chart.Data[0, "B3"].NumericValue = 27;
        chart.Data[0, "B4"].NumericValue = 19;
        chart.Data[0, "B5"].NumericValue = 15;

        // Create a scatter series and bind it to worksheet ranges.
        ScatterSeries series = new ScatterSeries();
        series.Arguments = new ChartDataReference("A1", "A5");
        series.Values = new ChartDataReference("B1", "B5");
        chart.Series.Add(series);

        // Configure data labels.
        series.DataLabels.ShowValue = true;
        series.DataLabels.ShowCategoryName = true;

        // Set marker appearance.
        series.Marker = new Marker { Symbol = MarkerStyle.Circle, Size = 10, Fill = new SolidFill(Color.Red) };

        // Save the result to a file.
        var outputPath = @"D:\presentation.pptx";
        using FileStream outputStream = new(outputPath, FileMode.Create, FileAccess.Write, FileShare.None);
        presentation.SaveDocument(outputStream);
    }
}

VB.NET

Imports DevExpress.Docs.Presentation
Imports DevExpress.Docs.Office
Imports System.Drawing
Imports System.IO
Imports System.Threading.Tasks

Namespace PresentationApiSample

    Public Class Program
        Public Shared Async Function Main(args As String()) As Task
            ' Create a presentation.
            Dim presentation As New Presentation()

            ' Reset the slide collection.
            presentation.Slides.Clear()

            ' Add a blank slide.
            Dim slide As New Slide(SlideLayoutType.Blank)
            presentation.Slides.Add(slide)

            ' Insert a chart on the slide.
            Dim chart As New Chart()
            slide.Shapes.Add(chart)

            ' Set chart size to match the slide.
            chart.Width = presentation.SlideSize.Width
            chart.Height = presentation.SlideSize.Height

            ' Populate X-axis values.
            chart.Data(0, "A1").NumericValue = 1
            chart.Data(0, "A2").NumericValue = 3
            chart.Data(0, "A3").NumericValue = 4
            chart.Data(0, "A4").NumericValue = 2
            chart.Data(0, "A5").NumericValue = 5

            ' Populate Y-axis values.
            chart.Data(0, "B1").NumericValue = 29
            chart.Data(0, "B2").NumericValue = 31
            chart.Data(0, "B3").NumericValue = 27
            chart.Data(0, "B4").NumericValue = 19
            chart.Data(0, "B5").NumericValue = 15

            ' Create a scatter series and bind it to worksheet ranges.
            Dim series As New ScatterSeries()
            series.Arguments = New ChartDataReference("A1", "A5")
            series.Values = New ChartDataReference("B1", "B5")
            chart.Series.Add(series)

            ' Configure data labels.
            series.DataLabels.ShowValue = True
            series.DataLabels.ShowCategoryName = True

            ' Set marker appearance.
            series.Marker = New Marker With {
                .Symbol = MarkerStyle.Circle,
                .Size = 10,
                .Fill = New SolidFill(Color.Red)
            }

            ' Save the result to a file.
            Dim outputPath = "D:\presentation.pptx"
            Using outputStream As New FileStream(outputPath, FileMode.Create, FileAccess.Write, FileShare.None)
                presentation.SaveDocument(outputStream)
            End Using
        End Function
    End Class
End Namespace

Implements

ICloneable

Inheritance

Object

OfficeObject

SeriesBase

ScatterSeries
