  • In-Memory Data Binding in Blazor Grid

    • 12 minutes to read

    You can bind the DevExpress Blazor Grid component directly to a data collection:

    1. Assign a C# field to the Data property.
    2. Populate this field with data in the OnInitialized/OnInitializedAsync lifecycle method. The following data types are supported:
    3. To display data within the Grid, declare DxGridDataColumn objects in the Columns tags.
    4. Use the DxGridDataColumn.FieldName property to assign data fields to columns. Note that each data column’s FieldName property value must be unique.

    The following code snippet binds the Grid to a weather forecast list:

    @inject WeatherForecastService ForecastService

    <DxGrid Data="@Data">
        <Columns>
            <DxGridDataColumn FieldName="Date" DisplayFormat="D" />
            <DxGridDataColumn FieldName="TemperatureC" Caption="@("Temp. (\x2103)")" Width="120px" />
            <DxGridDataColumn FieldName="TemperatureF" Caption="@("Temp. (\x2109)")" Width="120px" />
            <DxGridDataColumn FieldName="Forecast" />
            <DxGridDataColumn FieldName="CloudCover" />
        </Columns>
    </DxGrid>

    @code {
        object Data { get; set; }

        protected override async Task OnInitializedAsync() {
            Data = await ForecastService.GetForecastAsync();
        }
    }


    Blazor Grid Data Binding

    Run Demo: Grid - Data Binding Run Demo: Grid - Asynchronous Data Binding

    Limitations

    In this data binding mode, the Grid stores all data records in memory. All data processing operations, such as sorting, grouping, and filtering, are executed in the Blazor application. This increases memory consumption and can affect performance when the dataset is large.

    For large datasets, use a Server Mode or Queryable data source instead.

    Bind to a DataTable

    You can bind the Grid component to a DataTable object. Generate/obtain such an object and pass it to the Grid’s Data property:

    @using System.Data

    <DxGrid Data="@dataTable">
        <Columns>
            <DxGridDataColumn FieldName="Text" Caption="Text Value" />
            <DxGridDataColumn FieldName="Number" Caption="Numeric Value" />
            <DxGridDataColumn FieldName="Date" DisplayFormat="D" Caption="Date-Time Value" />
        </Columns>
    </DxGrid>

    @code {
        public DataTable dataTable;

        protected override void OnInitialized() {
            dataTable = GetDataTable();
        }
        DataTable GetDataTable() {
            var dataTable = new DataTable();
            dataTable.Columns.Add("Text", typeof(string));
            dataTable.Columns.Add("Number", typeof(int));
            dataTable.Columns.Add("Date", typeof(DateTime));
            for (int i = 0; i < 3; i++) {
                dataTable.Rows.Add(new object[] { $"Text {i}", i, DateTime.Now.AddDays(-i) });
            }
            return dataTable;
        }
    }


    Bind Blazor Grid to DataTable

    View Example: Bind to DataTable

    Bind to a Remote Dataset

    You can load data from a remote data source and assign it directly to the DxGrid.Data property. The following example uses Entity Framework Core to bind the Grid component to a database and enable data editing:

    @using Microsoft.EntityFrameworkCore
    @inject IDbContextFactory<NorthwindContext> NorthwindContextFactory
    @implements IDisposable

    <DxGrid Data="Data"
            EditMode="GridEditMode.EditRow"
            EditModelSaving="OnEditModelSaving"
            DataItemDeleting="OnDataItemDeleting"
            KeyFieldName="EmployeeId">
        <Columns>
            <DxGridCommandColumn />
            <DxGridDataColumn FieldName="FirstName" />
            <DxGridDataColumn FieldName="LastName" />
            <DxGridDataColumn FieldName="Title" />
            <DxGridDataColumn FieldName="HireDate" />
        </Columns>
    </DxGrid>

    @code {
        IEnumerable<Employee> Data { get; set; }
        NorthwindContext Northwind { get; set; }

        protected override async Task OnInitializedAsync() {
            Northwind = NorthwindContextFactory.CreateDbContext();
            Data = await Northwind.Employees.ToListAsync();
        }

        async Task OnEditModelSaving(GridEditModelSavingEventArgs e) {
            var editModel = (Employee)e.EditModel;
            // Apply changes to the data item
            if (!e.IsNew)
                e.CopyChangesToDataItem();
            else {
                editModel.EmployeeId = Data.Max(x => x.EmployeeId) + 1;
                await Northwind.AddAsync(editModel);
            }
            // Post changes to the database.
            await Northwind.SaveChangesAsync();
            // Reload the entire Grid.
            Data = await Northwind.Employees.ToListAsync();
        }

        async Task OnDataItemDeleting(GridDataItemDeletingEventArgs e) {
            // Re-query a data item from the database.
            var dataItem = Northwind.Employees.Find((e.DataItem as Employee).EmployeeId);
            if (dataItem != null) {
                // Remove the data item from the database.
                Northwind.Remove(dataItem);
                await Northwind.SaveChangesAsync();
                // Reload the entire Grid.
                Data = await Northwind.Employees.ToListAsync();
            }
        }

        public void Dispose() {
            Northwind?.Dispose();
        }
    }

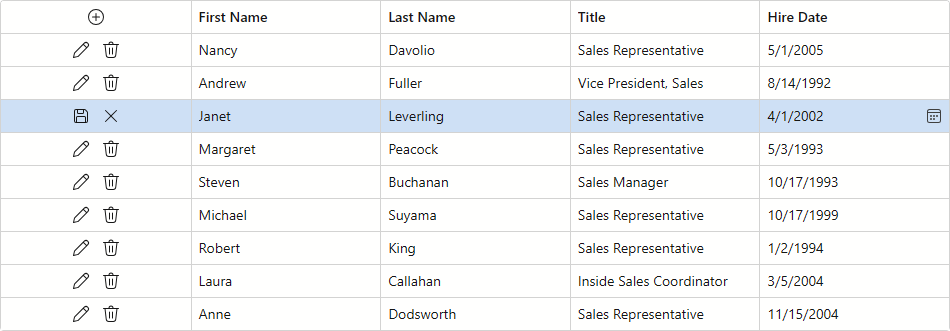

    Bind Blazor Grid to a SQLite Database

    View Example: Bind the Grid to Data with Entity Framework Core

    Bind to a Web API Service

    You can use an HttpClient to obtain data from a remote service. Save data to a collection and assign it to the Grid component.

    The following code snippet binds the Grid to a Web API service and allows users to create, modify, and delete records:

    @using System.Net.Http
    @using System.Net.Http.Json
    @inject HttpClient Http
    @inject WebServicePath wsp
    @using DataGridWithWebApiService.Data

    <DxGrid Data=@categories
            PagerVisible="false"
            EditModelSaving="OnEditModelSaving"
            DataItemDeleting="OnDataItemDeleting"
            EditMode="GridEditMode.EditRow">
        <Columns>
            <DxGridCommandColumn Width="150px" />
            <DxGridDataColumn FieldName=@nameof(Categories.CategoryId) />
            <DxGridDataColumn FieldName=@nameof(Categories.CategoryName) />
            <DxGridDataColumn FieldName=@nameof(Categories.Description) />
        </Columns>
    </DxGrid>

    @code {
        List<Categories>? categories;
        string path = "https://localhost:44340/api/";

        protected override async Task OnInitializedAsync() {
            categories = await Http.GetFromJsonAsync<List<Categories>>(path + "categories");
        }
        async Task OnEditModelSaving(GridEditModelSavingEventArgs e) {
            if (e.IsNew) {
                Categories newCategory = new Categories();
                SetNewValues(newCategory, (Categories)e.EditModel);
                await Http.PostAsJsonAsync<Categories>(path + "categories/", newCategory);
                categories = await Http.GetFromJsonAsync<List<Categories>>(path + "categories");
            }
            else {
                var dataItem = (Categories)e.DataItem;
                SetNewValues(dataItem, (Categories)e.EditModel);
                await Http.PutAsJsonAsync(path + "categories/" + dataItem.CategoryId, dataItem);
                categories = await Http.GetFromJsonAsync<List<Categories>>(path + "categories");
            }
        }
        async Task OnDataItemDeleting(GridDataItemDeletingEventArgs e) {
            await Http.DeleteAsync(path + "categories/" + ((Categories)e.DataItem).CategoryId);
            categories = await Http.GetFromJsonAsync<List<Categories>>(path + "categories");
        }
        private void SetNewValues(Categories dataItem, Categories newValues) {
            dataItem.CategoryName = newValues.CategoryName;
            dataItem.Description = newValues.Description;
        }
    }

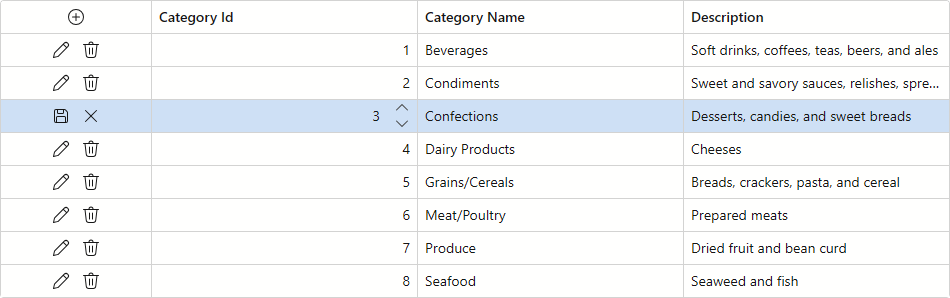

    Bind Blazor Grid to the Web API Service

    View Example: Bind to the Web API Service View Example: Display Error Messages from the Web API Service

    Bind to Observable Data

    You can bind the Grid to a data collection that implements the INotifyCollectionChanged or IBindingList interface. For instance, you can use standard ObservableCollection<T> or BindingList<T> objects.

    These objects notify the Grid about collection changes such as add, remove, and refresh operations. To notify the Grid when a record value changes, each collection item must also implement INotifyPropertyChanged. The Grid then updates its data automatically.

    Note

    After you bind a dynamic data collection to the Grid, the collection sends notifications after each change separately. When you make a sequence of modifications (for instance, in a for loop), the Grid is re-rendered after each iteration.

    The following sample binds the Grid to an ObservableCollection<T> and adds new items to this collection on button clicks. The INotifyCollectionChanged interface is not implemented because field values of existing items do not change.

    @using System.Collections.ObjectModel

    <DxButton Text="Add New Day"
              Click="(e) => AddNewForecast()" />

    <p/>
    <DxGrid Data="@WeatherForecastData">
        <Columns>
            <DxGridDataColumn FieldName="Date" DisplayFormat="D" />
            <DxGridDataColumn FieldName="TemperatureC" Caption="@("Temp. (\x2103)")" />
            <DxGridDataColumn FieldName="TemperatureF" Caption="@("Temp. (\x2109)")" />
        </Columns>
    </DxGrid>

    @code {
        int DayCount { get; set; } = 0;
        ObservableCollection<WeatherForecast> WeatherForecastData { get; set; }
        static readonly Random Rnd = new Random();

        protected override void OnInitialized() {
            WeatherForecastData = new ObservableCollection<WeatherForecast>();
            foreach (var date in Enumerable.Range(1, 5).Select(i => DateTime.Now.Date.AddDays(i))) {
                AddNewForecast();
            }
        }

        void AddNewForecast() {
            WeatherForecastData.Add(new WeatherForecast() {
                Date = DateTime.Now.Date.AddDays(++DayCount),
                TemperatureC = Rnd.Next(10, 20)
            });
        }
    }


    Blazor Grid Observable Collection

    Run Demo: Observable Data Collections

    Bind to an ExpandoObject

    You can bind the Blazor Grid component to an ExpandoObject collection and use user-defined schemas from external sources as data models (such as JSON files or NoSQL databases). This way, you can introduce CRUD (Create, Read, Update, Delete) operations when your data structure is not defined at compile time.

    Follow the steps below to bind the DevExpress Blazor Grid to a dynamic ExpandoObject list and activate CRUD operations:

    1. Create an ExpandoObject collection and populate it with initial data.
    2. Add DxGrid to the page and bind it to the ExpandoObject list.
    3. Implement a custom edit model in the CustomizeEditModel event handler.
    4. Handle the EditModelSaving event to retrieve data from the custom edit model and update the ExpandoObject.
    5. Handle the DataItemDeleting event to remove an item from the ExpandoObject collection.
    6. Add a custom CellEditTemplate for all data columns. In a template, bind an inline editor to the ExpandoObject using IDictionary<string, object>.

    The following example activates edit operations in a DxGrid bound to an ExpandoObject collection:

    @using Expando.Services
    @using System.Dynamic
    @inject WeatherForecastService ForecastService

    <DxGrid Data="@forecasts"
            CssClass="mw-1100"
            EditMode="GridEditMode.EditRow"
            EditModelSaving="Grid_EditModelSaving"
            DataItemDeleting="Grid_DataItemDeleting"
            CustomizeEditModel="Grid_CustomizeEditModel">
        <Columns>
            <DxGridCommandColumn />

            <DxGridDataColumn Caption="Date" FieldName="Date">
                <CellEditTemplate>
                    @{
                        var editItem = (IDictionary<string, object>)context.EditModel;
                        var date = (DateOnly)editItem["Date"];
                    }
                    <DxDateEdit Date="@(date)"
                                DateChanged="@((DateOnly newVal) => editItem["Date"] = newVal)"
                                DateExpression="@(() => date)">
                    </DxDateEdit>
                </CellEditTemplate>
            </DxGridDataColumn>
            <DxGridDataColumn Caption="Temperature °C" FieldName="TemperatureC">
                <CellEditTemplate>
                    @{
                        var editItem = (IDictionary<string, object>)context.EditModel;
                        var temperature = (int)editItem["TemperatureC"];
                    }
                    <DxSpinEdit Value="@temperature"
                                ValueChanged="@((int newVal) => editItem["TemperatureC"] = newVal)"
                                ValueExpression="@(() => temperature)">
                    </DxSpinEdit>
                </CellEditTemplate>
            </DxGridDataColumn>
            <DxGridDataColumn Caption="Summary" FieldName="Summary">
                <CellEditTemplate>
                    @{
                        var editItem = (IDictionary<string, object>)context.EditModel;
                        var summary = (string)editItem["Summary"];
                    }
                    <DxTextBox Text="@summary"
                                TextChanged="@((string newVal) => editItem["Summary"] = newVal)"
                                TextExpression="@(() => summary)">
                    </DxTextBox>
                </CellEditTemplate>
            </DxGridDataColumn>
        </Columns>
    </DxGrid>

    @code {
        private List<ExpandoObject>? forecasts;

        protected override async Task OnInitializedAsync() {
            forecasts = await ForecastService.GetForecastAsyncExpando(DateTime.Now);
        }

        private void Grid_CustomizeEditModel(GridCustomizeEditModelEventArgs e) {
            if (e.IsNew) {
                dynamic forecast = new ExpandoObject();
                forecast.Id = Guid.NewGuid();
                forecast.Date = DateOnly.FromDateTime(DateTime.Now.AddDays(1));
                forecast.TemperatureC = 0;
                forecast.Summary = "";
                e.EditModel = forecast;
            }
        }

        private async Task Grid_EditModelSaving(GridEditModelSavingEventArgs e) {
            if (e.IsNew) {
                forecasts.Add((ExpandoObject)e.EditModel);
            }
            else {
                dynamic editableForecast = (ExpandoObject)e.EditModel;
                dynamic originalForecast = forecasts
                    .Cast<dynamic>()
                    .First(s => (Guid)s.Id == (Guid)editableForecast.Id);
                originalForecast.Date = editableForecast.Date;
                originalForecast.TemperatureC = editableForecast.TemperatureC;
                originalForecast.Summary = editableForecast.Summary;
            }
        }

        private async Task Grid_DataItemDeleting(GridDataItemDeletingEventArgs e) {
            forecasts.Remove((ExpandoObject)e.DataItem);
        }
    }

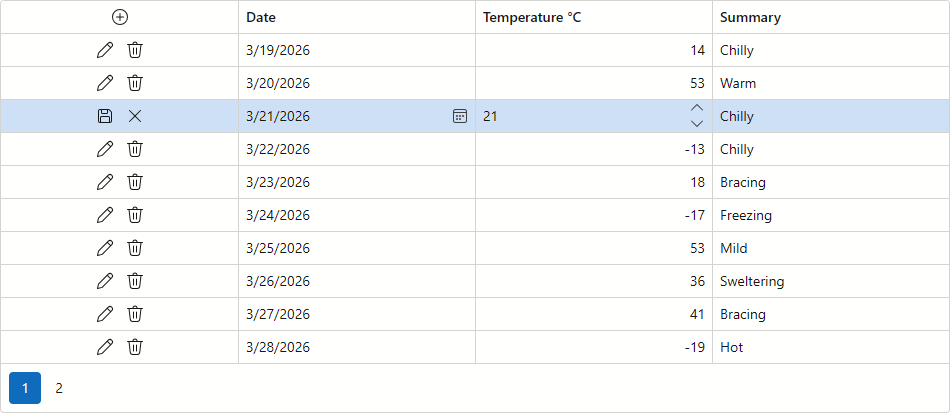

    Bind DevExpress Blazor Grid to ExpandoObject

    View Example: Bind to ExpandoObject
