Rows in Blazor Grid

8 minutes to read

The DevExpress Blazor Grid supports multiple row types:

Header Row — Displays column captions.
Filter Row — Allows users to filter Grid data.
New Item Row — Allows users to add a new row.
Group Row — Displays a header for data rows that belong to the same group.
Data Row — Displays data cells.
Detail Row — Displays custom content defined in the DetailRowTemplate.
Group Footer — Displays group summaries.
Footer — Displays total summaries.

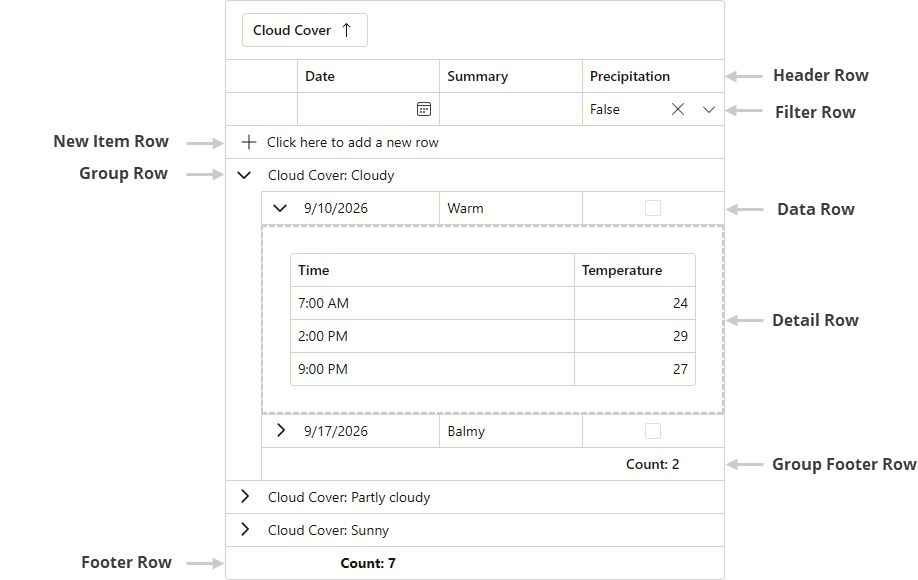

DevExpress Blazor Grid — Row Types

This topic describes row features, customization options, and row operations available in code.

Row Indexes

The Grid component assigns indexes to visible data and group rows to indicate row order. Indexes are zero-based and sequential across all Grid pages.

Row Indexes - All Pages

DxGrid reassigns row indexes each time users sort, filter, group data, or expand or collapse group rows. Filtered-out rows and rows in collapsed groups do not have indexes. In the following image, the Grid component does not assign indexes to data rows in the collapsed Partly cloudy group.

Row Indexes - Group Rows

Get a Row Index

You can obtain row indexes as follows:

Call the GetFocusedRowIndex() method to obtain the focused row’s index.
Call the GetStartRowVisibleIndex() method to obtain the index of the first row on the current page.
Within a template, use a *VisibleIndex context property to obtain the associated row’s index.
In an event handler, use a *VisibleIndex event argument to obtain the processed row’s index.
Use values from 0 to Grid.GetVisibleRowCount() - 1 to iterate through all visible rows sequentially.

Once you obtain a row index, use the following API to obtain information about the row or interact with it.

Note

DxGrid bound to an Instant Feedback Data Source or GridDevExtremeDataSource loads data asynchronously in small portions (instead of the entire dataset). Before you call a method that accepts a row index as a parameter, call the WaitForRemoteSourceRowLoadAsync(Int32) method to ensure that the specified data row is loaded.

Identify Rows

Pass a row’s index to the following methods to retrieve row data and determine its type and state:

GetRowLevel: Gets the nesting level of the processed row.
GetRowValue: Gets the value of the data source field in the specified row.
IsDetailRowExpanded: Indicates whether the specified detail row is expanded.
IsEditingRow: Returns whether the specified Grid row is being edited.
IsGroupRow: Specifies whether the specified row is a group row.
IsGroupRowExpanded: Specifies whether the specified group row is expanded.
IsRowFocused: Identifies whether the row with the specified visible index is focused.
IsRowSelected: Returns whether the specified row is selected.

Interact with Rows

Call the following methods to change row state in code:

CollapseDetailRow | ExpandDetailRow: Collapse/expand the specified detail row.
CollapseGroupRow | ExpandGroupRow: Collapse/expand the specified group row.
DeselectRow | SelectRow: Select/deselect the specified row.
DeselectRows | SelectRows: Select/deselect the specified rows.
MakeRowVisible | MakeCellVisible: Navigate to the specified row/cell.
SetFocusedRowIndex: Moves focus to the specified row.
ShowRowDeleteConfirmation: Displays the delete confirmation dialog for the specified row.
StartEditRowAsync: Starts editing the specified row.

Row Indexes — Code Example

The following code sample adds a new command to group row context menus: Expand First-Level Groups.

@using DevExpress.Images.Blazor
@inject WeatherForecastService ForecastService

<DxGrid Data="@Data"
        ShowGroupPanel="true"
        ContextMenus="@GridContextMenus.GroupRow"
        CustomizeContextMenu="CustomizeContextMenu">
    <Columns>
        <DxGridDataColumn FieldName="Date" DisplayFormat="D" />
        <DxGridDataColumn FieldName="TemperatureC" Width="150px" />
        <DxGridDataColumn FieldName="Forecast" GroupIndex="1" />
        <DxGridDataColumn FieldName="CloudCover" GroupIndex="0"/>
    </Columns>
</DxGrid>

@code {
    object Data { get; set; }

    protected override void OnInitialized() {
        Data = ForecastService.GetForecast();
    }
    void CustomizeContextMenu(GridCustomizeContextMenuEventArgs args) {
        if (args.Context is GridGroupRowCommandContext) {
            var item = args.Items.AddCustomItem(0, "Expand First-Level Groups",
                                                   () => ExpandFirstLevelGroups(args.Grid));
            item.IconUrl = @Icon.ArrowMaximizeVerticalDashed;
        }
    }
    static void ExpandFirstLevelGroups(IGrid grid) {
        grid.BeginUpdate();
        for (var i = grid.GetVisibleRowCount() - 1; i >= 0; i--) {
            if (grid.IsGroupRow(i) && grid.GetRowLevel(i) == 0 && !grid.IsGroupRowExpanded(i))
                grid.ExpandGroupRow(i);
        }
        grid.EndUpdate();
    }
}

Handle Row Clicks

The Blazor Grid component raises RowClick and RowDoubleClick events when users click or double-click data and group rows. Handle these events to respond to these actions. The following code example allows users to click group rows to expand/collapse them:

@inject WeatherForecastService ForecastService

<DxGrid Data="@Data" ShowGroupPanel="true" RowClick="OnRowClick">
    <Columns>
        <DxGridDataColumn FieldName="Date" DisplayFormat="D" />
        <DxGridDataColumn FieldName="TemperatureC" Width="150px" />
        <DxGridDataColumn FieldName="Forecast" GroupIndex="1" />
        <DxGridDataColumn FieldName="CloudCover" GroupIndex="0"/>
    </Columns>
</DxGrid>

@code {
    object Data { get; set; }

    protected override void OnInitialized() {
        Data = ForecastService.GetForecast();
    }
    void OnRowClick(GridRowClickEventArgs e) {
        if (e.Grid.IsGroupRow(e.VisibleIndex)) {
            e.Grid.BeginUpdate();
            if(e.Grid.IsGroupRowExpanded(e.VisibleIndex))
                e.Grid.CollapseGroupRow(e.VisibleIndex);
            else
                e.Grid.ExpandGroupRow(e.VisibleIndex);
            e.Grid.EndUpdate();
        }
    }
}

Row Context Menus

The DevExpress Blazor Grid allows you to display context menus with predefined and custom commands for the following rows:

Data rows
Header and footer rows
Group and group footer rows

Use the ContextMenus property to display contextual commands when users right-click Grid elements. Footer, group footer, and data row context menus do not include predefined commands. Handle the CustomizeContextMenu event to add custom commands for these rows.

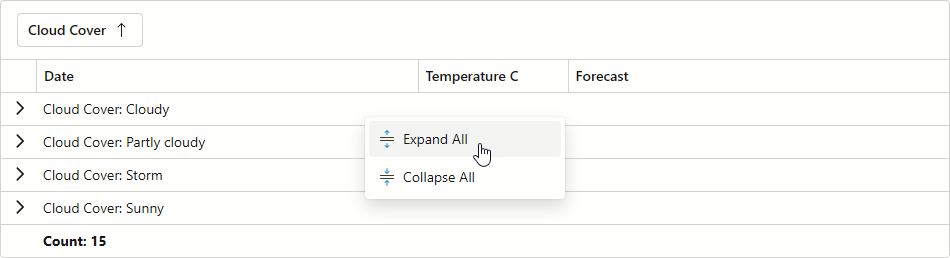

The following example enables context menus for Grid rows:

Read Tutorial: Context Menus Run Demo: Context Menu

@inject WeatherForecastService ForecastService

<DxGrid Data="@Data"
        ShowGroupPanel="true"
        ContextMenus="AvailableContextMenus"
        CustomizeContextMenu="CustomizeContextMenu">
    <Columns>
        <DxGridDataColumn FieldName="Date" DisplayFormat="D" />
        <DxGridDataColumn FieldName="TemperatureC" Width="150px" />
        <DxGridDataColumn FieldName="Forecast" />
        <DxGridDataColumn FieldName="CloudCover" GroupIndex="0"/>
    </Columns>
    <GroupSummary>
        <DxGridSummaryItem SummaryType="GridSummaryItemType.Max" FieldName="TemperatureC"
                                                                 FooterColumnName="TemperatureC" />
    </GroupSummary>
    <TotalSummary>
        <DxGridSummaryItem SummaryType="GridSummaryItemType.Count" FieldName="Date" />
    </TotalSummary>
</DxGrid>

@code {
    object Data { get; set; }
    GridContextMenus AvailableContextMenus = GridContextMenus.DataRow
                                             | GridContextMenus.Header  | GridContextMenus.Footer
                                             | GridContextMenus.GroupRow | GridContextMenus.GroupFooter;

    protected override void OnInitialized() {
        Data = ForecastService.GetForecast();
    }

    void CustomizeContextMenu(GridCustomizeContextMenuEventArgs args) {
        // Populates empty context menus with predefined commands
        if (args.Context is GridFooterCommandContext) {
            args.Items.Add(GridContextMenuDefaultItemNames.ShowColumnChooser);
            args.Items.Add(GridContextMenuDefaultItemNames.ShowFilterBuilder);
        }
        if (args.Context is GridGroupFooterCommandContext || args.Context is GridDataRowCommandContext) {
            args.Items.Add(GridContextMenuDefaultItemNames.ExpandAll);
            args.Items.Add(GridContextMenuDefaultItemNames.CollapseAll);
        }
    }
}

using System;

public class WeatherForecast {
    public DateTime Date { get; set; }
    public int TemperatureC { get; set; }
    public double TemperatureF => Math.Round((TemperatureC * 1.8 + 32), 2);
    public string Forecast { get; set; }
    public string CloudCover { get; set; }
    public bool Precipitation { get; set; }
}

    using System;
    using System.Collections.Generic;
    using System.Linq;
    using System.Threading;
    using System.Threading.Tasks;

    public class WeatherForecastService {
        private List<WeatherForecast> Forecast { get; set; }

        private static string[] CloudCover = new[] {
            "Sunny", "Partly cloudy", "Cloudy", "Storm"
        };

        Tuple<int, string>[] ConditionsForForecast = new Tuple<int, string>[] {
            Tuple.Create( 22 , "Hot"),
            Tuple.Create( 13 , "Warm"),
            Tuple.Create( 0 , "Cold"),
            Tuple.Create( -10 , "Freezing")
        };

        public WeatherForecastService() {
            Forecast = CreateForecast();
        }

        private List<WeatherForecast> CreateForecast() {
            var rng = new Random();
            DateTime startDate = DateTime.Now;
            return Enumerable.Range(1, 15).Select(index => {
                var temperatureC = rng.Next(-10, 30);
                return new WeatherForecast {
                    Date = startDate.AddDays(index),
                    TemperatureC = temperatureC,
                    CloudCover = CloudCover[rng.Next(0, 4)],
                    Precipitation = Convert.ToBoolean(rng.Next(0, 2)),
                    Forecast = ConditionsForForecast.First(c => c.Item1 <= temperatureC).Item2
                };
            }).ToList();
        }

        public IEnumerable<WeatherForecast> GetForecast() {
            return Forecast.ToArray();
        }
        // …
}

// …
builder.Services.AddSingleton<WeatherForecastService>();

Customize Rows

Highlight Rows on Hover

Set the HighlightRowOnHover to true to highlight a data row when users hover the mouse pointer over it:

DevExpress Blazor Grid - Highlight Row on Hover

@inject WeatherForecastService ForecastService

<DxGrid Data="@Data" HighlightRowOnHover="true">
    <Columns>
        <DxGridDataColumn FieldName="Date" DisplayFormat="D" />
        <DxGridDataColumn FieldName="TemperatureC" Width="150px" />
        <DxGridDataColumn FieldName="Forecast" />
        <DxGridDataColumn FieldName="CloudCover" />
    </Columns>
</DxGrid>

@code {
    object Data { get; set; }

    protected override void OnInitialized() {
        Data = ForecastService.GetForecast();
    }
}

Conditionally Customize Rows

Handle the CustomizeElement event to customize row appearance. The following code sample adds tooltips that identify row types:

@inject WeatherForecastService ForecastService

<DxGrid Data="@Data"
        ShowGroupPanel="true"
        ShowFilterRow="true"
        EditNewRowPosition="GridEditNewRowPosition.FixedOnTop"
        CustomizeElement="Grid_CustomizeElement" >
    <Columns>
        <DxGridDataColumn FieldName="Date" DisplayFormat="D" />
        <DxGridDataColumn FieldName="TemperatureC" Width="150px" />
        <DxGridDataColumn FieldName="Forecast" GroupIndex="1" />
        <DxGridDataColumn FieldName="CloudCover" GroupIndex="0"/>
    </Columns>
    <GroupSummary>
        <DxGridSummaryItem SummaryType="GridSummaryItemType.Max" FieldName="TemperatureC"
                           FooterColumnName="TemperatureC" />
    </GroupSummary>
    <TotalSummary>
        <DxGridSummaryItem SummaryType="GridSummaryItemType.Count" FieldName="Date" />
    </TotalSummary>
</DxGrid>

@code {
    object Data { get; set; }

    protected override void OnInitialized() {
        Data = ForecastService.GetForecast();
    }
    void Grid_CustomizeElement(GridCustomizeElementEventArgs e) {
        // Use e.CssClass property to customize an element
        e.Attributes["title"] = e.ElementType switch {
            GridElementType.HeaderRow => "This is a header row",
            GridElementType.DataRow => "This is a data row",
            GridElementType.DetailCell => "This is a detail row",
            GridElementType.GroupRow => "This is a group row",
            GridElementType.FilterRow => "This is a filter row",
            GridElementType.GroupFooterRow => "This is a group footer row",
            GridElementType.FooterRow => "This is a footer row",
            GridElementType.EditNewItemRow => "This is a new item row",
            _ => null
        };
    }
}

Alternating Row Style

You can use the CustomizeElement event to highlight alternating (odd) rows with a different style to improve Grid readability:

Run Demo: Alternating Row Style

DevExpress Blazor Grid - Alternating Row Style

Razor
CSS

@inject NwindDataService NwindDataService

<DxGrid @ref="Grid"
        Data="@Data"
        CustomizeElement="Grid_CustomizeElement"
        VirtualScrollingEnabled="true">
    <Columns>
        <DxGridDataColumn FieldName="CompanyName" MinWidth="100" />
        <DxGridDataColumn FieldName="City" Width="10%" />
        <DxGridDataColumn FieldName="Region" Width="10%" />
        <DxGridDataColumn FieldName="Country" Name="Country" Width="10%" />
        <DxGridDataColumn FieldName="UnitPrice" DisplayFormat="c" Width="10%" />
        <DxGridDataColumn FieldName="Quantity" MinWidth="80" Width="10%" />
        <DxGridDataColumn FieldName="Total"
                          Name="Total"
                          UnboundType="GridUnboundColumnType.Decimal"
                          UnboundExpression="[UnitPrice] * [Quantity]"
                          DisplayFormat="c"
                          MinWidth="100"
                          Width="15%" />
    </Columns>
</DxGrid>

@code {
    object Data { get; set; }
    IGrid Grid { get; set; }

    protected override async Task OnInitializedAsync() {
        var invoices = await NwindDataService.GetInvoicesAsync();
        var customers = await NwindDataService.GetCustomersAsync();
        Data = invoices.OrderBy(i => i.OrderDate).Join(customers, i => i.CustomerId, c => c.CustomerId, (i, c) => {
            return new {
                CompanyName = c.CompanyName,
                City = i.City,
                Region = i.Region,
                Country = i.Country,
                UnitPrice = i.UnitPrice,
                Quantity = i.Quantity
            };
        });
    }
    void Grid_CustomizeElement(GridCustomizeElementEventArgs e) {
        if(e.ElementType == GridElementType.DataRow && e.VisibleIndex % 2 == 1) {
            e.CssClass = "alt-item";
        }
        if(e.ElementType == GridElementType.HeaderCell) {
            e.CssClass = "header-bold";
        }
    }
}

.header-bold {
    background-color: #E6E6E6 !important;
}

.header-bold span {
    font-weight: 700;
    color: #161616;
}

.alt-item {
    --dxbl-grid-row-bg: var(--dxds-color-surface-neutral-subdued-rest);
}

Controls

FREE UTILITIES

Controls and Extensions

FREE UTILITIES

.NET

Java

Controls

FREE UTILITIES

Controls and Extensions

FREE UTILITIES

.NET

Java

Row Indexes

Get a Row Index

Identify Rows

Interact with Rows

Row Indexes — Code Example

Handle Row Clicks

Row Context Menus

Customize Rows

Highlight Rows on Hover

Conditionally Customize Rows

Alternating Row Style
