DrawingGuide Struct

An adjustable drawing guide.

Namespace: DevExpress.Docs.Presentation

Assembly: DevExpress.Docs.Presentation.v25.1.dll

NuGet Package: DevExpress.Docs.Presentation

Declaration

C#

public readonly struct DrawingGuide

VB.NET

Public Structure DrawingGuide

Remarks

Create a DrawingGuide instance with its constructor to specify its properties.

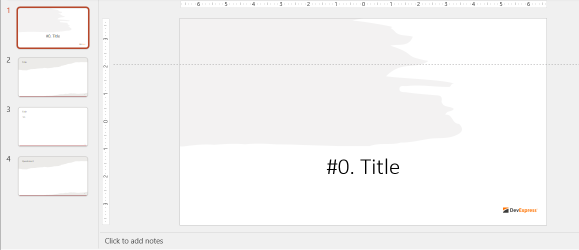

The following code snippet creates a horizontal drawing guide and adds it to the DrawingGuides collection:

C#

using (Presentation presentation = new Presentation("document.pptx")) {
    DrawingGuide guide1 = new DrawingGuide(Direction.Horizontal, 500);
    presentation.ViewProperties.SlideViewProperties.DrawingGuides.Add(guide1);
}

VB.NET

Using presentation As New Presentation("document.pptx")
    Dim guide1 As New DrawingGuide(Direction.Horizontal, 500)
    presentation.ViewProperties.SlideViewProperties.DrawingGuides.Add(guide1)
End Using
